Home > Products > Screen Frame Equipments > Automatic Emulsion Coating Machine

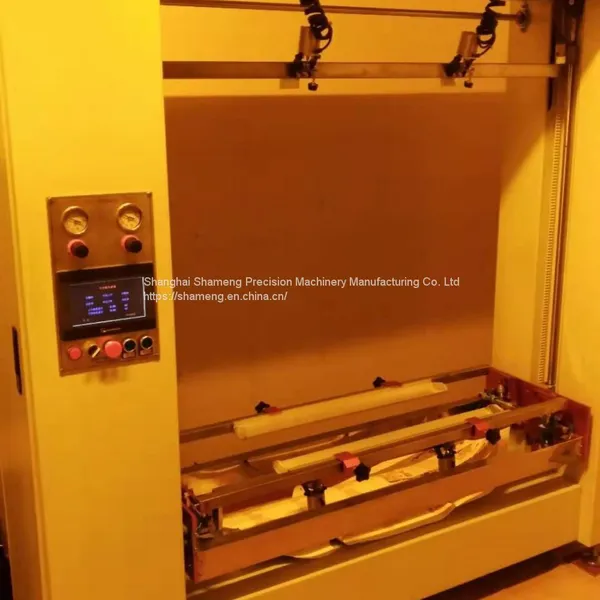

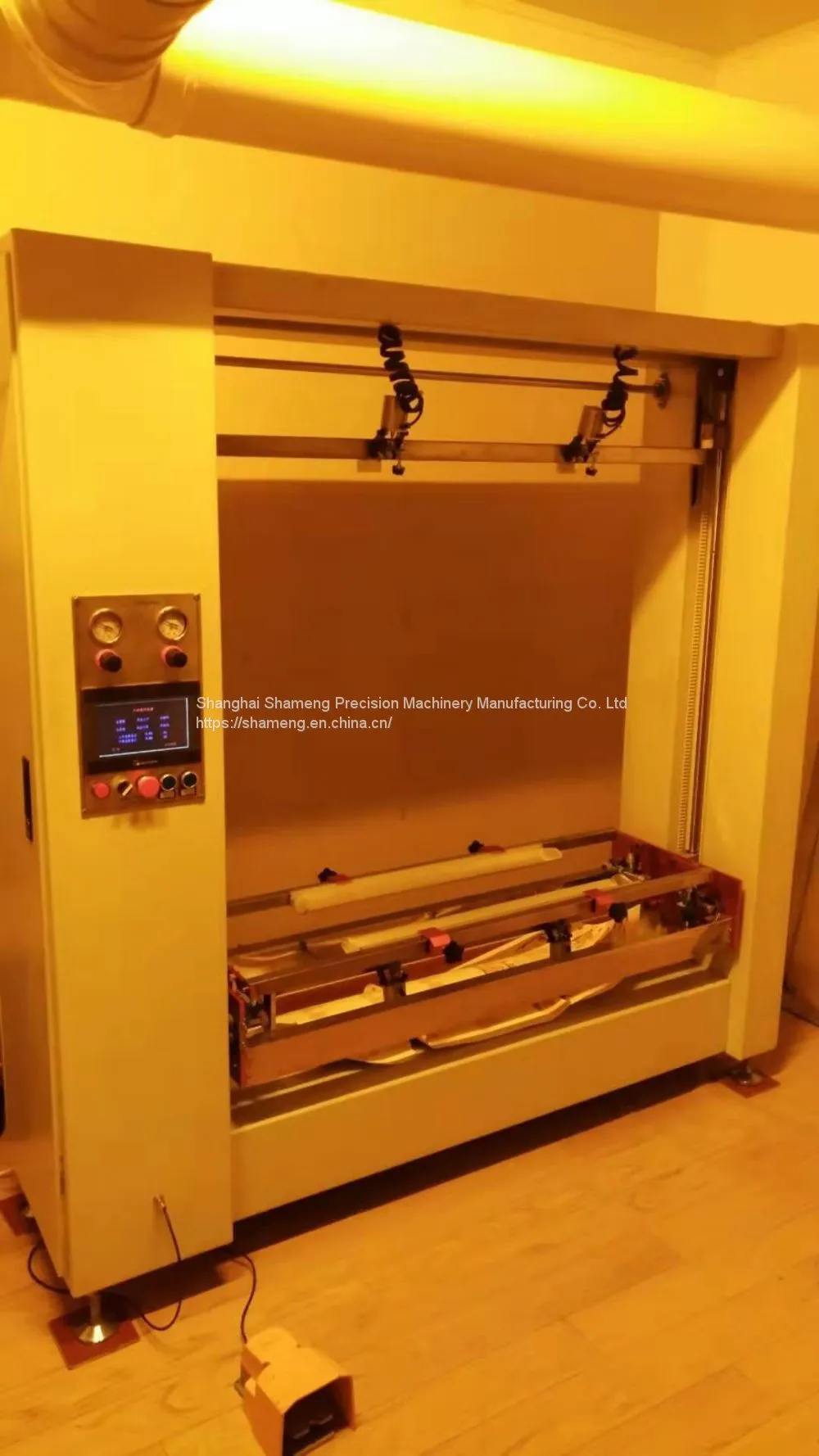

Automatic Emulsion Coating Machine
Negotiable
/ Set
1 Set(Min.Order)
- 80 Set / Sets per Month
- shanghai
- T/T L/C
- 45 days
You May Like
Product Details
| Place of Origin: | China | Condition: | New | Automatic Grade: | Automatic |
| Color & Page: | Other |
Product Description
Specification
SM-1213AE | SM-2436AE | |
Max.Frame Size(outer) | 1200 × 1300mm | 2400 × 3600mm |
Min.Frame Size(outer) | 800 × 800mm | 1000 × 1800mm |
Frame Fixing | Air Cylinder Clamp | Air Cylinder Clamp |
Coating Speed | 50 ~ 150mm/sec | 50 ~ 150mm/sec |
Air Source | 6kg/㎠ | 6kg/㎠ |
Elec. Source | 220V × 1ph × 1KW | 220V × 1ph × 1500W |
Weight | Approx.600kg | Approx.1500kg |
Dimension(W × D × H) | 1920 × 580 × 2100mm | 2600 × 1500 × 4500mm |
* Special specification is made to order.
* Appearance and specifications in this homepage are subject to change without notice.
Characteristic
• Using an imported motor enables to maintain low vibration and constant speed.
• Controlling speed of the bucket at a constant level is available.
• Special pressure device enables precise application with a constant thickness.
• Setting the number and speed of application by the touch panel.
• Low vibration thanks to the rail of special steel material.
Option • Controlling speed of the bucket at a constant level is available.
• Special pressure device enables precise application with a constant thickness.
• Setting the number and speed of application by the touch panel.
• Low vibration thanks to the rail of special steel material.
1. TOUCH PANEL
