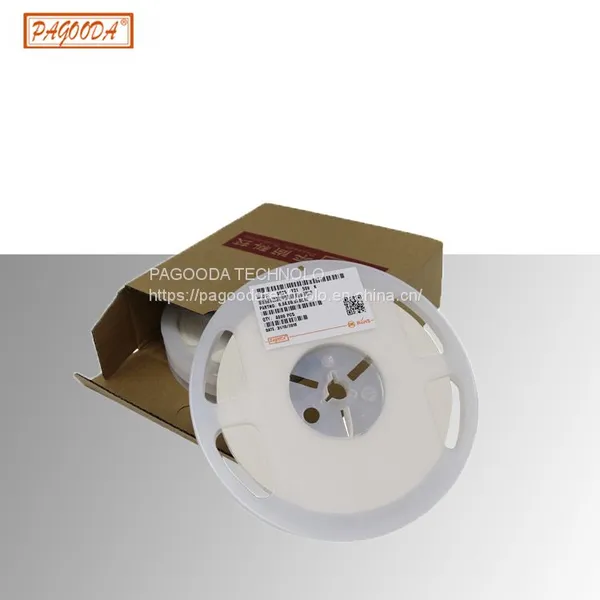

Wholesale high-tech quality manufacturers sell a full range of precision chip resistors

Detailed description of precision chip resistors

Series: 0805

Resistance: 0R—500M 0Ω—22MΩ full range

Power: 1/20W—1W

Deviation: D=±0.5%, B=±0.1%

Product features of precision chip resistors

1. Resistance error is ±0.5%, temperature coefficient is ±50ppm/℃;

2. Small size and light weight;

3. Adapt to reflow soldering and wave soldering;

4. Stable electrical performance and high reliability;

5. The assembly cost is low, and it is matched with the automatic mounting equipment;

6. High mechanical strength and superior high-frequency characteristics;

7. Comply with ROHS directive requirements.

8. Application areas include handheld products, computer products, industrial and medical instruments, etc.

Product parameters and characteristics of Pingshang Technology precision chip resistors

Inch (in) Metric (mm) Resistance Voltage Rated Power

0201 0603 0-47M 25V 1/20W

0402 1005 0-47M 50V 1/16W

0603 1608 0-47M 50V 1/16W, 1/10W

0805 2012 0-47M 150V 1/10W, 1/8W

1206 3216 0-47M 200V 1/8W, 1/4W

1210 3225 0-47M 200V 1/4W, 1/3W

1812 4832 0-47M 200V 1/2W

2010 5025 0-47M 200V 1/2W, 3/4W

2512 6432 0-47M 200V 1W

Welcome friends who are interested to consult online

Phone: +86 13622678159

WeChat: pskj13622678159
