Fiber optic LED light engine

Focus on fiber optic LED light engine R & D, production and sales

Applied in optical fiber conduction of lighting, our independent R & D of light screen coupling system, for the first time meets the requirements of lighting level at the end of conduction of lighting, which achieves the middle and far distance efficient optical fiber transmission of visible light and enables safe and healthy lighting.

Voice control high brightness fiber optic LED light engine

Core technology:

1. Greatly improved the coupling efficiency between the optical fibers and LED light engine

2. Completely solve the problem of fiber burning

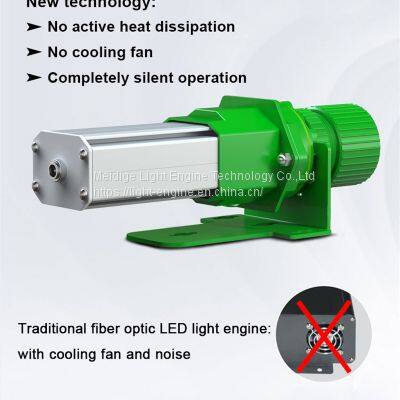

3. Completely silent because of no active heat dissipation

4. Longer distance of light transmission

5. Meets the lighting requirements

The technology can be used in three major sections:

1. Optical fiber lighting → LED light engine

2. Conduction of lighting → Fiber optic conducted lighting system

3. Medical field → Medical cold light source (optical fiber healthy eye protection lamp)

The tested coupling efficiency reached: 82.5%

Advantages:

1. Light coupling efficiency > 80%, high efficiency

2. Much lower energy consumption

2. Much Lower heat is generated during operation, no need for heat dissipation, which completely solved the problem of fiber burning, and therefore has high level of water resistance.

3. Realized middle and long distance transmission of conduction of lighting

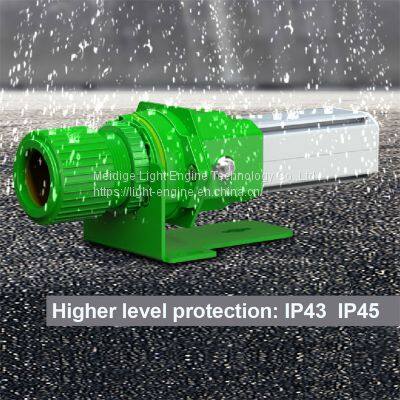

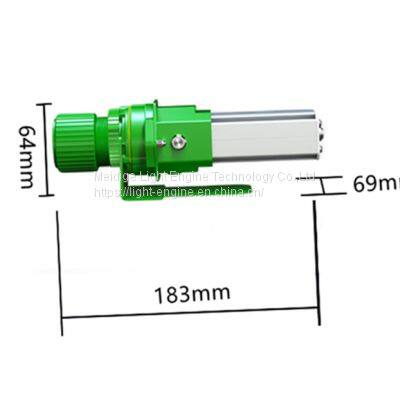

4. The product is small in size, light in weight, easy to hide, easy to install, waterproof and high in self-protection grade

5. Completely silent

Application scenarios:

Fiber tree, Christmas tree, fiber optic star ceiling, disorderly grass starry sky top, fiber curtain, modeling lamp, fiber chandelier, fiber network, fiber tracing, outline atmosphere lamp, car starry sky top, outdoor grass lighting, fish tank lighting, green plant lighting
