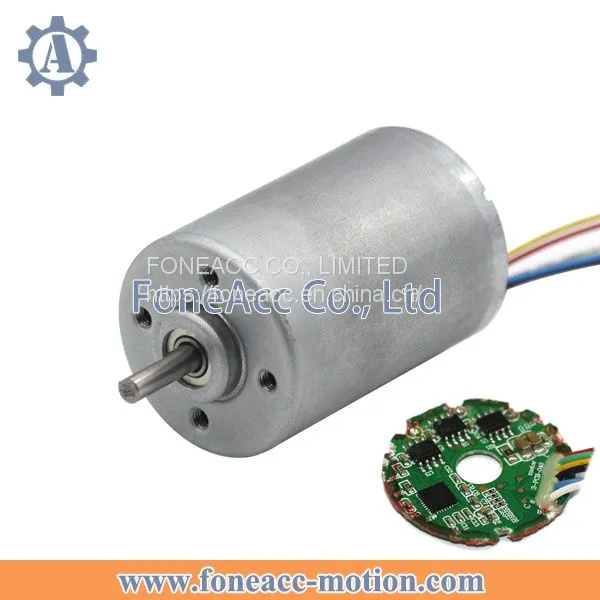

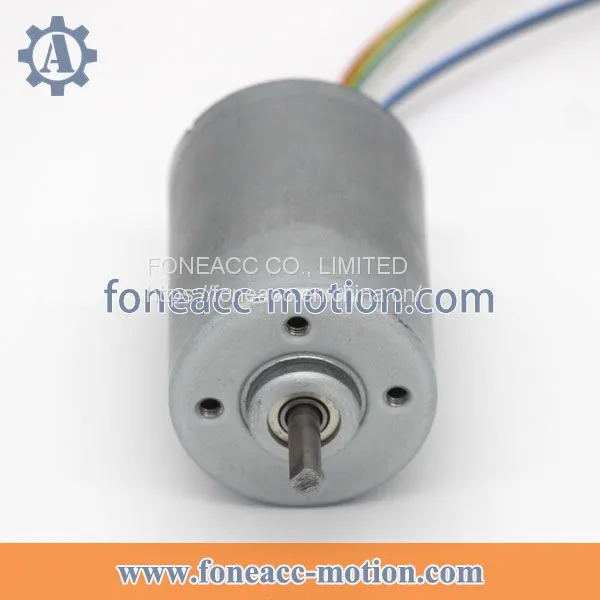

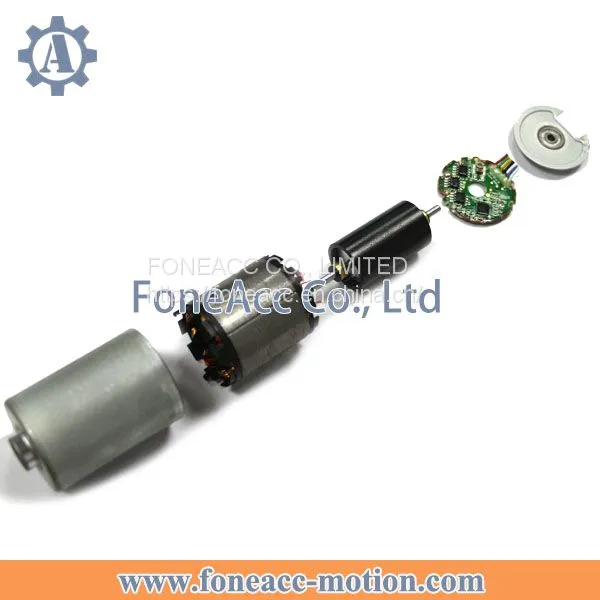

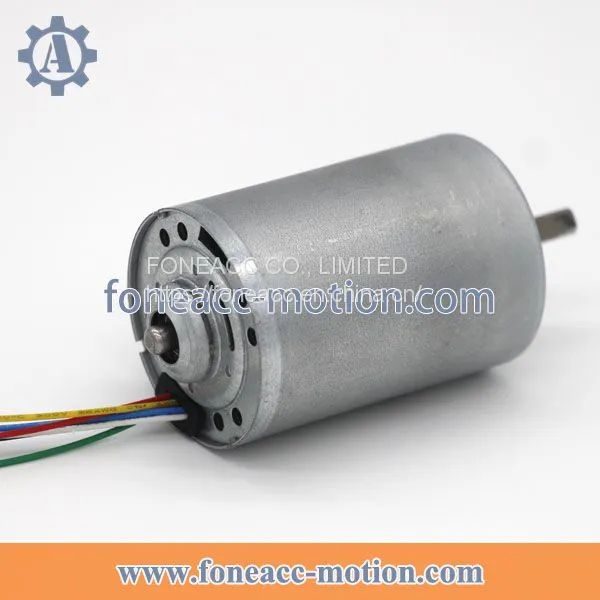

BL4260 BL4260i B4260M OD Diameter 42mm Small Inner Rotor Brushless DC BLDC Motor
- 10000 Piece / Pieces per Month
- T/T PayPal
- 10 days
- BL2838i B2838M 28mm inner rotor bldc brushless dc motor
- BL2847i B2847M 28mm inner rotor bldc motor DC 18V 9100RPM
- FC-280 24mm flat carbon brush dc motor for car door lock actuator DC6V 11910RPM
- FF-M10VA 10mm Micro DC Motor DC 4.5V 17500RPM
- FF-M20VA Brushed Micro DC Motor
- RS-750 High speed high torque 12V micro DC motors 456g.cm
Product Details
Brand Name: | Foneacc | Place of Origin: | China | Model Number: | BL4260-S01 |
Type: | Micro Motor | Certification: | ROHS | Torque: | 480.5g.cm |
Construction: | Permanent Magnet | Efficiency: | IE 2 | Voltage(V): | DC 12V |
Output Power: | 8.759W | Continuous Current(A): | 0.942A | Speed(RPM): | 1775RPM |
Commutation: | Brushless |
Product Description
BL4260i B4260M OD Diameter 42mm Small inner rotor Brushless DC BLDC motor | FoneAcc Motion
Specs:
Size: Ø42.0* 60.0mm

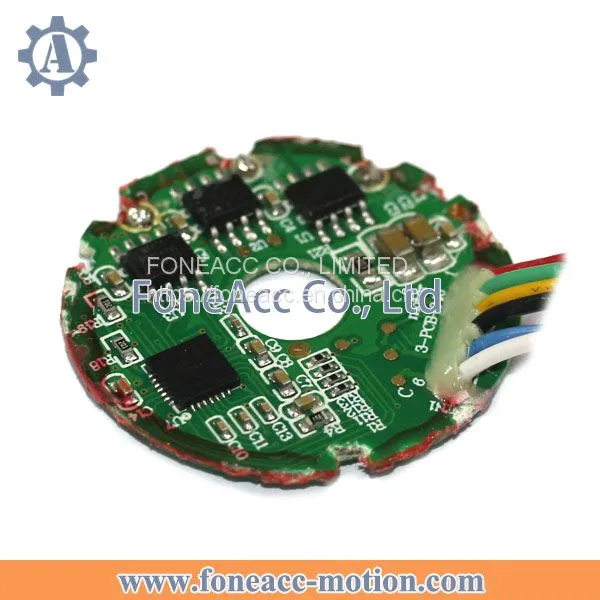

Built-in driver(built-in driver Controller with hall sensor)
PWM pulse wide speed range
Clockwise/counter-clockwise rotation
FG speed feedback signal
Low EMC
Low noise
Long life: 20000hrs Min.
Over-current protection
Over-voltage protection
Under-voltage protection
OEM and ODM orders are welcome
The design can be customized
Download and view HD PDF file bl4260.pdf
42mm bldc motor with inbuilt controller series.
BL4260 | Output Power: 5W~60W | Weight: 296g (Approx.) |
brushless dc motor-Typical Application Home Application: White Goods, Small Appliance, Fanner, Coffee Machine, Milk Tea Machine Medical Apparatus: Medical Pump, Surgery Tools, Medical Stirrer, centrifugal Machine Industry Equipment: Pump, Portable Screwdriver, Small Compressor Business Equipment: Printer, Copier, Projector, ATM, Vending Machine Personal Care: Hair Dryer, Electric Shaver, Massager |
Model | Voltage(V) | No Load | Rated Load | Stall | ||||||
Operating Range | Rated | Speed (rpm) | Current (A) | Torque (g.cm) | Speed (rpm) | Current (A) | Output P. (W) | Torque (g.cm) | Current (A) | |
BL4260-S01 | 8~26 | 12 | 2050 | 0.16 | 480.5 | 1775 | 0.942 | 8.759 | 3695.2 | 6.18 |
BL4260-S02 | 8~26 | 24 | 4260 | 0.26 | 969.9922 | 3270 | 1.85 | 32.58 | 4175.477 | 3 |
BL4260-S03 | 8~26 | 24 | 4046 | 0.24 | 612.6482 | 3342 | 1.21 | 21.01 | 3516.298 | 2.5 |
Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 3000-50000hrs |
|
BL4260 Data |
Related Products: |
36mm bldc motor Brushless Dc Motor series" alt="36mm bldc motor Brushless Dc Motor series"/> |
Q: Are all of your gearheads reversible? A: Yes. Q: What is the delivery time of sample? A: One week or two, if you choose from our regular specifications. It takes 3 weeks or more if it is not regular specifications. Q: What is the delivery time of mass production? A: Normally one month. It may take longer time if it is a very big quantity or other special situation. Q: Do you accept small quantity? A: Yes, it is only available for samples, we do not accept small order. Q: Do you have motors in stock? A: No, not always. All motors are made with orders and with custom specifications. But sometimes we got some specific models in stock if you want products in stock, just ask our team for more information. Q: Do you offer OEM/ODM service? A: Yes, we do. Q: How to make payment? A: a) PayPal for samples. We prefer PayPal for a small amount of money. b) T/T for orders. Regular payment terms: 50% deposit, balance before shipment/balance against shipping documents. Q: How to deliver? A: a) For samples and total gross weight less than 100KG, we recommend DHL Express. It is very fast and safe and we can get a very low discount from DHL. b) We go with FOB/CIF/CFR/DAP terms if shipment by sea and by air. |
