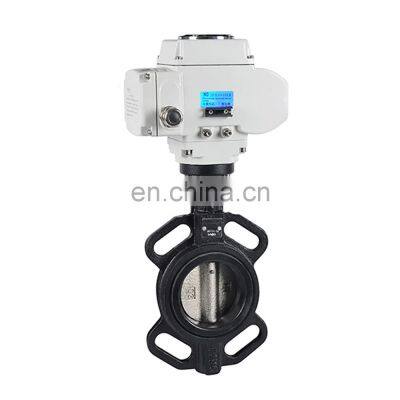

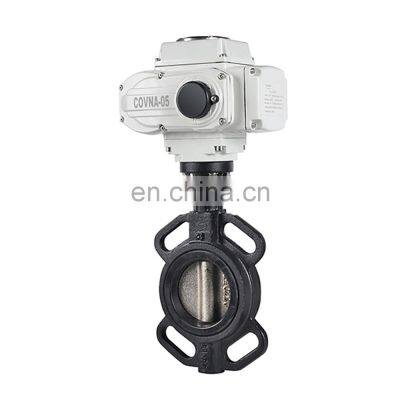

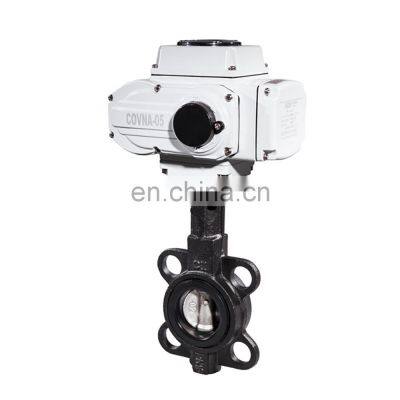

COVNA DN200 PN16 8 inch 24 Volt EPDM Rubber Seat Wafer Type Cast Iron Motorized Electric Butterfly Valve
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
COVNA DN50 2 inch 24V DC Food Grade 316 Stainless Steel Sanitary Butterfly Valve with Electric Actuator
-
COVNA 3 Way T Port 12V DC Stainless Steel Electric Actuator Ball Valve Water Flow Control Motorized Electric Ball Valve
-
COVNA DN50 2 inch PN16 High Pressure 12V DC 4 Way T Port Stainless Steel Electric Actuated Flange Ball Valve
-
COVNA DN40 1.5 inch 24V DC Italy Wafer Type Flanged 304 Stainless Steel Motor Operated Ball Valve
-
COVNA DN50 2 inch PN16 12 Volt EPDM Rubber Seat Wafer Type SS316 Electric Actuated Butterfly Valve
-
DN25/32/50 24V 110V Ac Flange Water Flow Control Rotary Float Electric Motorized Actuator Ball Valve
Product Description
Specifications

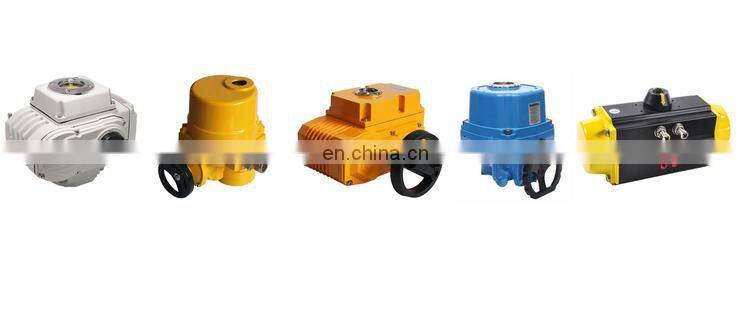

Optional Electric Actuated and Pneumatic Actuated
▼
In Stock, Start Order Now! | ||||||
Item | COVNA DN200 PN16 8 inch 24 Volt EPDM Rubber Seat Wafer Type Cast Iron Motorized Butterfly Valve | ||||
Size Range | DN200, 8" | ||||
Pressure Rating | PN16 | ||||
End Connection | Wafer Type | ||||
Body Materials | Cast Iron | ||||
Disc Materials | Stainless Steel | ||||
Seat Materials | EPDM | ||||
Working Temperature | -5°C to 100°C | ||||
Optional Actuation | Handlever or Pneumatic Actuated | ||||
Products Description
Company Profile
Certification
Exhibition
Cooperation Customers
Finished Project
Packaging & Delivery
FAQ
Q:Which voltage of the electric actuator?
A: DC24V, AC24V, AC110V, AC220V
AC380V can be customized and DC12V is available for some smaller torque of actuator.
Q: What is the actuation time for electric actuator?
A: It depends on the torque of actuator.
The detailed timing would be as the following:
* COVNA-05(50Nm)-20 seconds
* COVNA-10(100Nm)/COVNA-16(160Nm)-25 seconds
* COVNA-30(300Nm)/COVNA-60(600Nm)-60 seconds
* COVNA-125(125Nm)/COVNA-250(2500Nm)/COVNA-400(4000Nm)-100 seconds.
Q: Can the actuation time be faster?
A: Electric actuator can be customized the quick actuation gear,
the soonest actuation time can be reach 10 seconds to open and close.
Q: What type of electric actuator you provide?
A: ON/OFF type, Regulation type and Intelligent type.
Q: What is the difference from ON/OFF type, Regulation type and Intelligent type?
A: 1)ON/OFF type
ON/OFF type is fully open and fully closed.
2)Regulation type
1.With input/output signal:4-20mA or 0-10V;
2.Opening position of valve can be adjusted by signal;
3.Available for PLC system.
3)Intelligent type
1.With input/output signal:4-20mA or 0-10V;
2.Opening position of valve can be adjusted by signal;
3.Available for PLC system.
4.With display screen to acheieve site control.
Q: Can this electric valve be resettable (normally open / closed) automatically when power is removed?
A: Our regular electric actuator can't be resettable automatically while power-off.
But it can go to the multiturn electric actuator model with the extra electrical storage device along,
which acheieve the valves can be automatic reset(normally closed) while power failure.
Q: Have the electric actuator had the presence of limit switches (contact about the position of the cut-off device)?
A: Yes, there is the position indicator on the top of actuator.
The open/closed status can be checked visually.
Q: Which type of protection class of this electric actuator?
A: IP65, IP68, Explosion proof.
Q. Is there any manual override of electric valve?
A: Yes, every electric valve includes the manual override.
You can open/close
Q:Have the electric valve had the limiting operating time?
A: Electric haven't had the limiting operating time.
It can be working for 99 hours continually without getting heating.
A: DC24V, AC24V, AC110V, AC220V
AC380V can be customized and DC12V is available for some smaller torque of actuator.
Q: What is the actuation time for electric actuator?
A: It depends on the torque of actuator.
The detailed timing would be as the following:
* COVNA-05(50Nm)-20 seconds
* COVNA-10(100Nm)/COVNA-16(160Nm)-25 seconds
* COVNA-30(300Nm)/COVNA-60(600Nm)-60 seconds
* COVNA-125(125Nm)/COVNA-250(2500Nm)/COVNA-400(4000Nm)-100 seconds.
Q: Can the actuation time be faster?
A: Electric actuator can be customized the quick actuation gear,
the soonest actuation time can be reach 10 seconds to open and close.
Q: What type of electric actuator you provide?
A: ON/OFF type, Regulation type and Intelligent type.
Q: What is the difference from ON/OFF type, Regulation type and Intelligent type?
A: 1)ON/OFF type
ON/OFF type is fully open and fully closed.
2)Regulation type
1.With input/output signal:4-20mA or 0-10V;
2.Opening position of valve can be adjusted by signal;
3.Available for PLC system.
3)Intelligent type
1.With input/output signal:4-20mA or 0-10V;
2.Opening position of valve can be adjusted by signal;
3.Available for PLC system.
4.With display screen to acheieve site control.
Q: Can this electric valve be resettable (normally open / closed) automatically when power is removed?
A: Our regular electric actuator can't be resettable automatically while power-off.
But it can go to the multiturn electric actuator model with the extra electrical storage device along,
which acheieve the valves can be automatic reset(normally closed) while power failure.
Q: Have the electric actuator had the presence of limit switches (contact about the position of the cut-off device)?
A: Yes, there is the position indicator on the top of actuator.
The open/closed status can be checked visually.
Q: Which type of protection class of this electric actuator?
A: IP65, IP68, Explosion proof.
Q. Is there any manual override of electric valve?
A: Yes, every electric valve includes the manual override.
You can open/close
Q:Have the electric valve had the limiting operating time?
A: Electric haven't had the limiting operating time.
It can be working for 99 hours continually without getting heating.
