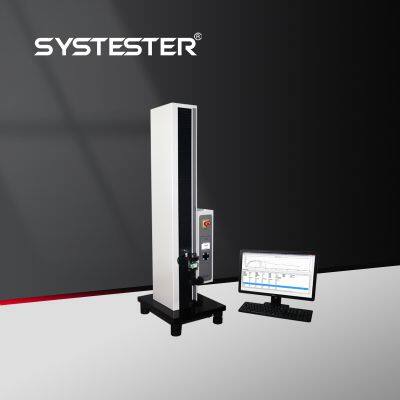

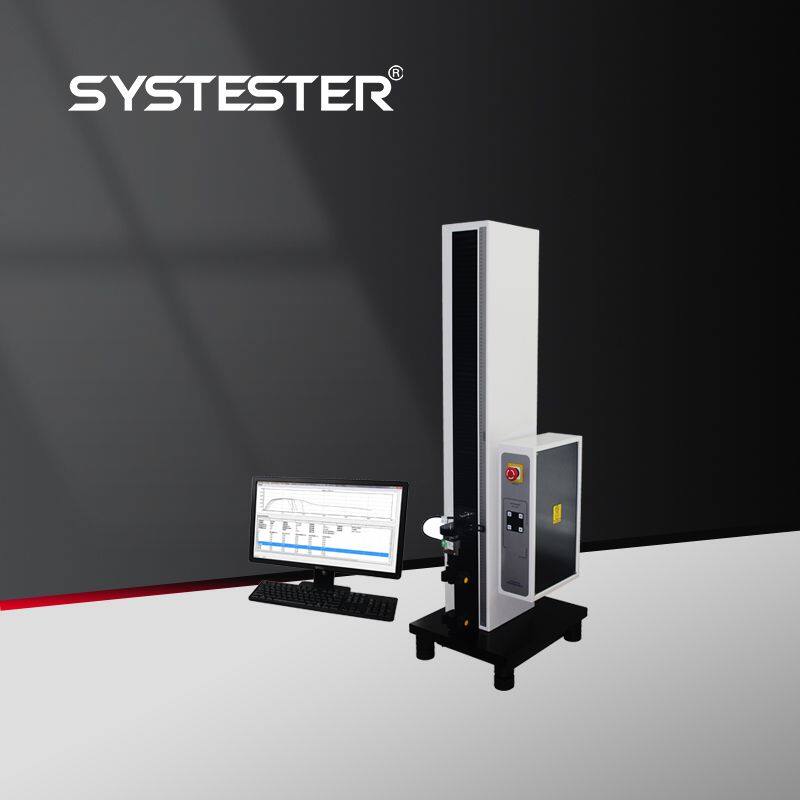

Auto Tensile Tester Tensile/ Puncture/ Break/ Elongation Test
- 1000 Set / Sets per Month
- Jinan
- T/T L/C
- 3 days
-
Flexible Package Vacuum Leakage Tester
-
ASTM E96 Weighing Method Water Vapor Permeability Tester
-
ASTM/ ISO Standard COF Tester Friction Test For Plastic Membrane
-
Gas Permeability Test Fuel Cell PEM Transmission Rate Test
-
Water Vapor Permeability Test For HDPE/ Plastic Membrane
-
Vacuum Leakage Tester For Food Beverage/ Flexible Packages
Product Details
Brand Name: | SYSTESTER | Place of Origin: | China | Model Number: | TSL |
Power: | Electronic | Usage: | Auto Testing Machine |
Product Description
Auto Tensile Tester Tensile/ Puncture/ Break/ Elongation Test
Catalogs
What we can provide
Packages & Logistics
About Quality
Product Details
Application:
Applies to the test of all kinds package materials and films.
Auto Tensile Tester Tensile/ Puncture/ Break/ Elongation Test
Features:
1: Professionally design, multiple medical test fixture optional
2: Bilingually controlled by computer and embedded system
3: Highly accurate load cell, Bi-direction test.
4: High performance servo drive.
5: Test speed can be preset freely through software.
6: Selectable load cell: 50N, 100N, 250N, 500N, 1000N.
7: Silence running,<25db@1000.
8: ISO, ASTM standards test available and non-standard test available.
9: Electronic limit, computer preset, non-mechanical limit.
10: Overload protection, less power consumption.
11: DB9 RS232 communication port .
12: Tensilyst workstation support.
13: Break force, elastic modulus, seal strength, tensile,90 peeling strength, 180 peeling strength test available.
14: Historical data traceable, system log.
15: 5 degrees user management.
16: Group test, auto multiple curves overlaying display, auto statistic calculation.
17: DSM system is optional(Laboratory Management Information System), easy to manage test data.
Auto Tensile Tester Tensile/ Puncture/ Break/ Elongation Test
Technical Indexes:
1: Load range: 50N, 100N, 250N, 500N, 1000N.(Personal customization available)
2: Accuracy: 0.03%FS max
3: Max travel distance: 1000mm.
4: Test speed: 0.1mm/min – 1000mm/min.
5: Displacement accuracy: better than 0.01mm.
6: Sample width: 38mm. (optional)
7: Sample thickness: 5mm. (optional)
Standards:
ASTM, ISO, GB
