PL series Plastic Male Pneumatic push to connect 90 degree Elbow quick fittings
- 20000 Piece / Pieces per Month
- NINGBO OR SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 2 days
-
SMC type PM series Straight Pneumatic Push in 1/4 Bulkhead union brass air Fittings
-
PV Series 2 way L Type Elbow Plastic Tube-to-tube Quick Connector Pneumatic Push In Fittings
-
PW series 3 way Y tee Variable Diameter Pipe Fitting plastic Pneumatic Fittings
-
Male thread Y type PX4mm-12mm OD Hose Tube One touch Pneumatic Fitting
-
PY series 3 way Plastic Pneumatic hose air tube Compact one touch fittings
-
PZA 4mm/6mm/8mm/10mm/12mm/16mm 4 Way cross connector Pneumatic Hose Quick Fitting
Product Details
| Brand Name: | Yister | Place of Origin: | China | Model Number: | PL4-M5/01/02/03,PL6-M5/01/02/03/04,PL8-M5/01/02/03/04 ,PL10-01/02/03/04,PL12-01/02/03/04/PL14/PL16 |
| Type: | Fittings |
Product Description

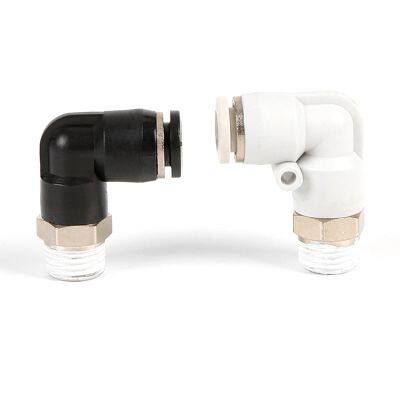

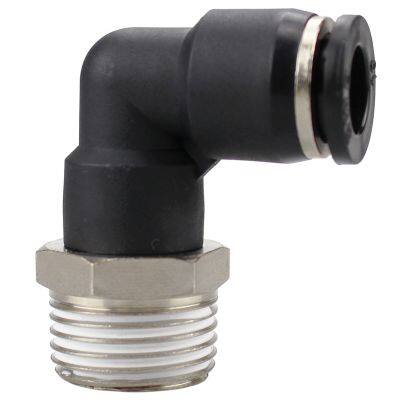

PL series Plastic Male Pneumatic push to connect 90 degree Elbow quick fittings
Order code
Technical parameter
Model | PL4-M5 PL4-01 PL4-02 PL4-03 | PL6-M5 PL6-01 PL6-02 PL6-03 PL6-04
| PL8-M5 PL8-01 PL8-02 PL8-03 PL8-04 | PL10-01 PL10-02 PL10-03 PL10-04 | PL12-01 PL12-02 PL12-03 PL12-04 | PL14-02 PL14-03 PL14-04 | PL16-02 PL16-03 PL16-04 PL16-06 | |
Fluid | Air | |||||||
Max. Pressure | 1.32Mpa(13.5kgf/cm2) | |||||||
Pressure range | Normal pressure | 0~0.9Mpa(0~9.2kgf/cm2) | ||||||
Low pressure | -99.99~0Mpa(-750~0mmHg) | |||||||
Temperature | 0℃~60℃ | |||||||
Applicable tube | PU/Nylon tube | |||||||
Thread size | 1/8”,1/4”,3/8”,1/2” | |||||||
Material of body | Brass | |||||||

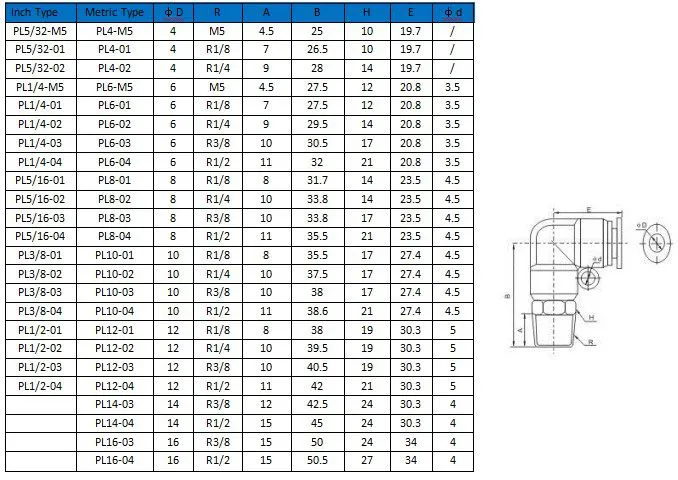

Dimension
Feature for PL series Plastic Male Pneumatic push to connect 90 degree Elbow quick fittings
. Variable models can be widely used in every kind of pneumatic systems.
. High circulation performance: bear the same flow with the volume of the tubing inside diameter.
.Connect tubing easily and conveniently. The tubing connection portion is safe and durable.

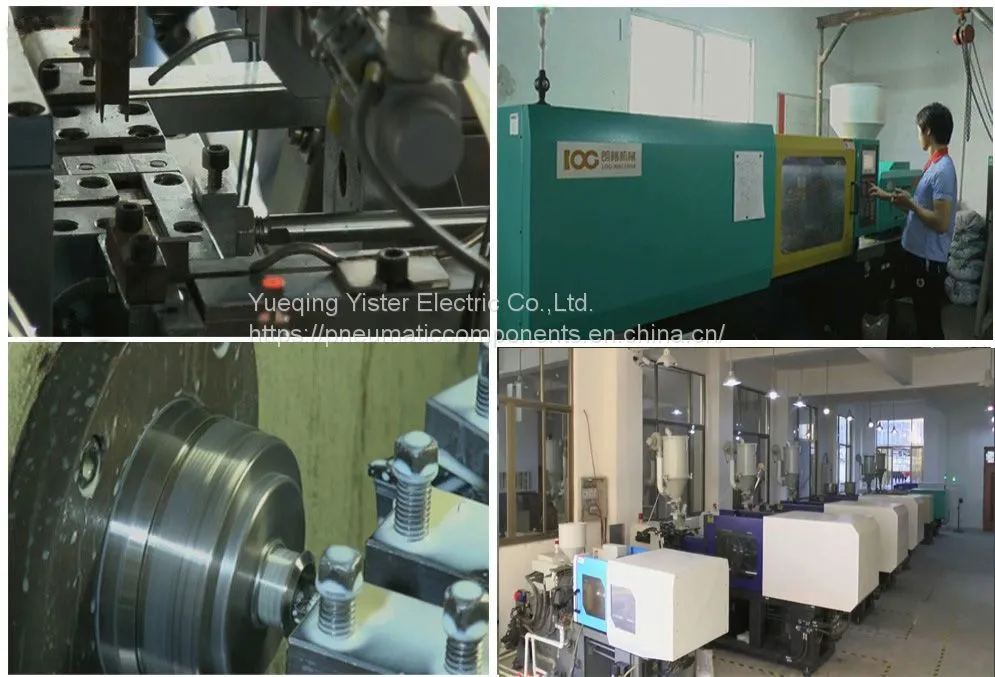

About us
Yister specialized in manufacturing Pneumatic fittngs, Air fittings, Push in fittings, One touch tube fittings, hose fittings, One touch fittings, Quick connecting tube fittings, Compact one touch fittings, Composite Pneumatic Fittings, Pneumatic Connectors. Pneumatic push in fittings, All metal push in fittings, Nickel plated brass push in fittings, Full nickel plated brass pneumatic push-in fittings, compression fittings, Push connect air brake fittings, Rapid fittings for plastic tube, two touch fittings, Air connectors, brass fittings, Air tubing, PU tubing, Nylon tubing, Pneumatic tubing, Flow Speed Controllers and Hand Valve, Air hose, sliencer, muffler, Pneumatic accessories, Pneumatic components, Pneumatic elements
water pipe connector, air conditioning pipe connector, refrigeration pipe connector, equipment connector, wire cable joint
Packing&Shipping
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 1-5 days if the goods are in stock. or it is about 30 days if the goods are not in stock, it is according to quantity .
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 100% in advance by air. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q:What is the MOQ for your Pneumatic Elbow push in fittings?
A: There is no special requirement for standard pipe fittings.
