Home > Products > Capacitor > High voltage fliter capacitor 512.5kvar 7.2KV 1 PHASE /3 PHASE -Power capacitor bank

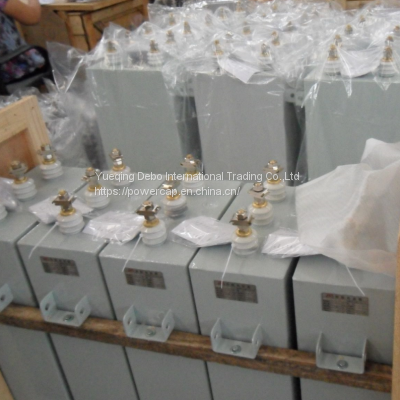

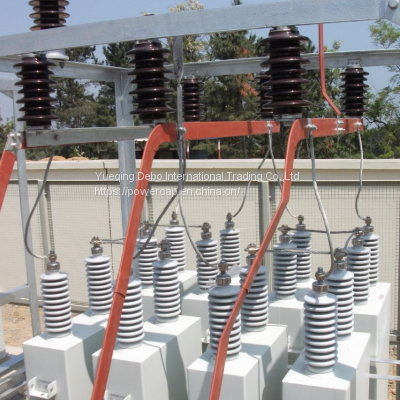

High voltage fliter capacitor 512.5kvar 7.2KV 1 PHASE /3 PHASE -Power capacitor bank
- 2000 Piece / Pieces per Month
- SHANGHAI
- T/T L/C D/P D/A
Product Details
| Brand Name: | DB | Place of Origin: | China | Model Number: | BFM |
| Type: | Polyester Film Capacitor | Application: | General Purpose | Rated Voltage: | 7.2KV |
| Package Type: | Surface Mount | Capacitance: | 512.5KVAR |
Product Description
Product Usage:
It is mainly used in the AC power systems
with a frequency of 50Hz/60Hz. Such
capacitors are mainly used to provide
low-impedance channels for high-order
harmonic currents in the power grid,
improve the power factor of the
system, simultaneously compensate for
inductive reactive power at the same
time, and reduce the power loss. Guarantee
the quality of voltage, enhance the
stability of the system and improve the
ability of the system to deliver electrical energy.
Product parameters:
1. Voltage level: 1 ~ 24kV
2. Capacity level: 100 ~ 800kvar
3. Capacitance deviation: -3% ~ +5%
4. Dielectric loss tangent value: ≤0.03%
5. Protection methods: internal fuse or no fuse
Executive standard
GB/T 11024.1-2010 "Shunt capacitors for AC power systems with rated voltage
of 1kV or more Part 1: General provisions"
GB/T 11024.2-2001 "Shunt capacitors for AC power systems with rated voltage
of 1kV or more Part 2: Durability test"
GB/Z 11024.3-2001 "Shunt capacitors for ac power systems with rated voltage
of 1kV or more Part 3: Protection of shunt capacitors and shunt capacitor
banks"
GB/T 11024.4-2001 "Shunt capacitors for ac power systems with rated voltage
of 1kV or more Part 4: Internal fuses"

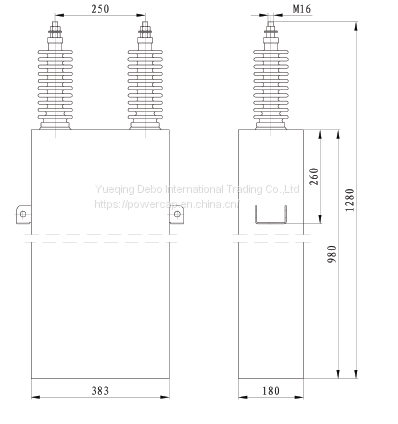

Dimension (mm)
