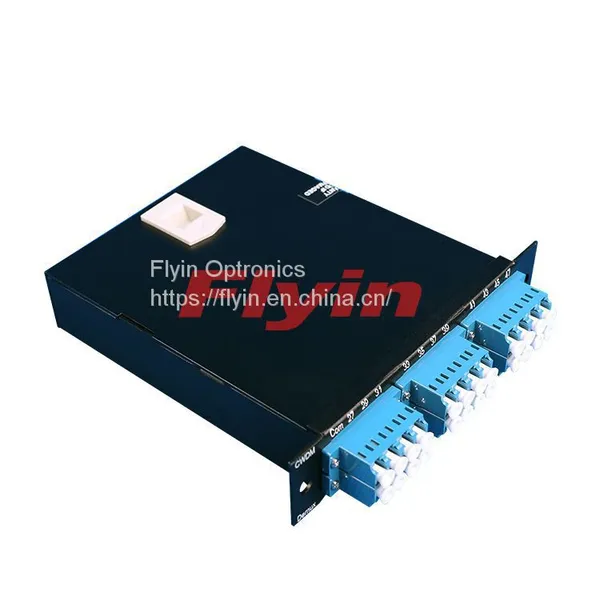

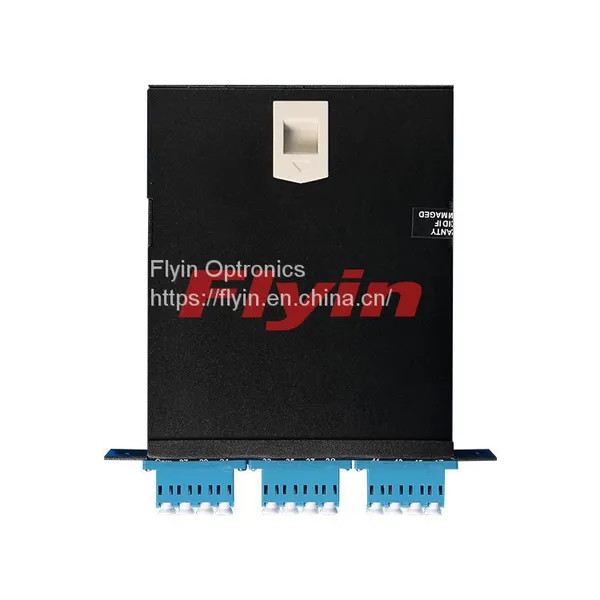

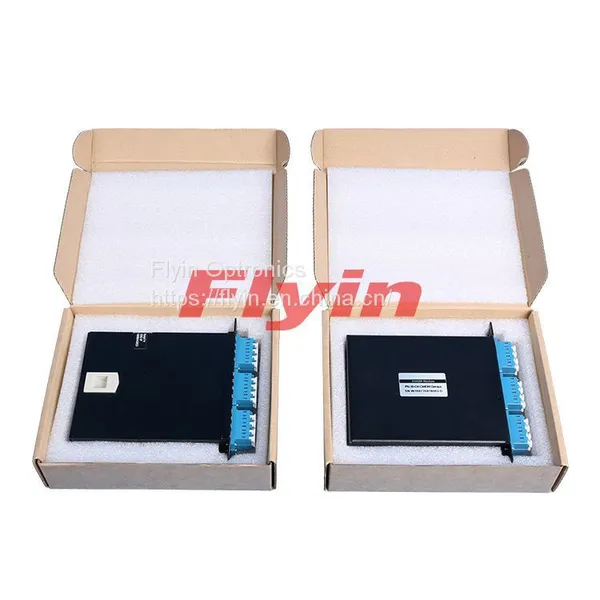

100GHz/200GHz DWDM Module in LGX Box
USD $1 - $100
/ Piece
10 Pieces(Min.Order)
- 40000 Piece / Pieces per Month
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
You May Like
Product Details
| Brand Name: | flyin | Place of Origin: | China | Model Number: | DWDM |
Product Description
Channel Spacing：
100GHz 200GHz
Number of Channels：
4 Channel 8 Channel
Configuration：
Mux Demux
Fiber Type：
Bare fiber 900um loose tube 2mm cable 3mm cable
Fiber Length：
1m 2m
In/Out Connector：
None FC/APC FC/PC SC/APC SC/PC ST LC
1st Channel：
C21
C22
C23
C24
C25
C26
C27
C28
C29
C30
C31
C32
C33
C34
C35
C36
C37
C38
C39
C40
C41
C42
C43
C44
C45
C46
C47
C48
C49
C50
C51
C52
C53
C54
C55
C56
C57
C58
C59
C60
C61
| Features | Applications |
| Low Insertion Loss | Channel Add/Drop |
| Wide pass band | DWDM Network |
| High channel | Wavelength Routing |
| High stability and reliability | Fiber Optical Amplifier |
| Epoxy free on optical path | CATV Fiberoptic System |
| Parameter | 4 Channel | 8 Channel | |||
| Mux | Demux | Mux | Demux | ||
| Channel Wavelength（nm） | ITU Grid | ||||
| Channel Spacing (GHz) | 100 / 200 | ||||
| Channel Passband (@-0.5dB bandwidth (nm) | >0.3(100G) / >0.5(200G) | ||||
| Insertion Loss (dB) | ≤1.8 | ≤3.0 | |||
| Channel Uniformity (dB) | ≤0.6 | ≤1.0 | |||
| Channel Ripple (dB) | 0.3 | ||||
| Isolation（dB） | Adjacent | N/A | >30 | N/A | >30 |
| Non-adjacent | N/A | >40 | N/A | >40 | |
| Inertion Loss Temperature Sensitivity (dB/℃) | <0.005 | ||||
| Wavelength Temperature Shifting (nm/℃) | <0.002 | ||||
| Polarization Dependent Loss (dB) | <0.1 | <0.1 | |||
| Polarization Mode Dispersion（ps） | <0.1 | ||||
| Directivity (dB) | ＞50 | ||||
| Return Loss（dB） | ＞45 | ||||
| Maximum Power Handling (mW) | 300 | ||||
| Opterating Temperature (℃) | -5~+75 | ||||
| Storage Temperature (℃) | -40~+85 | ||||
| Package dimension (mm) | L155.5xW102(129)xH29 or Specify | ||||
