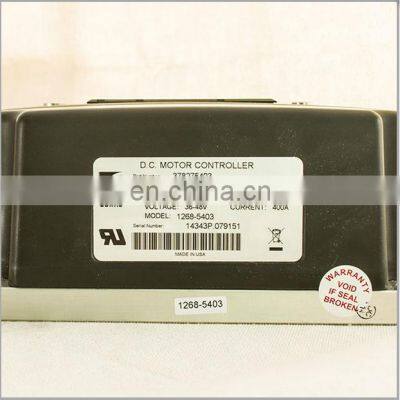

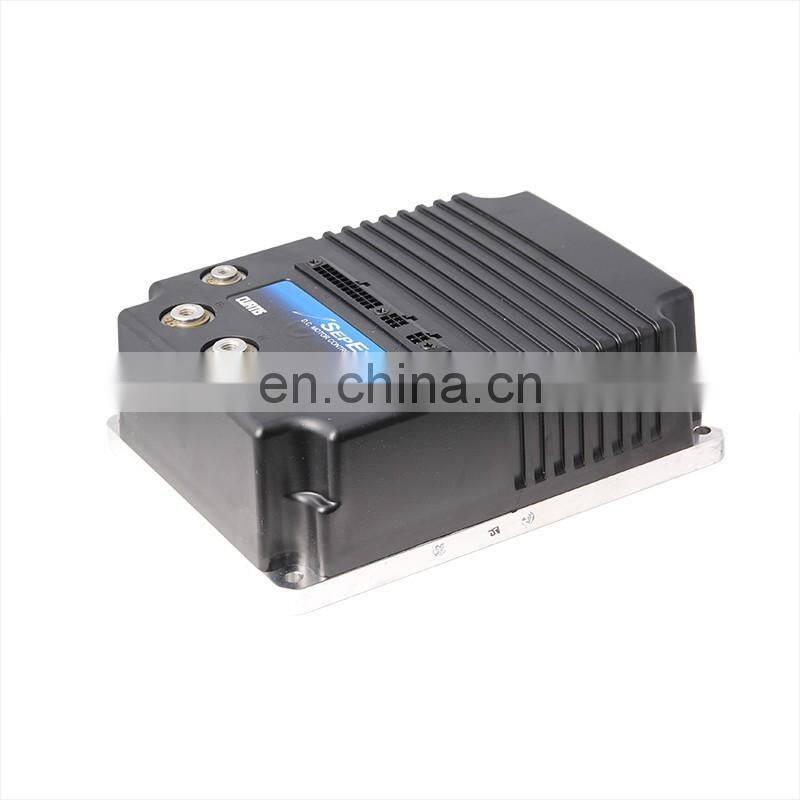

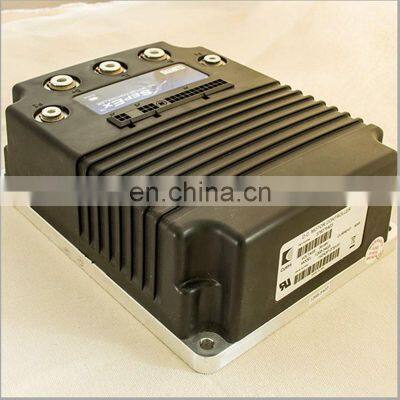

Programable DC Motor Speed Controller PWM Reversible Controller 1268-5403

Specifications:

PWM operating frequency: 16 kHz
Electrical isolation to heatsink (min.): 500 VAC
KSI input voltage (minimum): 16.8 V
KSI input current (typical): 160 mA without programmer; 200 mA with programmer
Ambient operating temperature range: -40°C to 50°C
Heatsink overtemperature cutback: starts at 85°C; cutoff at 95°C
Heatsink undertemperature cutback: 50% armature current at -25°C

Overview:

CURTIS 1268 controllers are separately excited motor speed controllers designed for use in a variety of transport vehicles. These programmable controllers are simple to install, efficient, and cost effective. Typical applications include heavy-duty golf carts, personnel transports, burden carriers, and other utility vehicles.

The 1268 controller offers smooth, silent, cost effective control of motor speed and torque. The speed sensor input allows superior closed-loop control for regulating vehicle speed. Unique braking parameters allow simple, intuitive deceleration tuning. A full-bridge field winding control stage is combined with a half-bridge armature power stage to provide solid state motor reversing and regenerative braking power without additional relays or contactors.

Key Features:

CURTIS Model: 1268-5403
Norminal Battery Voltage (Volts): 48V (default setting) or 36V
Amature 2 minute current rating (amps): 400
Field 2 minute current rating (amps): 50
Logic enable and logic power input voltage (minimum): 16.8 V
Logic enable and logic power input current (no contactors engaged): 160 mA without programmer; 200 mA with programmer
Logic input voltage: 20.0 V High; 7.5 V Low
Logic input current 10 mA
Throttle Type: various throttles can be used with the 1268 controller, including 5kΩ 3-wire potentiometers and 0–5V throttles.
Dimensions: L229xW178xH81 mm
Package environmental rating: IP64, IP67
