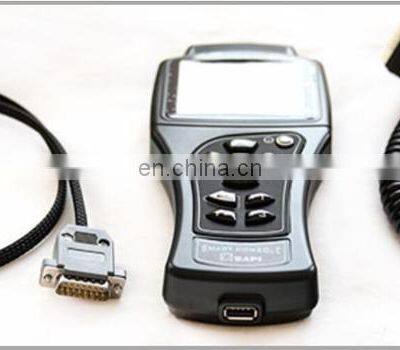

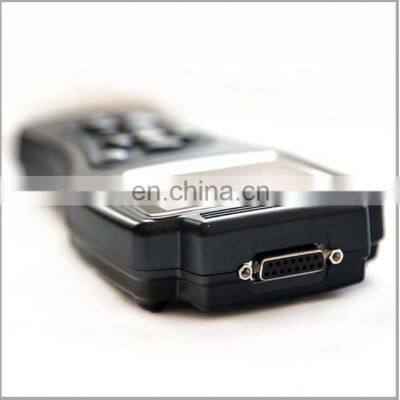

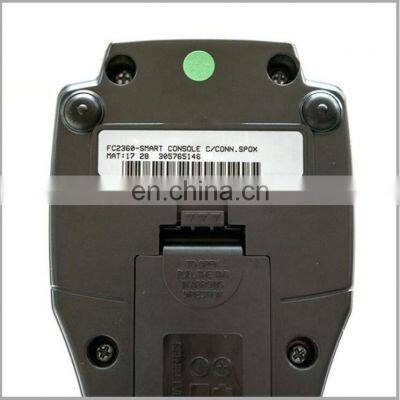

Forklift parts of ZAPI Smart Console Handset programmer

With this console it is possible to interact with the controller via CAN or Serial communication in order to monitor the real time operation and to change the software parameters in order to better fit the application. The console onboard USB port permits also to import/export controller operational data using an external flash drive. This handset works with most ZAPI motor speed controllers (typical application: ZAPI H2B DC series winding motor speed chopper). For more details, please feel free to contact us.

Technical details:
3.2'' TFT Color Display
ARM Cortex 32bit Microcontroller
Connection via CAN or serial line (compatibility mode)
Power supply from truck battery (24V to 80V) or from onboard
NiMh AA batteries
Improved Navigation and Tester Menu
Interchangeable cable
3 user programmable buttons
USB connection to flash drives
Dimension: 100x190x60 mm
Man-machine interface details:

Tester: real time display of the analogue and digital measurements in the controllers (battery voltage, motor voltage, motor current, temperature, potentiometer voltage, ...)
Programming Parameters: multilevel password protected access to the controllers parameters
Save & Restore: possibility to save a set of parameters in an external memory in order to program multiple controllers with the same set in an automated way
Alarms display: last 5 faults / warnings
Advanced functions: CAN messages real time data-logging on USB for system analysis; real time data-logging of I/O values shown in the tester menu Sw download for firmware upgrade

Package:Normally we use the standard exporting packaging. We also can according to clients' request .


1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperating.
2. By Air: Delivery from the Shanghai airport to customer's destination city air port.
3. By Sea: Delivery from the Shanghai sea port .

Hefei Huanxin Technology Development Co., Ltd. has been devoting ourselves to developing and manufacturing and other since 2004. We are located in Hefei, Anhui Province, with convenient transportation access. We employ over 101 - 200 People staff members. We have achieved great improvement since our company was founded in 2004. We abide by the motto of Firstclass quality, Reasonable price, Best service and Professional product support.

Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?
A: Sample needs 3-5 days.

Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.

Q8: How to deal with the faulty?
A: Our products are produced in strict quality control system and the defective rate will be lessthan 0.2%
