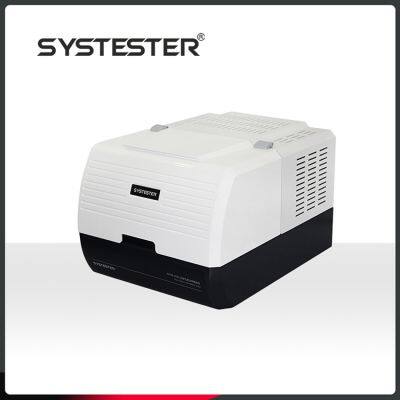

Weighing Method ASTM Standard Water Vapor Permeability Tester
- 1000 Set / Sets per Month
- Jinan
- T/T L/C
Product Details
Brand Name: | SYSTESTER | Place of Origin: | China | Model Number: | WVTR |
Power: | Electronic | Usage: | Auto Testing Machine |
Product Description
Weighing Method ASTM Standard Water Vapor Permeability Tester
Products Details
Application:
Based on the weighing method and available for the water vapor permeability test of plastic films, aluminum foil, aluminized films, plastic composite films and many others.
Films:
Plastic films, composite films and many others.
Packages:
Plastic packages.
Weighing Method ASTM Standard Water Vapor Permeability Tester
Features:
— Weighing method
— Own technology
— 3 specimens, continuously test
— One-button test, test automatically in whole process
— Multiple test modes optional
— Temperature and humidity auto control
— Data curves display
— Computer control
— Environment temperature and humidity sensor inside
— Unit based on embedded system,24bit Δ-Σ AD
— Traceable reference film calibration
— Supports DSM system (DSM, lab data management system)
Weighing Method ASTM Standard Water Vapor Permeability Tester
Technical indexes:
Test range: | |
Film | 0.1~19,000 g/m2·24h (standard) |
Resolution | 0.01 g/m2·24h |
Specimen amount | 3 specimens, independent |
Temperature range | 15C–60C |
Temperature accuracy | ±0.1C |
Humidity range | Room-95%RH,standard condition 90%RH |
Humidity accuracy | ±1%RH |
Test area | 28.26cm2 |
Specimen size | Φ76mm |
Air velocity | 0.5~2.5m/s (customization available) |
Test chamber volume | 36L |
