Flyin 2x2B Bypass Mechanical Fiber Optical Switch

Flyin Optronics Co.,Ltd Verified Business License
Flyin 2x2B Bypass Mechanical Fiber Optical Switch thumbnail-1
Flyin 2x2B Bypass Mechanical Fiber Optical Switch thumbnail-2
Flyin 2x2B Bypass Mechanical Fiber Optical Switch thumbnail-3
Flyin 2x2B Bypass Mechanical Fiber Optical Switch thumbnail-4
Flyin 2x2B Bypass Mechanical Fiber Optical Switch photo-1

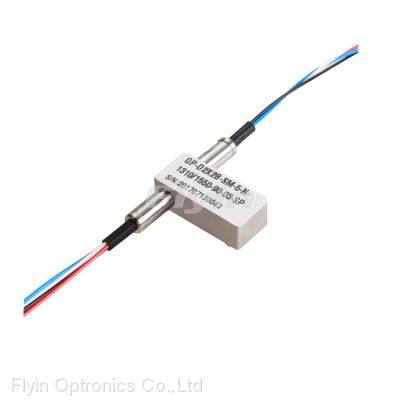

Flyin 2x2B Bypass Mechanical Fiber Optical Switch photo-2
Flyin 2x2B Bypass Mechanical Fiber Optical Switch photo-3

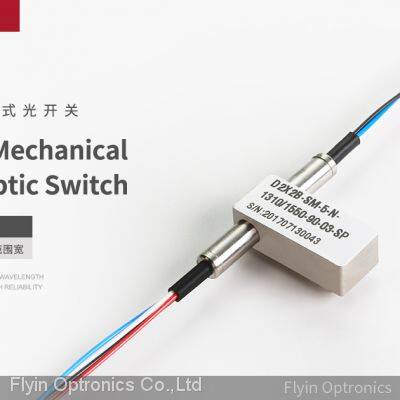

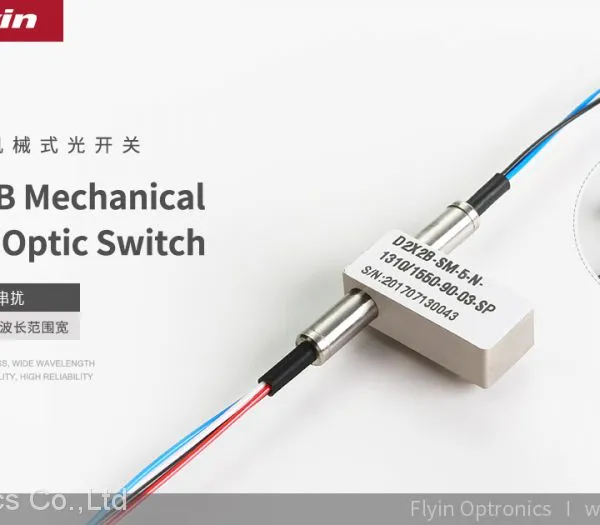

Flyin 2x2B Bypass Mechanical Fiber Optical Switch photo-4
US$ 15 - 16 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
FY-optical-switch
Place of Origin:
China
Model Number:
FY-switch
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
3 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name FY-optical-switch
Place of Origin China
Model Number FY-switch
Overview
Quick Details

  • Model Number:

  • FY-switch

  • Type:

  • Fiber Optical Switch, Latching or Non-latching

  • Place of Origin:

  • Guangdong, China

  • Brand Name:


  • FY-optical-switch

  • Use:

  • FTTX

  • Product name:

  • Optical Switch

  • Condition:

  • Brand new

  • Operating Wavelength:

  • 850nm,1260-1650nm

  • Voltage:

  • 3v or 5v

  • Fiber Lenght:

  • Customzied

  • Connector:

  • LC/SC/FC/ST

  • Endface:

  • APC/UPC

  • Warranty:

  • 3 years

  • RoHS:

  • Compliant

  • Certification:

  • RoHS
Supply Ability

  • Supply Ability

  • 300 Piece/Pieces per Day fiber Optical Switch

Packaging & Delivery

  • Packaging Details

    • box & carton or customized package for Optical Switch.

  • Port

    • Shen Zhen

  • Picture Example:


  • Lead Time:

  • Quantity(Pieces)1 - 1>1
    Est. Time(days)2To be negotiated

System Monitoring 2x2B Mechanical Optical Switch



2X2b Optical Switch



Features



Low Insertion loss

Wide Wavelength Range

Low Crosstalk

High Stability, High Reliability

Epoxy-free on Optical Path

Latching and Non-latching





Applications



Optical Network

Protection/Restoration

Optical Singnal Routing

Configurable Optical Add/Drop

Transmitter and receiver protection

Network Test System



  • Specification

Technical Paremeter

Parameters

Unit

FLY-2×2B

Wavelength Range

nm

850±40 / 1300±40

1260 ~ 1650

Test Wavelength

nm

850 / 1300

1310 / 1550

Insertion Loss 1, 2

dB

Typ: 1.0    Max: 1.5

Return Loss 1, 2

dB

MM ≥ 30   SM ≥ 50

Crosstalk 1

dB

MM ≥ 35   SM ≥ 55

PDL

dB

≤0.05

WDL

dB

≤0.25

Repeatability

dB

≤±0.02

Operating Voltage

V

3.0  or  5.0

Durability

Cycles

≥ 10 Million

Switching Time

ms

≤8

Optical Power

mW

≤500

OperatingTemperature

℃

-20 ~ +70

Storage Temperature

℃

-40 ~ +85

Relative Humidity

%

5 ~ 95

Weight

g

14

Dimension

mm

(L)27.0×(W)12.6×(H)8.2 ±0.2

Note: 1 Within operating temperature and SOP.

2 Excluding Connectors.
