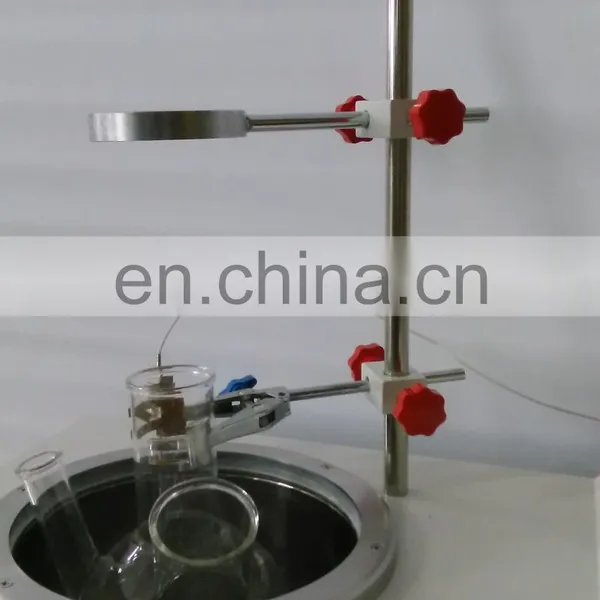

Shaped Energy Constant Temperature Ultrasonic Extraction Instrument

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Description

Features

-- High efficiency: ultrasonic technology, magnetic stirring system and constant temperature control system make the reaction more sufficient -- Intelligent storage: it can set data, store data and control working status -- Intellectualization: according to the reaction environment, the best ultrasonic effect can be achieved automatically through automatic frequency tracking -- Flexible parameters: ultrasonic power, time and reaction temperature are adjustable -- Optional mode: high power ultrasonic and constant temperature system can be used in combination or separately -- High safety: it has the function of fault self diagnosis and alarm prompt -- Simple operation: the special multi port reaction bottle can be filled with various gases to participate in the reaction, and can also be fed continuously

Specification

Model	SCIENTZ-1000C	SCIENTZ-500C	SCIENTZ-250C
Ultrasonic power MAX	1800 W	900W	650W
Reaction flask volume	1000 ml	500ml	250ml
Probe diameter	Ф20 mm	Ф10mm	Ф6mm
Power adjustable range	30%-100%	15%-100%	5%-100%
Ultrasonic frequency	20KHz±1KHz	22±1KHz	22±1KHz
Total ultrasound time	1-999 min can be set
Ultrasound time	1-99 S can be set
Gap time	1-99 S can be set
Blender	1%-30% (maximum speed is 1000 r/min)
Compressor power	500 W
Heating power	2000 W
Temperature control method	PID automatic temperature control
Temperature measurement method	dual-channel temperature measurement to monitor the real-time temperature in the reaction system and constant temperature working tank
Temperature control range	0-99 ℃
Temperature control fluctuation	≦±1 ℃
Constant temperature volume	6 L
Abnormal alarm function	Yes, the device has fault self-diagnosis and alarm prompt function
Operation record mode	the device has a working curve screen, which records the temperature change and other parameter changes during operation
Device control mode	7-inch TFT touch screen display and integrated control of single chip microcomputer
Device operation mode	direct operation on the touch screen, setting parameters such as temperature, power, time
USB communication port	The device comes with a USB communication port, plug in a USB flash drive, and the curve and other information can be saved to the USB flash drive in the form of a picture
Remote communication serial port	this function is an optional item, users who need it can purchase it (including the host computer software) and connect it to the computer
Reaction flask	The conventional one is a three-necked flask, users who need it can buy a five-necked flask

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

Ningbo Scientz Biotechnology Co., Ltd. (stock code: 430685) was founded in 1989. The company is headquartered in the National High-tech Zone of Ningbo City. It is a world-renowned provider of biological sample processing equipment and a pioneer in the application of ultrasonic technology in China. Xinzhi Bio is a high-tech enterprise that provides related scientific instruments for scientific research, education, biomedicine, agriculture and forestry, environmental protection, petroleum, new materials and other fields.

FAQ

Q1.Are you factory or trading company?

We are a factory
Q2.What is your principle for the samples?
We do not provide free sample.
Q3.Which payment can be acceptable?
We could accept the payment by T/T、Paypal etc
Q4.How about your delivery me?
Generally, it will take 7to 15 working days after receiving your payment.Depend on the quantity.
Q5.Service
We could provide Online instruction;Real-time support by call or voice-chat During warranty time,we can send product
accessories when you need for free. Technical guidance is free and ready forever
Q6.Training
Your technicians can come to our factory for training,SCIENTZ engineers can go your place for local support(insta
llation、training、debugging、maintenance); Products can be customized according to your requirements;OEM service available with customers' brand
