Hot sale YZG/FZG series baking oven vacuum belt dryer for pharmaceutical industry
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
- Manufacturer sale 304 stainless steel YZF/FZG series coconut copra dryer for chemical industry
- Factory price PLC control YZG/FZG series round vacuum dryer for foodstuff industry
- Best sale YZG/FZG series continuous vacuum belt dehydrator machine for chemical industry
- Hot sale YZF/FZG series stainless steel vacuum drying machine for foodstuff industry
- Factory price YZG/FZG series mix vacuum belt drying machine for food industry
- High quality YZG/FZG series 304 stainless steel rotary vacuum dryer for pharmacy
Product Description
Product Description

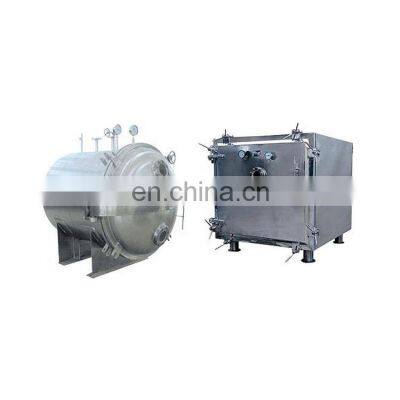

Hot sale YZG/FZG series baking oven vacuum belt dryer for pharmaceutical industry
WORKING PRINCIPLEVacuum Drying is to let the raw material to be dried at vacuum condition. It uses vacuum pump to pump damp air out and make the working chamber form vacuum status. Therefore, the drying speed of raw material is improved and the energy is saved greatly.
Notes: The solvent of raw material can be collected by using a condenser. If the solvent is water, the condenser is not required in order to save investment cost.
Product features
1. The boiling point of raw material will be decreased under the vacuum condition and make theevaporator increases the pushing force of heat transfer.
2. The heat source can be low pressure steam or waste heat;
3. The loss of the heat during the evaporation is only a little.
4. The disinfection treatment can be carried out before drying and there is no impurity material mixing during drying process. It is in conformity with the requirement of GMP;
5. Static vacuum dryer will not damage the shape of raw materials.
2. The heat source can be low pressure steam or waste heat;
3. The loss of the heat during the evaporation is only a little.
4. The disinfection treatment can be carried out before drying and there is no impurity material mixing during drying process. It is in conformity with the requirement of GMP;
5. Static vacuum dryer will not damage the shape of raw materials.
Specification
Specification Item | YZG-600 | YZG-800 | YZG-1000 | YZG-1400A | FZG-10 | FZG-15 | FZG-20 | ||||||
Inner Dimension of the Dryer (mm) | Ф600×976 | Ф800×1247 | Ф1000×1527 | Ф1400×2054 | 1500×1060×1220 | 1500×1400×1220 | 1500×1800×1220 | ||||||
Outer Dimension of the Dryer (mm) | 1135×810×1024 | 1700×1045×1335 | 1693×1190×150 | 2386×1675×1920 | 1513×1924×1720 | 1513×1924×2060 | 1513×1924×2500 | ||||||
Qty of Layers | 4 | 4 | 6 | 8 | 5 | 8 | 12 | ||||||
Distance of Layers | 82 | 82 | 102 | 102 | 122 | 122 | 122 | ||||||
Dimension of Tray (mm) | 310×600×45 | 520×410×45 | 520×410×45 | 460×640×45 | 460×640×45 | 460×640×45 | 460×640×45 | ||||||
Qty of Trays | 4 | 8 | 12 | 32 | 20 | 32 | 48 | ||||||
Inside Pressure of Drying Rack (MPa) | ≤0.784 | ≤0.784 | ≤0.784 | ≤0.784 | ≤0.784 | ≤0.784 | ≤0.784 | ||||||
Working Temperature of Drying Rack | 35-150 | 35-150 | 35-150 | 35-150 | 35-150 | 35-150 | 35-150 | ||||||
Vacuum Degree of Empty Dryer | -0.09~0.096 | ||||||||||||
Water Evaporation Rate (In the condition of -0.1MPa with temperature of 110°C) (kg/m2·hr) | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | ||||||
Vacuum Pump (for the dryers with condenser) | 2X-15A 2KW | 2X-30A 3KW | 2X-30A 3KW | 2X-70A 5.5KW | 2X-70A 5.5KW | 2X-70A 5.5KW | 2X-90A 2KW | ||||||
Vacuum Pump (for the dryers without condenser) | SK-0.8 2.2KW | SK-2.7 4KW | SK-3 5.5KW | SK-6 11KW | SK-3 5.5KW | SK-6 11KW | SK-6 11KW | ||||||
Weight(kg) | 250 | 600 | 800 | 1400 | 1400 | 2100 |
Exhibition
Company Profile
Changzhou Haomai Drying Engineering Co., Ltd. Specializes in Spin flash dryers, centrifugal spray drying equipment, vibrating fluid bed dryers and other equipment R & D, manufacturing, business and related export services. The factory is located in Sanhekou industrial park, Zhenglu town, Changzhou City, Jiangsu Province. Over the years the design of equipment involved in pharmaceuticals, chemicals, pesticides, electronics, mining, food, dyes, pigments and other areas, and sell our products throughout the whole country.
Haomai not only with work experience in a group of more than a decade of lean engineering and technical personal and senior management, but also has a number of excellent production staff. Their research, design, service and so has an excellent ability for many years they concentrated on studying in practice wrap-up, God help those who help themselves, a deep understanding of effective guarantee for the quality of customers' products.
Facing with the global energy conservation issue, facing the fierce market competition, Haomai people do not pursue the company's output value and profit maximization, but seek the best product quality. Good quality is our goal and direction of success. Energy conservation is the secret weapon for us to stand out from the crowd. The most energy-saving equipment is also the social responsibility of our heroic people. Over the years, the equipment we designed has achieved good economic and social benefits in various industries. In the face of the past, we are not satisfied; we are working hard to move toward higher goals.
FAQ
Q: Where is your factory?
A: We are located in Changzhou City which about 150km away from Shanghai.
Q: What’s the quality control procedure?
A:We have an experienced technical team to support and provide solutions to meet the project requirements of our clients. We are certified with ISO9001 quality management system. We are following a strict quality control procedure to ensure the product quality.
Q: What is the warranty period?
A: 24 hours timely response of mail and phone calls. The warranty period for non-artificial damage is 1 year after delivery of goods.
Q: What is the payment term?
A: Our regular payment term is: 30% TT in advance, 70% TT before shipment.
Q: Does your price include freight?
A: Our usual price is based on FOB Shangha. We can provide CIF quote upon request.
A: We are located in Changzhou City which about 150km away from Shanghai.
Q: What’s the quality control procedure?
A:We have an experienced technical team to support and provide solutions to meet the project requirements of our clients. We are certified with ISO9001 quality management system. We are following a strict quality control procedure to ensure the product quality.
Q: What is the warranty period?
A: 24 hours timely response of mail and phone calls. The warranty period for non-artificial damage is 1 year after delivery of goods.
Q: What is the payment term?
A: Our regular payment term is: 30% TT in advance, 70% TT before shipment.
Q: Does your price include freight?
A: Our usual price is based on FOB Shangha. We can provide CIF quote upon request.
Delivery Terms | FOBShanghai. The delivery time is 50 working days from advance payment received and technical drawings confirmed. |
Payment Terms | 50% deposit TT in advance, 50% balance shall be paid by TT before shipment. |
Packing | Seaworthy Packing |
Warranty | The warranty period for non-artificial damage is 1 year after delivery of goods. |
