High-Speed Sugar Milk Tablet Candy Marshmallow Twist Chocolate Automated Material Mint Candy Pillow Packing Machine

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Description

Attention:

---1.All prices and parameters shown above are automatically generated by the system, if you want to know the exact
information, please click "Contact Supplier" to send mail to us.

---2.Because of the time difference, we suggest that you can choose to send us an inquiry instead of online chat.

3.When sending us an inquiry or message, please tell us your Email or WhatsApp/Wechat/Skype .etc, then our sales manager can contact you quickly.

Product Description

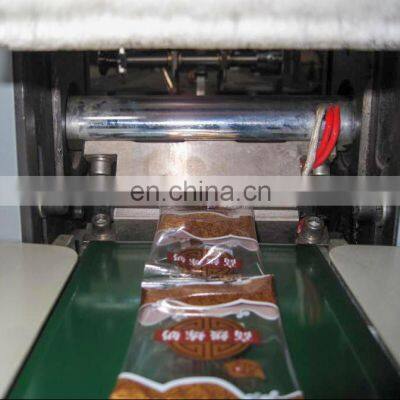

KD-260C Horizontal Packing Machine is a kind of advanced equipment applicable for such different materials as composite film,paper film and aluminum film to pack various solid and regular-shaped objects.

Can Be Applied to:

Food ( snack bar, bread, cookies, ice lolly cake, chocolate ), Plastic(cutlery, tray ), Hardware, Soap, Sponge,Tissue, Card etc.Packaging various kinds of regular objects.

Technical Parameters

Model	KD-260	KD-350	KD-550
Max.Film width	260mm	350mm	550mm
Max capacity of packing	20-120 pcs/ min
Film thickness	0.03-0.08mm
Bag Length	60-300 ( Do not exceed this size )
Packing width	25-260mm	25-350mm	25-550mm
Packing Height	≤80mm
Power Supply	220V 2.4 kW
Overall dimensions	26007504500mm	35008804500mm	38009204500mm
Total Weight	680kg	700kg	700kg

Equipment introduction

Main Features:
1.Dual inverters control, bag length can be set and cut in one step.

2.Computer interface operation, convenient and quick parameter setting.
3.PLC control, stable performance available for upgrade.
4.High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
5.Temperature independent PID control, more suitable for packaging different materials.
6.Using double encoder enables stable performance.

Optional accessories:
1:Date Coder

2:Touchable Screen
3:Automatic Punching Device
4:Alternative sealing patterns and notch
5:Auto labeling device
6:Deoxidizer chute device 7:Gas flushing device

COLOR CODE TRACKER

High sensitivity color tracking, accurate perception of sealing position, reduce the loss rate.

HORIZONTAL SEAL

There are two temperature PID intelligent thermometer, independent control, can be set to adjust the packaging film temperature,
to achieve good packaging effect.

END SEAL

Set the number of packages and it will stop automatically. The film will not stick on the cutter, prolong the life of the cutter,
and will not waste the film.

304 FEEDING PLATE

Using 304 food grade stainless steel material, packaging products are safer, better corrosion resistance, longer machine life.
