Home > Manufacturing & Processing Machinery > Pharmaceutical Equipment & Machinery > Pharmaceutical Packaging Equipment > ZH-120D Vertical Type Automatic Cartoning Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2012
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ZH-100 Automatic Carton Machine for Capsule Pharmaceutical MachineNegotiableMOQ: 1 -
High Speed Aluminum Plastic Blister Packing Machine And Cartoning MachineNegotiableMOQ: 1
-
Tablet/capsules Blisters Aluminum Plastic Blister Packing Machine and Cartoning Machine Production LineNegotiableMOQ: 1
-
Multi Functional Semi Automatic Cartoning Machine for Bottle Soft Tube Blister, Carton Box Packing MachineNegotiableMOQ: 1
-
Automatic Cartoning Packaging Machine Multifunctional Automatic CartonerNegotiableMOQ: 1
Warm hint:
1 -- Because the exchange rate is changing, the specific price of the machine may also change.
1 -- Because the exchange rate is changing, the specific price of the machine may also change.
2 -- Our machines can be customized according to your requirements, we also provide you with complete packaging line design services. Each of your products has its own optional solution.
3 -- Because of the time difference, online chat may not get a reply. Please click "contact supplier" or"send inquiry" to contact us.
3 -- Because of the time difference, online chat may not get a reply. Please click "contact supplier" or"send inquiry" to contact us.
Product Description
Pouch Cartoning Machine is suitable for packing AL/PL Blister, bottle, Pillow Type Bags and other related similar content compact automatic leaflet folding, box opening and loading, batch number embossing as well as sealing technology processes. (Options hot-glue device extra)
Pouch Cartoning Machine adopts PLC Control. Optical detect every part of the machine. The machine will stop automatically and trouble display when machine running exceptional in order to solving trouble in time. This machine can be used separately and also connect with Blister Packaging Machine online.
Features
1) Rejection automatically if no product, nonstandard height or lack of leaflet.
2) Stop automatically if incorrect position of products into carton.
3) Stop automatically if no cartons or out of leaflet continues.
4) Easy to change to different products.
5)Protecting automatically for overloading.
6) Automatically display device for speed and finished products counting.
Technical Parameters
Steady production speed | 50-100 cartons/min |
Grammage (Unfold Leaflets) | Between 60-70g/m2 |
Size range (Unfold Leaflets) | (80-250) *(90-170)mm (L×W) |
Fold range (Unfold Leaflets) | (1-4 )fold |
Grammage(Carton and blister ) | Between 250-350g/m2 |
Carton Size mm(Carton and blister ) | （65-125）*（30-85）*（12-50）mm |

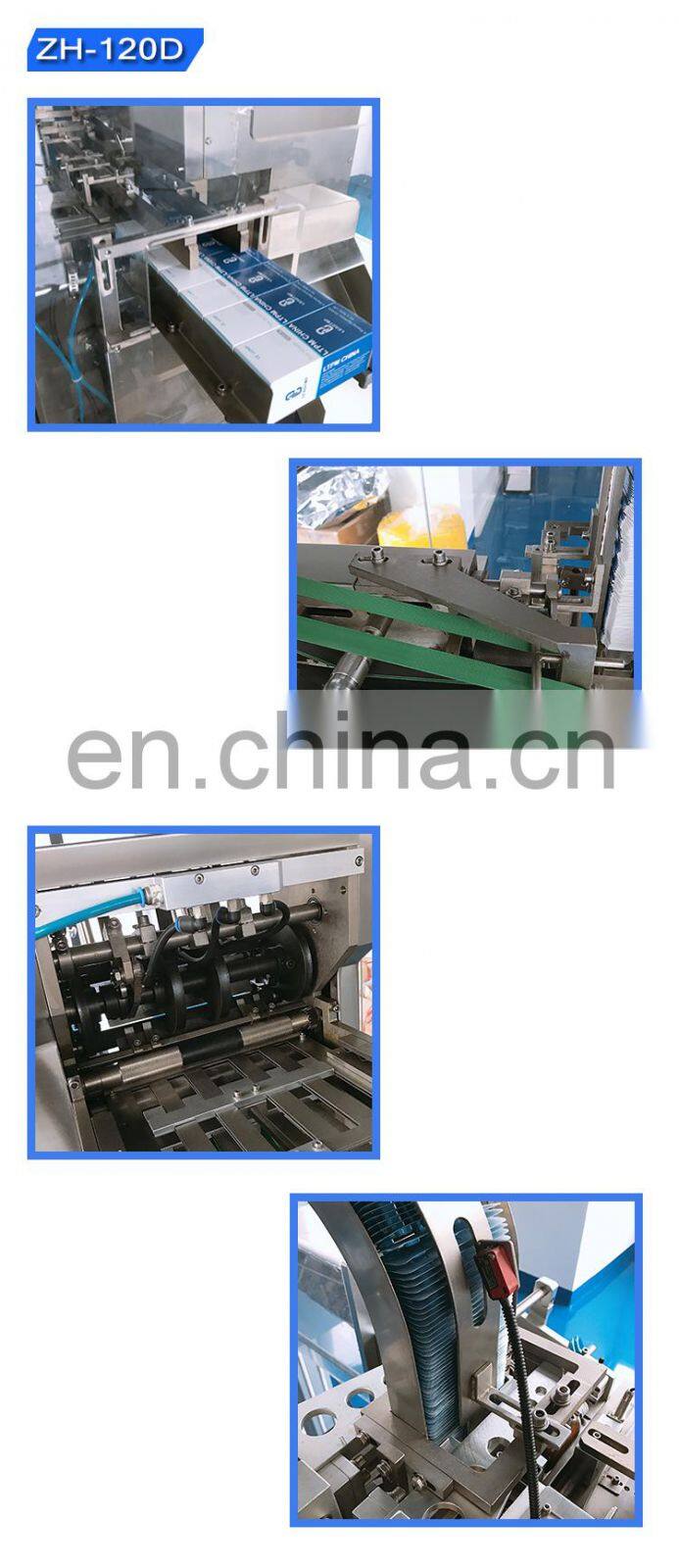

Detailed Images

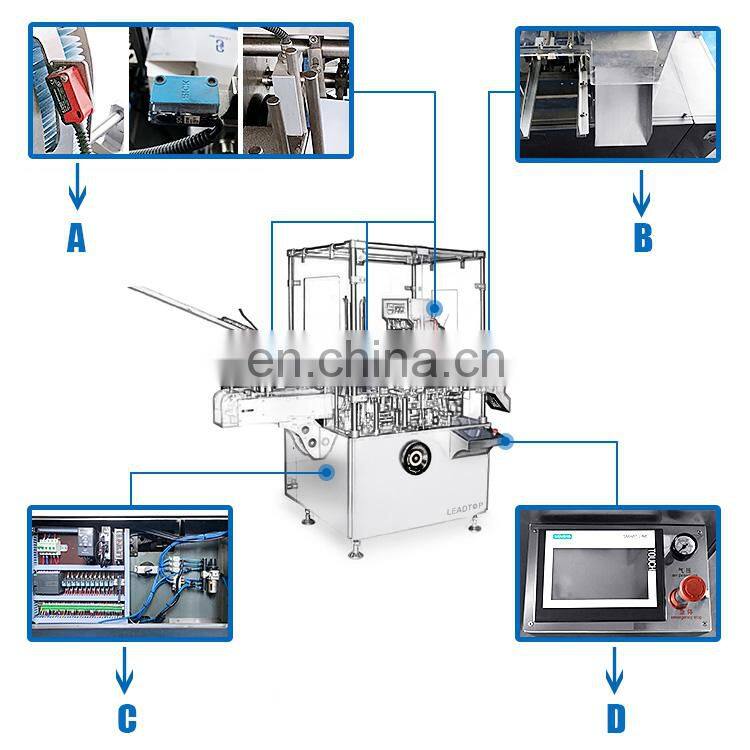

A.LIGHT SCANNING SENSOR
Detection points are densely distributed in various workplaces
B.AUTOMATIC SCRAPING
The unqualified product detected during operation are automatically pushed to the scrap window
C.INTERNAL STRUCTURE
Neat and orderly wire arrangementlong service life
D.PLC TOUCH SCREEN
High sensitivity touch screenmultiple working mode switching
Application Products
Related Products
Company Profile
Our Company
--Since year 1996, LTPM CHINA had started manufacturing and supplying Pharmaceutical and food packaging machines such as Bagpackaging system, Bottling Line, Liquid filler, Blister machine, Capsule filling machine, Liquid Filler, Cartoner, etc.
--LTPM CHINA designs and manufactures different types of packaging lines for customers, including standard or non-standard models.
--We have now 12 engineering technical person for technology improvement. Serve better and Offer the best industrial Solution always become our target.
--We have now 12 engineering technical person for technology improvement. Serve better and Offer the best industrial Solution always become our target.
Our Machinery Manufacturing Workshop
Imported CNC Machining Centre makes all parts process accurate. Own R&D team with more than 20 years engineering expereince, can customize the equipment and packaging line to your satisfaction.
Professional Business Team
Warm, professional business team, careful response to your inquiry, timely response rate of more than 93%, higher than the average level of the industry.
Our Certificates
ISO, CE, SGS, BV Certified Company.
Packing & Shipping
All machine delivery with anti rust spray, film wrapping and Sea shipping affordable wooden box.
FAQ
Q: What price terms you offer?
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.
Q: What payment terms you take?
A: TT, LC, other terms are also workable.
Q: Will you help with installation and stuff training?
A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should
bear our technician's round tickets, accomodation, food and subsidiary USD100/day.
Q: How can I visit your factory?
A: Our factory is located in Ruian city Zhejiang Province.
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.
Q: What payment terms you take?
A: TT, LC, other terms are also workable.
Q: Will you help with installation and stuff training?
A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should
bear our technician's round tickets, accomodation, food and subsidiary USD100/day.
Q: How can I visit your factory?
A: Our factory is located in Ruian city Zhejiang Province.
Just let us know your scheduel in advance and we will arrange everything for you!
Any other doubts about our machine, please feel easy to contact with us.
