Product Description
Product Description
Simple Introduction:
LTEC-8 Automatic Electronic counting machine is special for counting tablets, soft gelatin, hard capsule and chewing gums, etc. This machine adopts 8 sets imported counting sensor for counting with 8 Guiding Way and two head. The advantage of the machine is no need change mould when you change the counting object, only adjusting the counting table height by Easy Adjust wheel. The machine comes with Touch screen operation and PLC Control for convenient running.
Model Name | LTEC-8 |
Application | 1. Filled capsule(00-5#) 2. Soft Gelatin capsule 3. chewing gum 4. tablet 5. other solid object under machine range |
Hopper Volume | 20L |
Capacity | 10-20bottles(80-100 pcs/bottle)/min |
Filling Quantity | 2-9999pcs/bottle (adjustable) |
Bottle Size | Diameter: 30-75mm Height:40-250mm |
Counting Size | Thickness: 3-10mm Diameter: 3-15mm Length: 3-30mm |
Compressed air | 0.5Mpa |
Machine Weight | 120kg |
Machine Size | 660*1280*780mm |

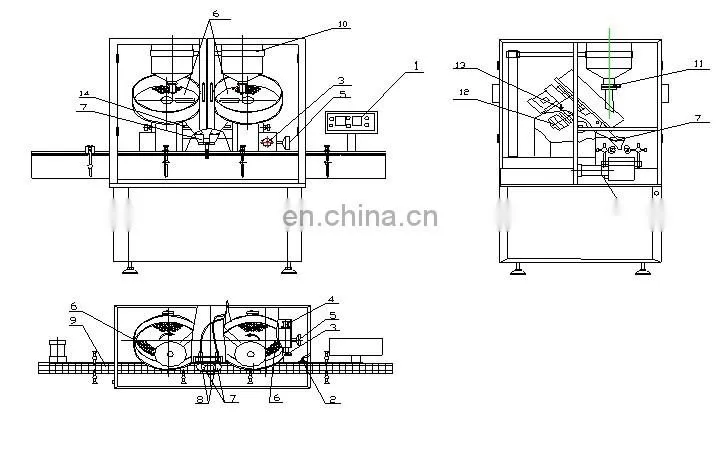

Details:
1.Touch Screen 2. Detection Sensor 3.Valve Adjust Wheel 4. Controlling Cam
5.Hand Wheel 6. Counting Mould 7. Dropping Hopper 8. Sending Valve
9.Conveyor Belt 10. Feeder 11. Feeding Adjusting 12. Vibration Adjust
13. Angle Adjust 14. Dedustor Mouth
Feature:
Compatibility, high accuracy, wide application and use of the Company's original anti-dust photoelectric detection of high technology, can count Tablets (including special-shaped tablets), capsules, soft capsules (transparent, opaque), pill count to bottling;
Vibratory cutting drugs do not damage;
A high degree of intelligence, with no bottle is not the number of self-fault detection alarm and many other control functions;
Compact structure, stability and durability, and no regular replacement parts, small footprint, the use of low-cost;
To facilitate the replacement of species, can automatically take-off and landing, demolition cleared without any tools, convenient and quick;
Chinese dialogue control panel, can store 10 ~ 20 group of species parameters, adjusted to facilitate the use of special;
Fully automatic operation, with the Upper and Lower Union Road, intelligent control of processes, coordination, and no special operation, labor-saving devices.
Low prices, especially for small-volume, variety and more manufacturers use.
Control chip imported to the United States, photoelectric sensors for Taiwan's imports.
Detailed Images
Foe more information ,please contact us~
After Sales Service
Installation and after sales service:
Installing and Commission: We will install and test the machine in best working condition before shipment. Ifcustomer requires our technician to adjusting the machine and train technician at arrival place, we will send technician there. All our expenses including round-trip air ticket to the nearest airport, local conveyance to your factory, Lodging & Boarding expenses shall be payable by you. In case the stay of our technician, the service charges US $ 50 per day will be charged extra.
Warranty Period: There is five year for fully machine guarantee. And in this year if the machine broken caused by Mechanical problem, all of the spare part is free. The service of the machine all though the machine’s life.
After sales service: 1. we have seven technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.
Related Products
Company Introduction
Packing&Shipping
FAQ
Q: What price terms you offer?
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.
Q: What payment terms you take?
A: TT, LC, other terms are also workable.
Q: Will you help with installation and stuff training?
A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should bear our technician's round tickets, accomodation, food and subsidiary USD100/day.
Q: How can I visit your factory?
A: Our factory is located in Ruian city Zhejiang Province. Just let us know your schedule in advance and we will arrange everything for you!
Any other doubts about our machine, please feel easy to contact with us.
