CALT 38mm Measuring Wheel Encoder Textile Counter Meter

CALT 38mm Measuring Wheel Encoder Textile Counter Meter photo-1

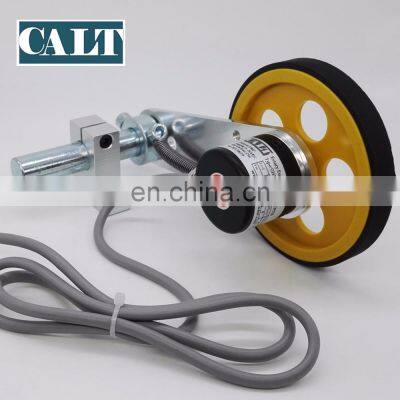

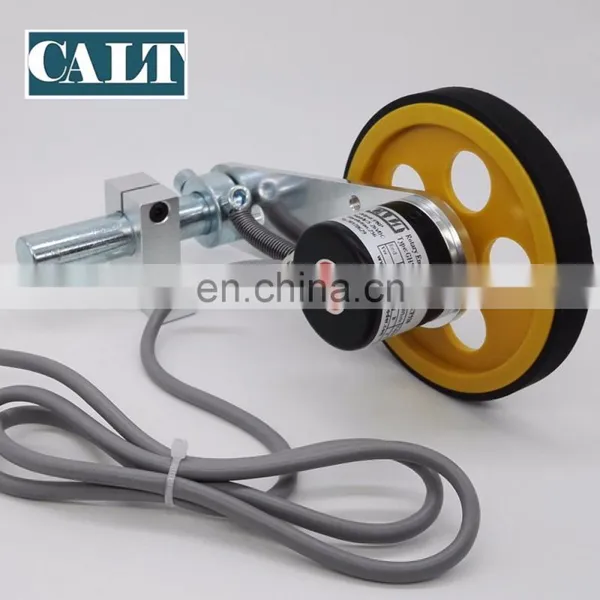

CALT 38mm Measuring Wheel Encoder Textile Counter Meter photo-2
CALT 38mm Measuring Wheel Encoder Textile Counter Meter photo-3
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2010
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Product Description

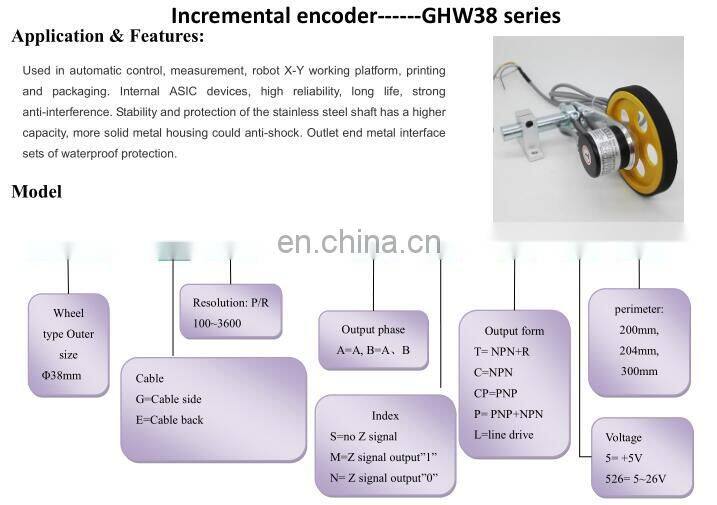

CALT 38mm measuring wheel encoder textile counter meter

Used in automatic control, measurement, robot X-Y working platform, printing and packaging. Internal ASIC devices, high reliability, long life, strong anti-interference. Stability and protection of the stainless steel shaft has a higher capacity, more solid metal housing could anti-shock. Outlet end metal interface sets of waterproof protection.

Other outer size encoder is available, just see the above selection guide and it can help you to come out the model number of the right encoder you are looking for.

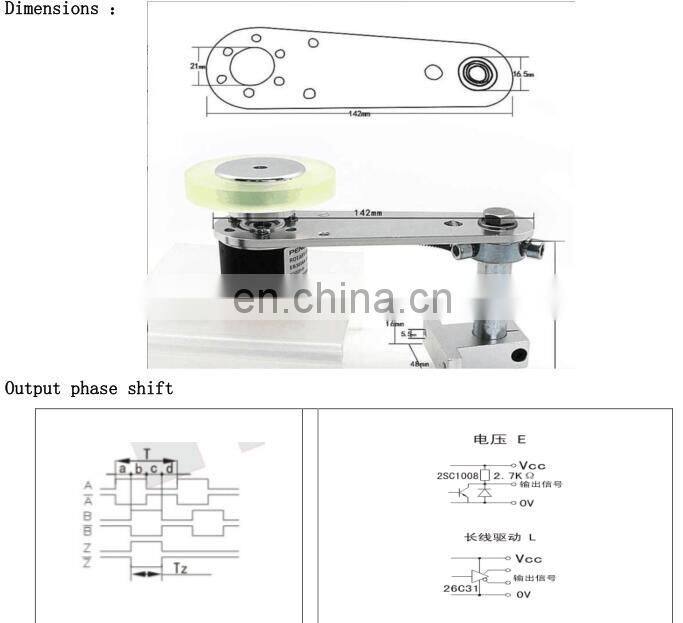

Dimensions
Related product

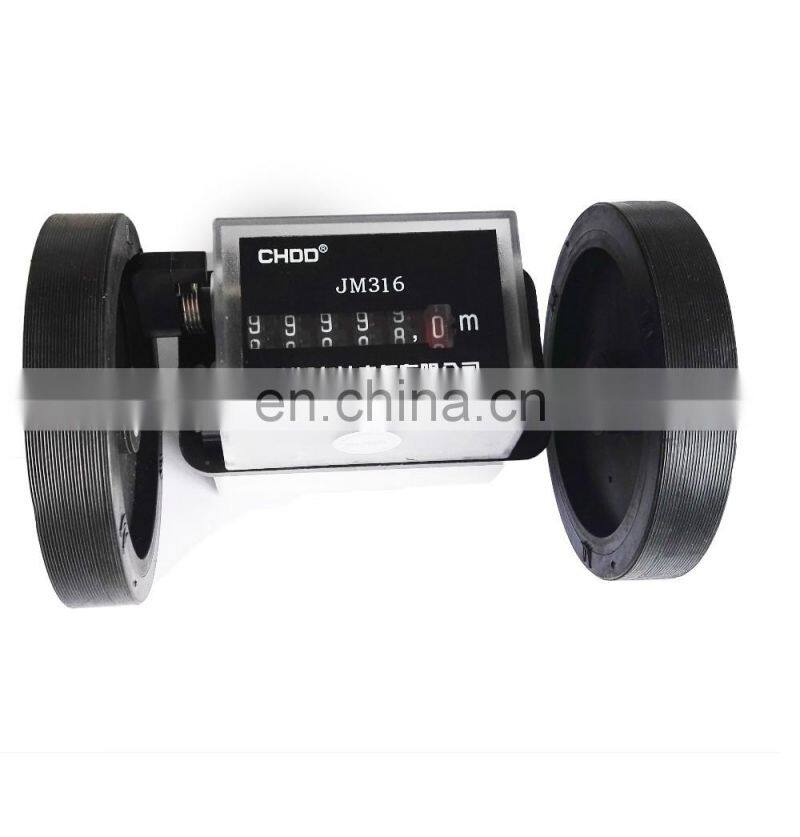

JM316 Mechanical length meter counter

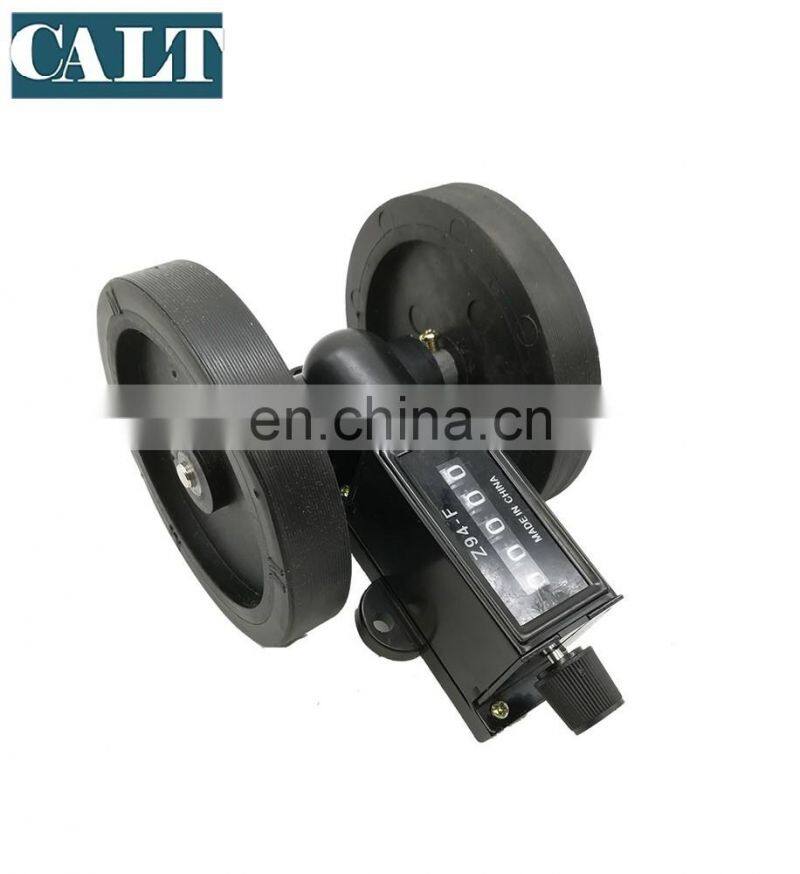

Z94-F Mechanical length meter counter

CWP-S800 Draw wire displacement sensor, analog signal

GHW52 length measuring wheel encoder, 300mm perimeter

CWP-M3000 Draw wire displacement sensor, analog signal

CESI-M2000 Draw wire displacement sensor, incremental digital signal

certifications
Our Company

Shanghai Qiyi Electrical & Mechanical Equipment Co., Ltd. is a professional rotary encoder supplier, located in Chinese business and port center, Shanghai. CALT brand product ranges: Optical incremental rotary encoder, single-turn and multi-turn absolute encoder, draw-wire position sensor and couplings, and other instruments, which widely used in CNC machinery, textile machinery, steel rolling machinery, linear guide system, hydraulic system, lifting machinery and servo motor, all get a very good reputation! Qiyi company has got independent import and export qualification in 2013, CALT brand products have been exported to Southeast Asia, Europe, America and Russia and other countries and regions in the world.
