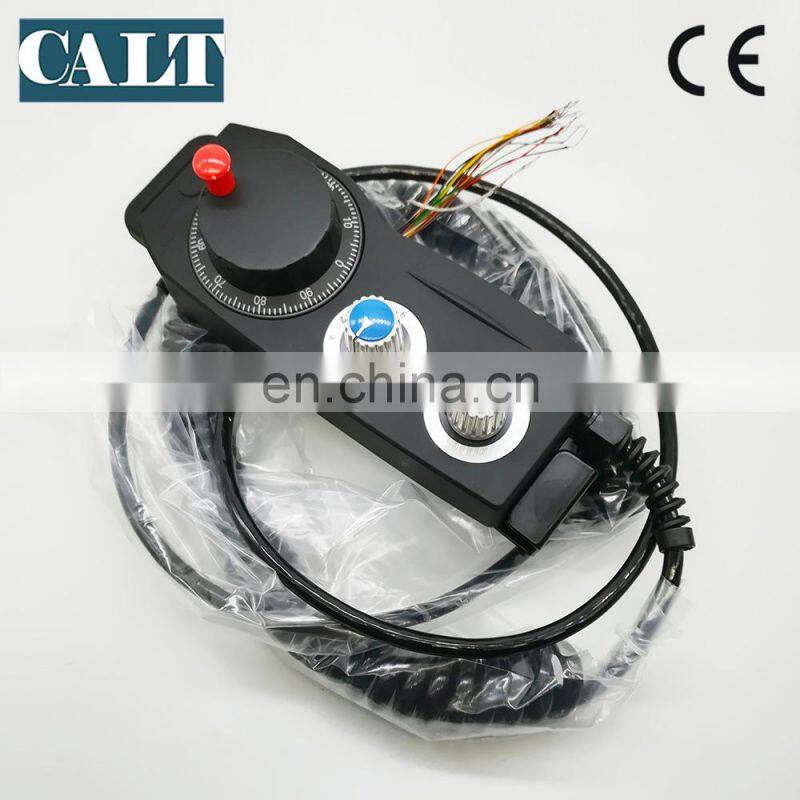

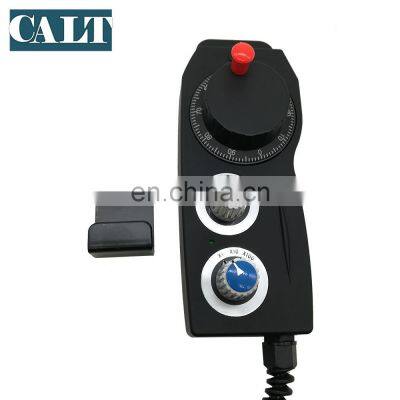

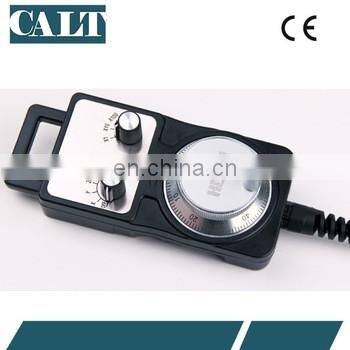

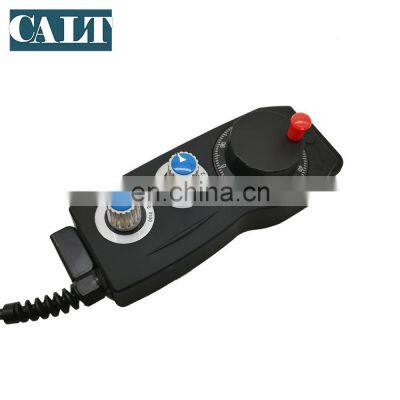

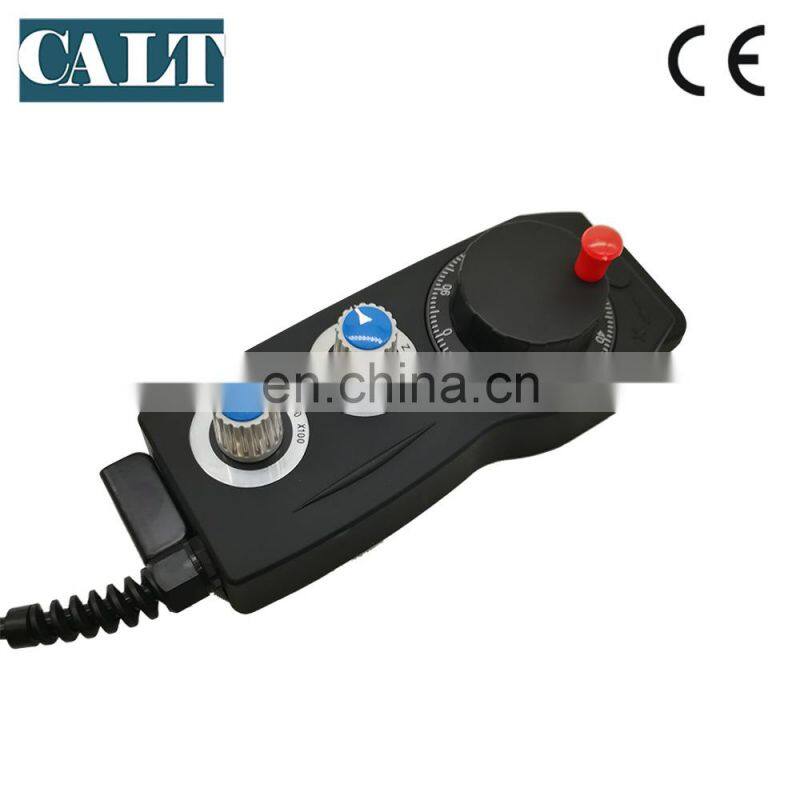

5~12V Hand Wheel Encoder 100ppr SK-B-021-100 Manual Pulse Generator for Fanuc

shell with high-strength materials, impact resistance, shielding braid network signal transmission line anti-interference, wear-resistant oil. Encoder using non-contact optical detection structure, millions of times after the use of precision unchanged. (MITSUBISHI), FANUC (FANUC) system / axis X, Y, Z, 4,5,6, and the other is used in CNC machine tools and automation equipment.
[product manual]:
1.pulse generator core using high-quality encoder, accurate scale, high precision, good texture, feel good
2. DC 5V or 12V or 24V power supply system optional
3. Provide 25PPR or 100PPR pulse number output
4. a variety of output interface types: voltage (single-ended), differential, open collector output (Open Collector), and optocoupler output and other output to choose from, with a variety of applications
5. support multi-axis use (up to 11 axes)
6. with power indicator (LED, DC12V ~ 24V)
7. back cover with powerful magnet device
8. standard version with 4 m spring wire, wire to ensure that 20 million times the tensile life
9. dust and waterproof design (IP65)
10. simple installation, high compatibility
Currently on the market to see the system we can adapt to this hand wheel, the specific reference is as follows:
1. SK-B-021-100 - signal (AB), voltage (5-12v), pulse (100PPR) for the fanuc, Weihong, wide number, Beijing carved and other systems
2. SK-B-022-100 - signal (AB-A-B), voltage (5v), pulse (100PPR) for Siemens, Po Yuan, the new generation, hair grid, Kane Emperor, the public and other systems
3. SK-B-401-25 - signal (AB), voltage (5-12v), pulse (25PPR) suitable for Mitsubishi and other systems
Unlisted systems simply tell us the type of handwheel used and the number of pulses can be selected.
