Origin & Good Price Mitsubishi PLC Q series RS422/RS485 QJ71MB91

Information module

FL-net(OPCN-2)

QJ71FL71-T-F01: 10BASE-T, 100BASE-TX

QJ71FL71-B2-F01: 10BASE2

QJ71FL71-B5-F01: 10BASE5

QJ71FL71-T: 10BASE-T

QJ71FL71-B2: 10BASE2

QJ71FL71-B5: 10BASE5

MODBUS ®

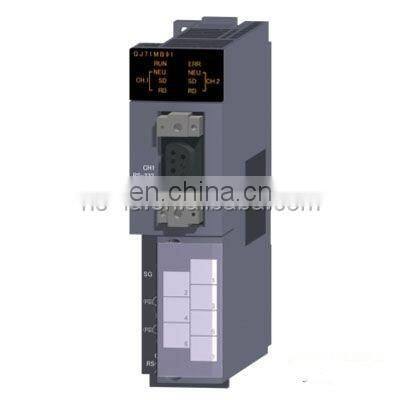

QJ71MB91: MODBUS ® RTU/ASCII, RS-232, RS-422/485 configurable as master or slave

QJ71MT91: MODBUS ® /TCP 10BASE-T/100BASE-TX configurable as master or slave

AS-i

QJ71AS92: Master station, AS-Interface Specification Version 2.11 compatible

MODBUS ® interface module

RS-232 1ch, RS-422/485 1ch ······································ QJ71MB91

10BASE-T/100BASE-TX ················································ QJ71MT91

» Using the master function, communicate with 3rd party MODBUS ® compatible slave devices.

» Slave mode is also supported, which allows communication with other MODBUS ® masters such as 3rd party programmable controllers.

» Using the QJ71MB91 synchronization function, a master station may be connected to CH1 (RS-232) and communicate with multiple slaves connected to the CH2 (RS-422/485) interface.

» The QJ71MT91 module is able to operate using the master and slave functions simultaneously.
