Heavy duty 2020 VVS high pressure screw type 80Mpa hydraulic quick coupler

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Description

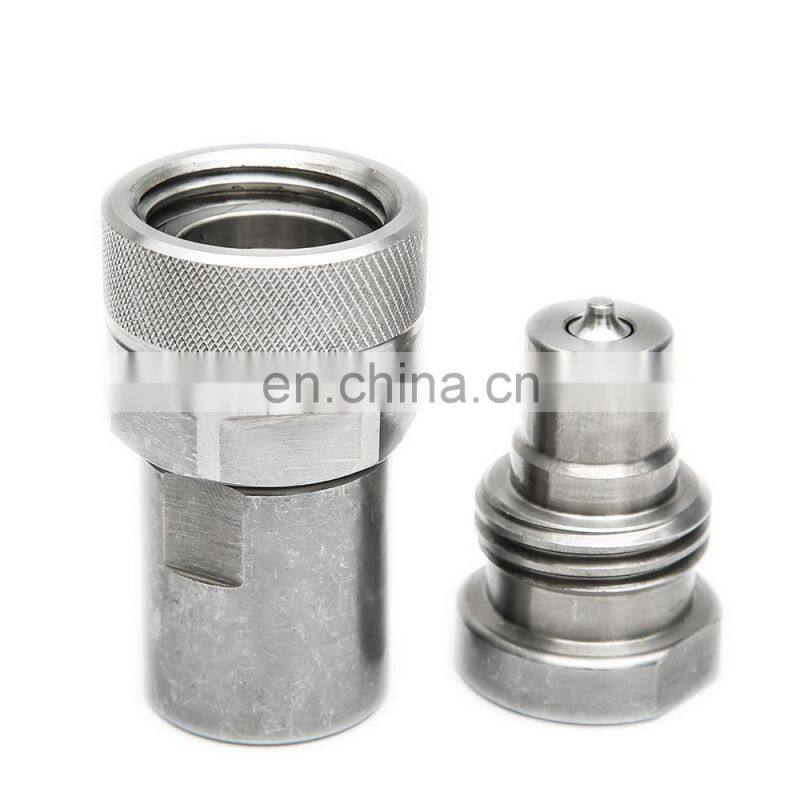

Jindong Free Fit brand VVS series high pressure screw type connect hydraulic quick coupling, Heavy-duty design as standard, O-ring and PTFE back-up ring to weithstand flow surges. Connect with pressure up to 5 Mpa is possible. Can be interchanged with FASTER VVS series.

Specifications

Body size (inch)	1/4	3/8	1/2	3/4	1	1 1/4	1 1/2	2
Rated pressure (Mpa)	80	80	73	73	63	60	40	35
Rated Flow (L/min)	8	18	40	55	100	140	300	1000
Temperature range (NBR): -25℃ to +125℃

Application

Related Products

Why Choose Us

Company Profile

Factory

Workshop

Jindong Hydraulic is National High-Tech Enterprise and the fixed enterprise of hydraulic basic parts of National Electrical and Mechanical Department, our company established in 2004. we are professional manufacturer and exporter that is concerned with the design, development and production of hydraulic parts. Specially for hydraulic and pneumatic quick couplings and hydraulic valves, hydraulic hose and fitting adaptor. We are located in private industrial park of Jianhu County, Jiangsu Province, China, with convenient transportation access.

We have our own design and R&D team for 16 years. We can tailor products to the requirement of our customers worldwide. We have a full range of perfect from raw materials to the finished product quality testing system. Our
products fit the standard of ISO7241-1A, ISO7241-1B, ISO5675, ISO16028. Also, our products can interchange with brand PARKER, FASTER, HANSEN, TEMA, CEJN, NITTO, HOLMBURY, STAUBLI. We have passed ISO9001-2016 certification. All of our products have the CE and TUV certificates.

Our company regard ‘Customer satisfaction, our pursuit’ as our tenet. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
