Help CenterNpt Brass Double Compression Explosion Proof Cable Gland 1 for Armoured Cables
Related Products
-
Nylon Ip68 Waterproof Cable Gland Explosion Proof Cable Gland M75NegotiableMOQ: 1 -
PG29 Anti Bending Nylon Cable Gland IP68 Strain Relief BushingNegotiableMOQ: 1
-
WaterProof IP68 Plastic Cable Gland Thread PG16NegotiableMOQ: 1
-
Hot Sale IP68 Breathable Type Air Vent Cable Gland M12NegotiableMOQ: 1
-
Cable Accessories Waterproof Multiple Insert PG 2 Hole Nylon Cable GlandNegotiableMOQ: 1
Exploded View of Rould Top Brass Cable Glands for Armoured Cables
Material: 1. Nickel Plated Brass for A,C,F parts
2. Nylon PA6 (Flammability UL 94-2) for D part
3. EPDM rubber for B parts, NBR rubber for E parts
Data Sheet of Rould Top Brass Cable Glands for Armoured Cables
| PG | |||||
| Model | Cable Range | H | GL | Spanner Size | Beisit No. |
| mm | mm | mm | mm | ||
| PG7 | 3-6.5 | 19 | 5 | 14 | P 0707BR |
| PG7 | 2-5 | 19 | 5 | 14 | P 0705BR |
| PG9 | 4-8 | 21 | 6 | 17 | P 0908BR |
| PG9 | 2-6 | 21 | 6 | 17 | P 0906BR |
| PG11 | 5-10 | 22 | 6 | 20 | P 1110BR |
| PG11 | 3-7 | 22 | 6 | 20 | P 1107BR |
| PG13.5 | 6-12 | 24 | 6,5 | 22 | P 13512BR |
| PG13.5 | 5-9 | 24 | 6,5 | 22 | P 13509BR |
| PG16 | 10-14 | 23 | 6,5 | 24 | P 1614BR |
| PG16 | 7-12 | 23 | 6,5 | 24 | P 1612BR |
| PG21 | 13-18 | 24 | 7 | 30 | P 2118BR |
| PG21 | 9-16 | 24 | 7 | 30 | P 2116BR |
| PG29 | 18-25 | 29 | 8 | 40 | P 2925BR |
| PG29 | 13-20 | 29 | 8 | 40 | P 2920BR |
| PG36 | 22-32 | 35 | 8 | 50 | P 3632BR |
| PG36 | 20-26 | 35 | 8 | 50 | P 3626BR |
| PG42 | 32-38 | 37 | 9 | 57 | P 4238BR |
| PG42 | 25-31 | 37 | 9 | 57 | P 4231BR |
| PG48 | 37-44 | 38 | 10 | 64 | P 4844BR |
| PG48 | 29-35 | 38 | 10 | 64 | P 4835BR |
Usage of Rould Top Brass Cable Glands for Armoured Cables
Certificate of Rould Top Brass Cable Glands for Armoured Cables
The only factory have VDE for cable gland in Asia
The only factory have UL for full series cable gland

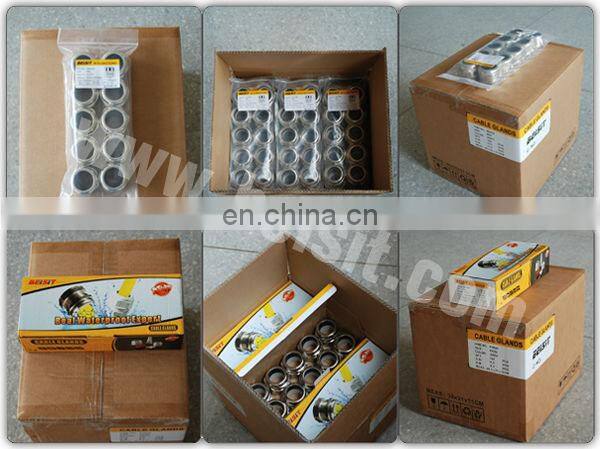

Package of Rould Top Brass Cable Glands for Armoured Cables
A. Common Packing: Certain Pcs + Zip Lock Bag + Label + Export Carton
B. Common Packing:Colorful Inner Box + Export Carton
C. Customized Packing: OEM Label, Inner Box, Blister, etc.
Delivery of Rould Top Brass Cable Glands for Armoured Cables
A.By Courier: 4-7 Working days by special offer
B.By Air: 7 Working days at appointed airport
C.By Sea: 20-25 Working days at appointed port
Services
A. Strong sales team ensures replying you in 24 hours in time.
B. Strong technical team provides technical support for you in all directions in product development anytime.
C. Art designer and graphic design team can design different and fine packing styles for customers
in different market requirements.
Mold and Mold Processing Center
5 Products Development Engineers, 3 mold designers, 49 Technicians, 5 QC.
6-sigma Quality Management System guaranteed.
Precision equipment are mainly sourced from Germany, Janpan, Taiwan, Korea.
Can customized any colors cable gland
Research and Development team can produce any Item & Precise Die Mold
according samples or design drawings
Injection Machine
Why choose us?
1.Product development and special customized ability for clients
2.The independent intellectual property rights and the international certification authority
3.Higher cost performance - product quality exceed international counterparts (TAiWAN and GERMANY)
