Product Description

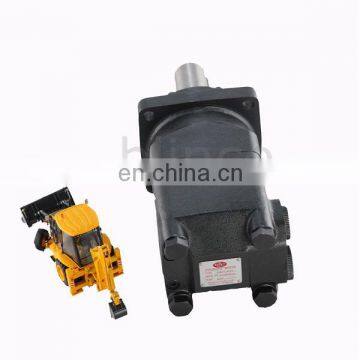

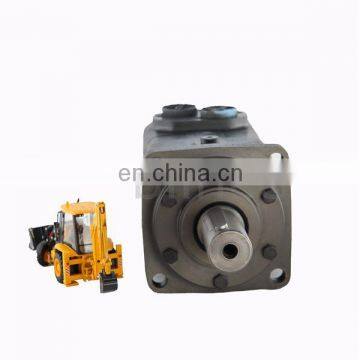

                     blince OMT315-4MD hydraulic motor/orbit motor,vibrating motor hydraulics


OMT/BMT/MT/MLHT orbital hydraulic motors are internal gear motors with rollers and disc distribution (geroler type). Displacement of the motor determines its rotational speed and torque for a given oil flow and hydraulic pressure. Distribution valve is synchronously driven and precise filling chambers.

Rotational speed range: up tp 615 rpm; maximum continuous pressure: up to 200 bar.

Advantages:
Low start-up pressure;
Shaft seal can bear high back pressure;
The motor can be used in parallel or series configurations;
Disc distribution system with automatic compensation for high efficiency;
Tapered roller bearings permit high axial and radial loads;

Multiple displacement, Multiple flanges, multiple shaft types for choose.
Model: OMT160-4MD
OMT series hydraulic motor Displacement range: 160cc,200cc,230cc,250cc,315cc,400cc,500cc,630cc,800cc Mounting flange: 4 bolts square flange Output shaft: 40mm Cylindrical shaft with key Port: G3/4,G1/4. Rotation direction: standard
Model: OMT160-4FD

OMT series hydraulic motor Displacement range: 160cc,200cc,230cc,250cc,315cc,400cc,500cc,630cc,800cc Mounting flange: 4 bolts square flange Output shaft: 38.1mm dia. 17teeth spline shaft Port: G3/4,G1/4. Rotation direction: standard
Model: OMT160-WMD
OMT series hydraulic motor Displacement range: 160cc,200cc,230cc,250cc,315cc,400cc,500cc,630cc,800cc Mounting flange: 4 bolts wheel flange Output shaft: 40mm Cylindrical shaft with key Port: G3/4,G1/4. Rotation direction: standard
OMTZ160-Z4YD
OMT series hydraulic motor Displacement range: 160cc,200cc,230cc,250cc,315cc,400cc,500cc,630cc,800cc Mounting flange: 4 bolts square flange Output shaft: 40mm Cylindrical shaft with key Port: G3/4,G1/4. Rotation direction: standard
OMTS160-DD
OMT series hydraulic motor Displacement range: 160cc,200cc,230cc,250cc,315cc,400cc,500cc,630cc,800cc
Mounting flange: 4 bolts circle flange
Output shaft: bearingless shaft
Port: G3/4,G1/4.
Rotation direction: standard

Applications:

The OMT motors are used in agriculture and forestry. These motors are also used in conveyors, winchers, loaders etc.
Distribution Type
Model
Displacement (lm/r)(cm3/rev)
Max. Operating
Pressure( Bar/Mpa)
Speed Range
(rpm)
Max.output power (KW)



 Axial Distribution
BMP/OMP
36-500
225/22.5
30-1650
13
BMR/OMR
36-375
200/20
30-1220
17
BMH/OMH
200-500
225/22.5
30-430
18.5
BMM/OMM
8-50
200/20
30-1950
3.2
BMJ
65-375
200/20
30-842
17.9
Distribution Type
Model
Displacement (lm/r) (cm3/rev)
Max. Operating
Pressure( Bar/Mpa)
Speed Range(rpm)
Max.output power (KW)
Cont.
Max.output power (KW)
Int.


Disc Distribution
BMSY
80-475
225/22.5
30-800
20
25
BMER
125-750
276/27.6
30-470
18
21
BMT
160-800
240/24
30-705
35
40
BMV
315-1000
280/28
10-446
43
52
Detailed Images

Dongguan Blince Machinery & Electronics Co., Ltd
specializing in design,manufacturing and sales of hydraulic product include hydraulic orbital motor,radial piston motor,hydraulic pump,hydraulic steering control unit,and oil cooler. Orbital motor from small OMM type to large torque OMS,OMT and OMV series.Vane pump include Yuken PV2R series, Vickers V/VQ series and Tokemic SQP series. Radial piston motor like NHM1 to NHM31. We are located in Dongguan city which is an manufacturing city nearby Shenzhen port and Guangzhou port.It is very convenient for us to arrange shipment by sea.

                                                                                    Factory pictures:

                                                                                     Hydraulic motor Assembly line

                                      Hydraulic motor TEST after production and before shipment.

Packing & Delivery

Package:

Size: 1.2 (L) *0.8(W) * 0.8 (D)
Packaging Details:

1. 30/50/100pcs wooden case

2. 100pcs plastic/wooden pallet.

3. 1 piece seperate weeden case.

Exhibition customer
Our Service

Pre-Sales Service

 * Inquiry and consulting support.

* Sample testing support.
* View our Factory.

After-Sales Service

* Teach how to MOUNTING and USE the hydraulic motor.

* Arrange shipment 7-30days and update tracking No.
* Warranty 1 year.

Payment term:

1,T/T, Paypal, Wester union and alibaba Trade Assurance.


2. Delivery time: 7-15days after receiving deposite

3. samples for quality reference are available

4. Shipping port: Shenzhen/Guangzhou as your require.
Related Products

Orbital motor.


OMM/BMM Hydraulic motor, OMR/BMR hydraulic motors,OMP/BMP orbital motor,OMSY/BMSY hydraulic orbital motor, BMT/OMT orbital motors, OMV/BMV orbital hydraulic motor, BMK2/BMK6/BMER hydraulic gerotor motor.

Radial piston hydraulic motor             Steering control unit                    Vane pump                                  Oil cooler
