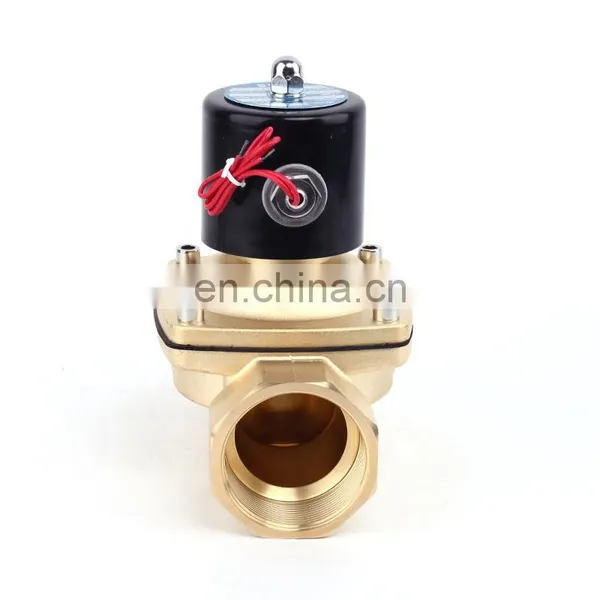

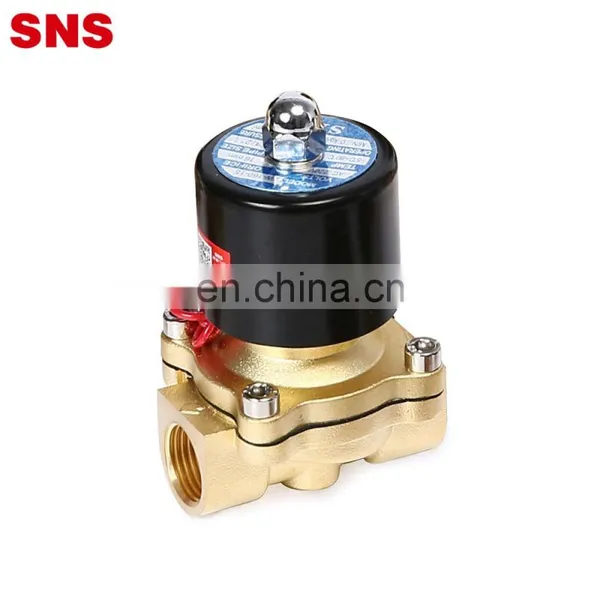

SNS 2W160-15 normally closed Electric Control 1/2 inch Water Solenoid Valve
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
SNS CV Series One Way Nickel-Plated Brass Check Valve Non Return Valve
-
SNS 2W400-40 24v dc brass solenoid valve water
-
SNS 2W500-50 high quality pilot-operated 2 inch water solenoid valve
-
SNS 2W200-20 Wholesale Control Valve Brass Water Solenoid Valve
-
SNS Q22HD Series two position two way copper pneumatic air control cut-off valve
-
SNS aluminium alloy heat resistance air control solenoid valve
Product Description
Banner
CHINA SNS PNEUMATIC
------ Leading supplier of pneumatic components in China -----
Products Description
Model | 2W160-15 |
Fluid | Air/Water/Oil |
Action Mode | Pilot-operated Type |
Type | Normal Closed |
Port Diameter(mm2) | 16 |
CV Value | 4.8 |
Port Size | G1/2 |
Fluid Viscosity | Under 20CS |
Working Pressure | Water/Oil: 0-0.5MPa Air: 0-0.7MPa |
Proof Pressure | 1.0MPa |
Temperature | -5-85℃ |
Working Voltage Range | ±10% |
Material Body | Brass |
Material Seal | NBR |
Coil Power | 20VA |
Model | A | B | C | D | K |
2W160-15 | 93 | 55.5 | 106.5 | 67.5 | G1/2 |
Certifications
FAQ
Q1. Are you a manufacturer or a trading company?
A1. We are a leading manufacturer of all pneumatic products. Welcome to visit our factory at any time.
Q2. What’s the payment term?
A2. T/T, MasterCard, VISA, E-Checking, Boleto, Pay Later.
Q3. How about the delivery time ?
A3. 1-3 days for normal models. For big orders, it takes about 10-15 days.
Q4. What is the standard of package?
A4. Export standard package or special package according to customers' requirement.
Q5. What kind of product quality does your factory offer?
A5. We are top 3 supplier in Chinese market. We offer top quality to our clients.
Q6. Do you accept OEM business?
A6. We do OEM .
Q7. What market do you already sell to?
A7. We already ship to Asia, Europe, North America, South America, Africa, Oceania.
Q8. What kind of certificate do you have ?
A8. We have ISO9001, CE, CCC, etc.
