SNS AD202-04 series pneumatic drain valve automatic tank drain air filter
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
SNS SPHF Series Pneumatic 90 Degree Elbow Male-Female Thread Push To Connect Pipe Fittings Quick Tube Joints
-
SNS JM series High quality air pneumatic hand switch control mechanical valves
-
Single Acting CJPB series standard pin type cylinder for wholesale
-
SNS (SCR Series)Stainless Steel swing clamp piston air cylinders for wholesale
-
SNS high quality CJPB Series Double Acting Pin pneumatic cylinders for wholesale
-
SNS DPS Series Intelligent Industrial Digital Pressure Switch gauge
Product Description

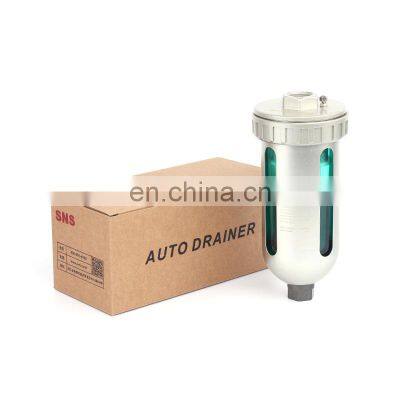

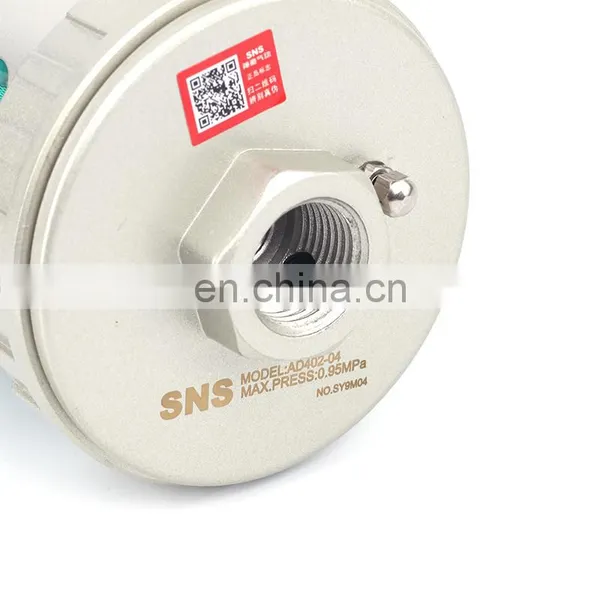

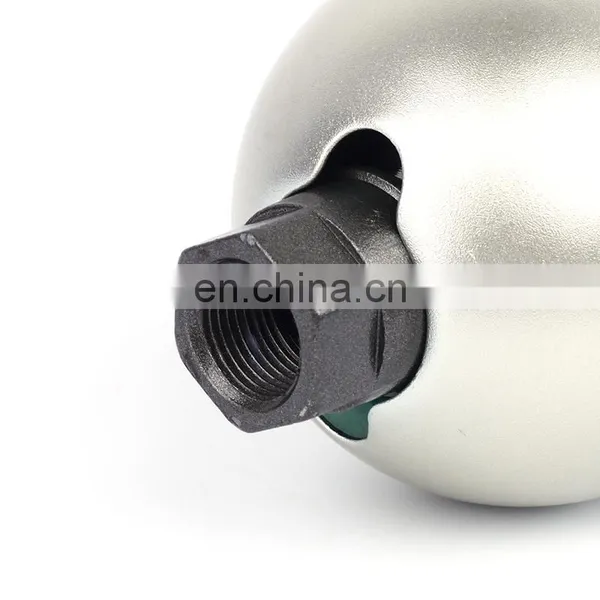

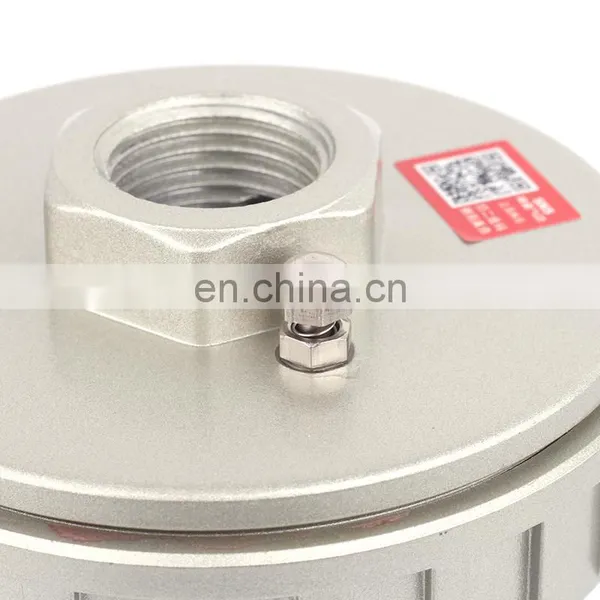

SNS Pneumatic Drain Air Compressorv Valve Automatic Tank Drain, Air Filter Auto Drainer Air Water Trap F.R.L Air Control Unit
Banner
Product Description
| Model | AD202-04 | AD402-04 | |
| Working Media | Air | ||
| Port Size | G1/2 | ||
| Drain Mode | Pipe Φ8 | Thread G3/8 | |
| Max.Pressure | 0.95Mpa(9.5kgf/cm²) | ||
| Ambient Temperature | 5-60℃ | ||
| Material | Body | Aluminum Alloy | |
| Seal kits | NBR | ||
| Filter Screen | SUS | ||
| Model | A | B | C | ΦD | ΦE |
| AD202-04 | 175 | 40 | 32 | 72 | 60 |
| AD402-04 | 185 | 36 | 16.5 | 83 | 70 |
Certificate
Packaging & Shipping
FAQ
Q1. Are you a manufacturer or a trading company?A1. We are a leading manufacturer of all pneumatic products. Welcome to visit our factory at any time.
Q2. What’s the payment term?A2. T/T, MasterCard, VISA, E-Checking, Boleto, Pay Later.
Q3. How about the delivery time ?A3. 1-3 days for normal models. For big orders, it takes about 10-15 days.
Q4. What is the standard of package?A4. Export standard package or special package according to customers' requirement.
Q5. What kind of product quality does your factory offer?A5. We are top 3 supplier in Chinese market. We offer top quality to our clients.
Q6. Do you accept OEM business?A6. We do OEM .
Q7. What market do you already sell to?A7. We already ship to Asia, Europe, North America, South America, Africa, Oceania.
Q8. What kind of certificate do you have ?A8. We have ISO9001, CE, CCC, etc.
