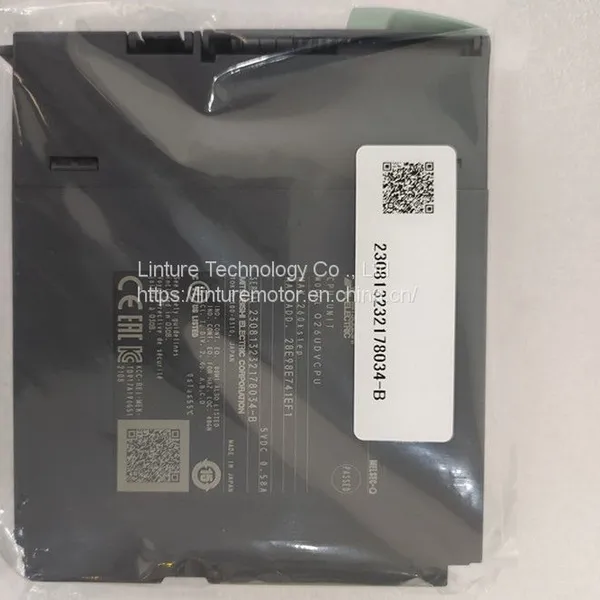

Easy To Record Without Procedures Q26UDVCPU Mitsubishi CPU Moudel

Adapter for mounting DIN rail.

For q38b-e.q312b-e, q612b, q38rb, q68rb, q65wrb, q38db, q312db. 4-axis, sscnet

sub connected q26udvcpu parameter specification. 2-axis / 3-axis / 4-axis

linear interpolation. 2-axis arc interpolation.

Control unit: mm, inch, degree, pulse. Number of positioning data: 600 data /

axis. 40 pin connector.

Wiring is saved through sscnet sub cable connection, and the distance between

stations can reach 50mq26udvcpu

The q26udvcpu parameter specification of the position system that supports the

determination of the origin position through the origin return data setting

operation. In addition, the upper limit switch, lower limit switch and near

point stop signal input can be directly connected to the servo amplifier, which

greatly reduces the wiring demand. Easily realize high-speed positioning

control. Support multiple types of positioning control,

Including q26udvcpu parameter specifications such as 2-4-axis linear

interpolation, 2-axis circular interpolation, speed control, speed / position

switching control, path control, constant speed control, etc.

In addition, software such as "GX configurator QP" can be used,

It is convenient for positioning, setting, monitoring and debugging. RS-232

2ch。 The programmable controller can be programmed and monitored through the

RS-232 serial communication programming tool of qj71c24n (- R2).

Qj71c24n (- R2) has the function corresponding to the public telephone line

modem. It can initialize the modem used and connect with the object device.

Q26udvcpu (communication with built-in Ethernet port) communicates through

remote equipment, programming tools, modems and public telephone lines.

Using the remote password function,

Access to the Q series PLC via the modem function of qj71c24n (- R2) can be

blocked.

Serial communication module q26udvcpu that can collect / change the data of

programmable controller, monitor / manage the collection of measurement data,

etc. (internal Ethernet port communication chapter).

It can realize high-speed and high-capacity communication with high speed of

230.4kbps and large 960 words (in MC protocol communication).

The MC protocol can be used to read / write data in the programmable controller

through external devices (PC, display, etc.).

By selecting the non sequential protocol and using the sequential program for

communication control, between the programmable controller and the external

equipment (bar code reader, measuring equipment, etc.),

Use the local protocol of the external device to communicate with it q26udvcpu

(Communication Chapter of built-in Ethernet port). Capacity: 8m bytes. Support

SD memory card.

High speed universal qcpu supports SD memory card,

Thus, data exchange can be easily realized with PC with SD memory card socket.

In addition, SD memory card and extended SRAM card can be used at the same

time. Therefore, the extended SRAM card can be used to expand the file memory.

The SD memory card can be used to record data files, save a large amount of

annotation data, and guide the operation through the memory card at the same

time. Better user experience data recording function. Easy to record without

procedures.

The collected data can be saved to the SD memory card in CSV format by simply

completing the setting through the special configuration tool wizard,

It can effectively use the saved CSV file to easily create various reference

materials,

Including daily report, generated report and general report q26udvcpu user

manual. These data can be used for data analysis and traceability at startup,

Just insert the SD memory card, and the q26udvcpu parameters and specifications

can be recorded automatically.

Just insert the SD memory card that saves the record setting file into the CPU

to start recording automatically. Even when remote data collection is required,

After receiving the record setting file by mail and storing it in the SD memory

card, you can start recording immediately.
