Home > Products > Site dumper > Mining Dump Truck 3 Ton Mini Dumper Dump Truck Parts

Mining Dump Truck 3 Ton Mini Dumper Dump Truck Parts

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Description

FCY30 Rotary Type Hydraulic 4x4 drive dump truck 3 ton rotating small site dumper

Products Description

Site Dumper FCY30/S /R Technical Specifications
Item			Specifications
Bucket capacity			1.5m3
Rated load			3000kg
Operating weight			2850kg
Grade ability			25º
Min turning radius			4000mm
wheel tread/wheel base			2050mm/1360mm
Overall dimension			"425017002650mm with canopy
Engine	Model	490
		Type	in linedirect injectionwater cooler4 cylinders
		Rated power	38kw
		Max torque	2400r/min
Transmission System	Gearbox	Gear transmission
Transmission System	system	Clutch	dry friction
	Nos of shifts	2 Forward+2 backward shift
		Max speed	24km/hr
		Rear and front axle	4×4,front axle fixed, rear axle swing（+/-110）
Steering	Type	hydraulic steering
Steering		Steering angle	35 degrees on both sides
Hydraulic system	Pressure	16MPA
Hydraulic system		Brake type	Drum brake
Tyre	Size	20.5/70-16
Fuel capacity	Fuel tank	60L
		Hydraulic oil tank	60L
		Optional work device	Self-load
		Cab	Optional

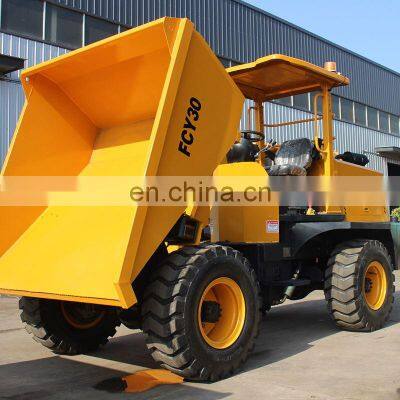

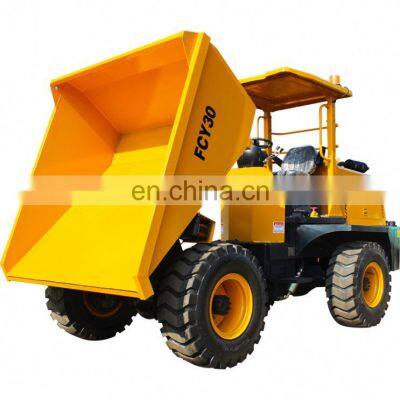

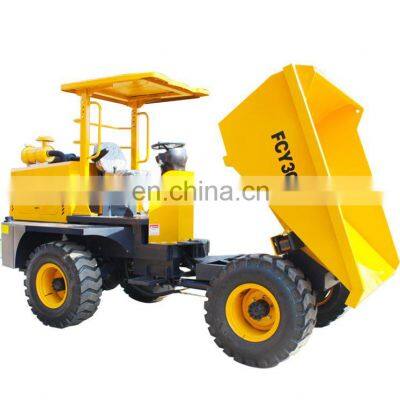

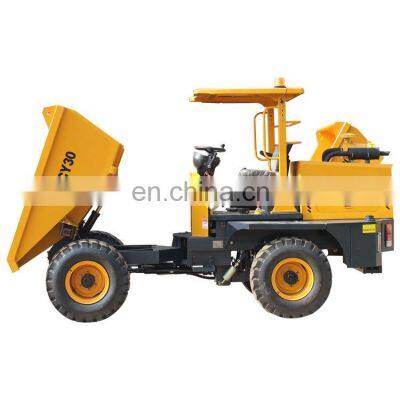

Details Images

Company Profile

FAQ

1.How can I place order?1.How can I place order? A: You can contact us by email about your order details, or place order on line. 2.How can I pay you? A: After you confirm our PI, we will request you to pay. T/T or start order from Alibaba trade assurance 3. Are you factory supplier? A: Yes, we are real factory supplier for over10years, own a super technical team to serve adjusting design for customers 4.How many tons site dumper do you produce ? A:We are specilized in producing site dumper cover 1ton to 10tons. Model:FCY10, FCY20, FCY30, FCY50, FCY70, FCY100. 5. Which brand engine do you have for site dumpers? A:We company choose good quality engine for site dumpers, Changchai, Xichai, Weichai Power engine / cummins engine/ Deutz diesel engine and so on optional. 6. What's the order procedure? A: First we discuss order details, production details by email or TM.Then we issue you a PI for your confirmation.You will be requested to do prepaid full payment or deposit before we go into production.After we get the deposit, we start to process the order.We usually need 7-15 days if we don't have the items in stock.Before production has been finished,we will contact you for shipment details, and the balance payment.After payment has been settled, we start to prepare the shipment for you. More details please ask us online or send inquiry to us,we will answer first time.
