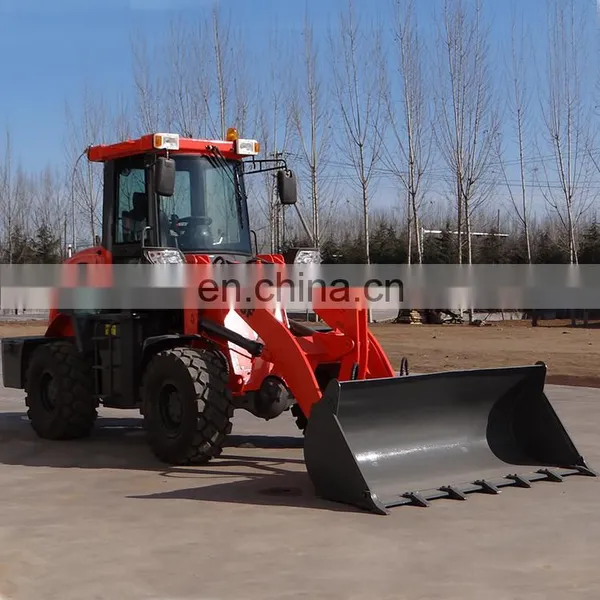

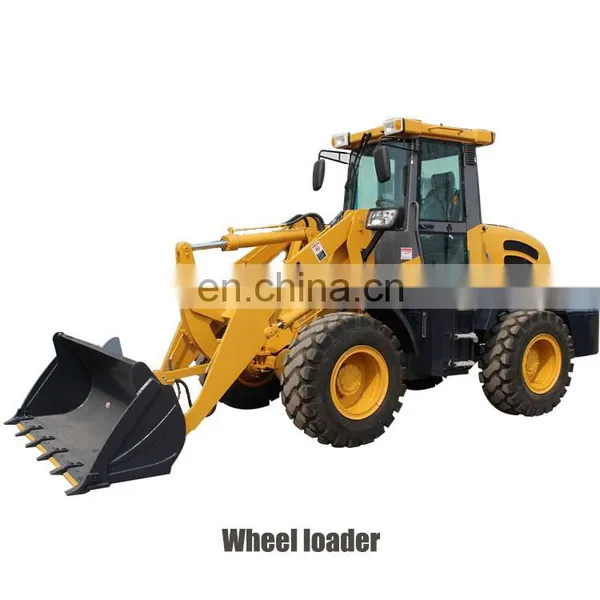

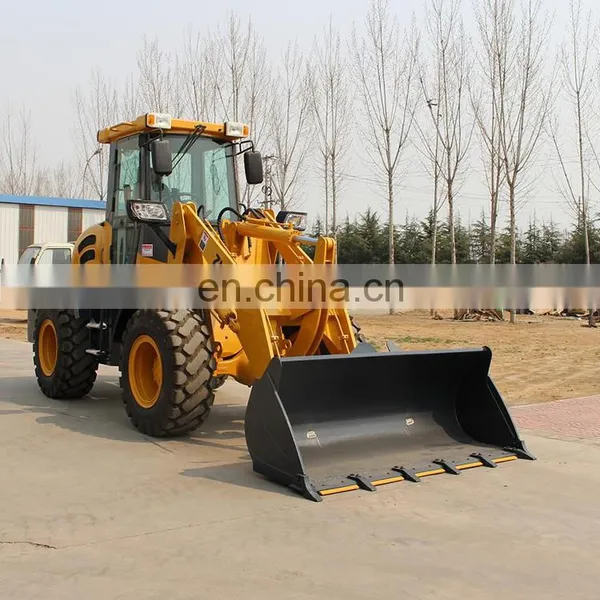

ZL16F 4x4 drive hydraulic small wheel loader/1.6ton loader with quick hitch for sale

Name: ZL16F 4x4 drive hydraulic small wheel loader/1.6ton loader with quick hitch for sale
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

ZL16F 4x4 drive hydraulic small wheel loader/1.6ton loader with quick hitch for sale

Product Description

Performance and characteristic:

Wheel loader model			ZL16F
Engine Details	Model	Weichaihuafeng 4102
		Engine Type	In-line arrangement, Water cooled,4 cycle diesel engine
		Rated Power	47kw
		Rated Speed	2200rpm
Bucket	Bucket Capacity	0.8m³
		Bucket Type	Heavy-duty bolt on teeth
		Max.Breakout Force	32KN
		Rated Load Weight	1600kg
		Operating Weight	3800kg
Overall Dimensions	Overall Length	5500mm
		Overall Height	2700mm
		Overall Width	1650mm
		Max. Discharge Height	2750mm
		Wheel Base	2095mm
		Tread	1360mm
Operating Specification	Transmission System	Hydraulic converter
		Steering system	Articulated Frame with Hydraulic steering
		Min. Turning Radius	3800mm
		Transmission	Hydraulic convertor
Brake System	Service Brake	Four wheel Hydraulic spread-shoed brake
	Parking Brake	Hand Operated
Tire	14.90-16

1.Using direct injection diesel engine as power, with easy start up and low oil consumption

2.Using special drive axle, with strong ability to overcome obstacle
3.Chassis uses hinged structure, with small turning radius and flexible turning, which applies to the operation in narrow space
4.This machine uses hydraulic operation, with simple structure, convenient operation, good performance and reliable quality
5.Widely applying to the construction of agricultural engineering and small and medium building such as road, coal mine,
brickyard, urban construction, kiln factory, stone material factory, prefabricated cement parts factory, etc

Details Images

Weichaihuafeng 4102

Founded in 1946, Weichai is an international multinational group with business segments in power systems, automotive, construction machinery, intelligent logistics, agricultural equipment and Marine transportation equipment. Its subsidiaries are located in Europe, North America and Asia, and its products are exported to more than 110 countries and regions

14.90-16 engineering Tyre.Stable and durable with long life,suitable for kinds of road condition.

Quick hitch allows fast ans safe coupling of the different tool.Solve the handle problems

Different attachments avaliable

Bucket Capacity:1.2 CBM. Length:1800 mm.

Sweeper

Thicknened stone bucket

Enlarged Snow Bucket

Snow Blade,Working Lenght:2200

V-Shape Snow Blade,Angle, Direction Adjustable.Hydr.Turn 30º

Hydraulic Adjustable Pallet Fork

Snow Blower,working capacity:40-50T/Hour.

Wood Grapple-Stronger Vision

4 In 1 Bucket,Have The Function Of Push, Clip, Flat, Shovel.

Front Hoe Digger.

Rotary Auger,Length And Diameter Could Customized.

FAQ

1.How can I place order?1.How can I place order? A: You can contact us by email about your order details, or place order on line. 2.How can I pay you? A: After you confirm our PI, we will request you to pay. T/T or start order from Alibaba trade assurance 3. Are you factory supplier? A: Yes, we are real factory supplier for over10years, own a super technical team to serve adjusting design for customers 4.How many tons site dumper do you produce ? A:We are specilized in producing site dumper cover 1ton to 10tons. Model:FCY10, FCY20, FCY30, FCY50, FCY70, FCY100.

5. Which brand engine do you have for site dumpers? A:We company choose good quality engine for site dumpers, Changchai, Xichai, Weichai Power engine / cummins engine/ Deutz diesel engine and so on optional. 6. What's the order procedure? A: First we discuss order details, production details by email or TM.Then we issue you a PI for your confirmation.You will be requested to do prepaid full payment or deposit before we go into production.After we get the deposit, we start to process the order.We usually need 7-15 days if we don't have the items in stock.Before production has been finished,we will contact you for shipment details, and the balance payment.After payment has been settled, we start to prepare the shipment for you. More details please ask us online or send inquiry to us,we will answer first time.
