Home > Transportation > Tractor & Parts > Tractor > TB 604 Chinese 60HP 4 WD Hydraulic Steering Small Tractor With Shovel

TB 604 Chinese 60HP 4 WD Hydraulic Steering Small Tractor With Shovel

Weifang Map Import And Export Co., Ltd.
TB 604 Chinese 60HP 4 WD Hydraulic Steering Small Tractor With Shovel thumbnail-1
TB 604 Chinese 60HP 4 WD Hydraulic Steering Small Tractor With Shovel thumbnail-2
TB 604 Chinese 60HP 4 WD Hydraulic Steering Small Tractor With Shovel thumbnail-3
TB 604 Chinese 60HP 4 WD Hydraulic Steering Small Tractor With Shovel thumbnail-4
TB 604 Chinese 60HP 4 WD Hydraulic Steering Small Tractor With Shovel thumbnail-5

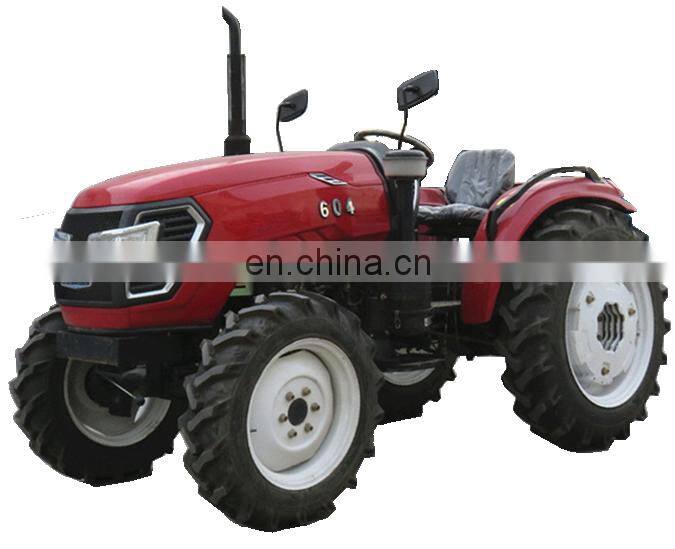

TB 604 Chinese 60HP 4 WD Hydraulic Steering Small Tractor With Shovel photo-1

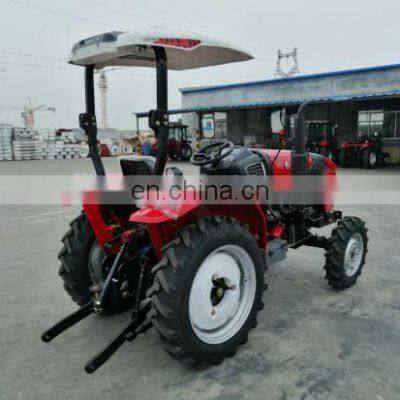

TB 604 Chinese 60HP 4 WD Hydraulic Steering Small Tractor With Shovel photo-2

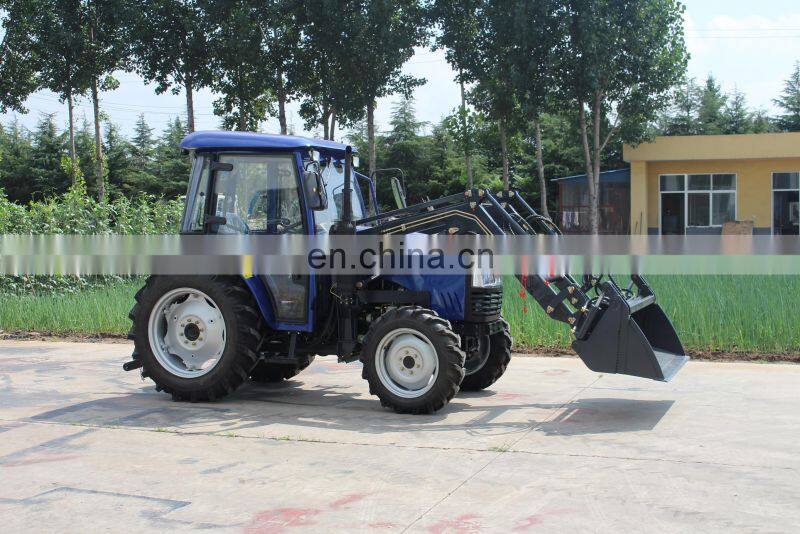

TB 604 Chinese 60HP 4 WD Hydraulic Steering Small Tractor With Shovel photo-3

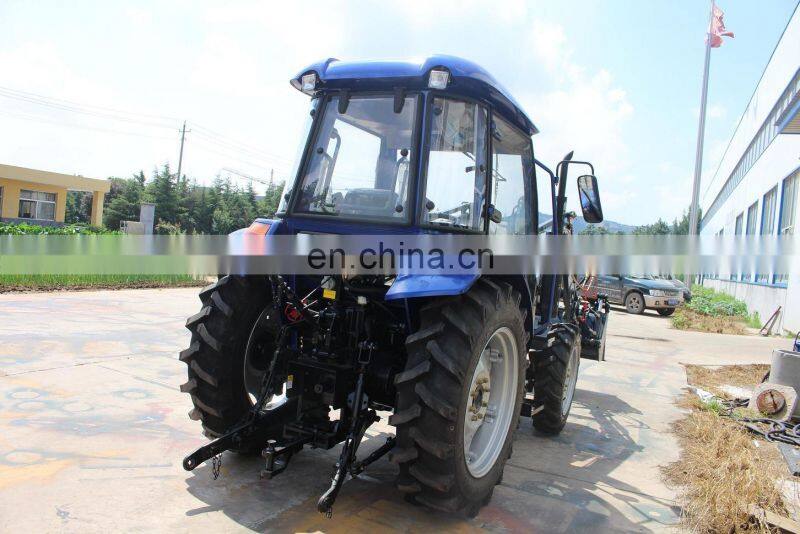

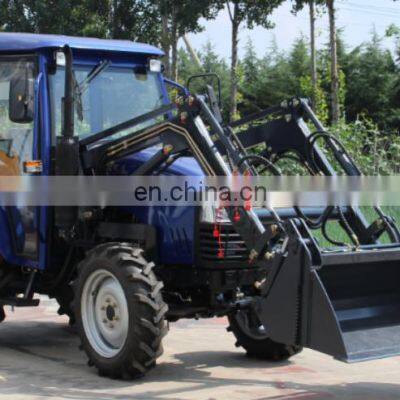

TB 604 Chinese 60HP 4 WD Hydraulic Steering Small Tractor With Shovel photo-4

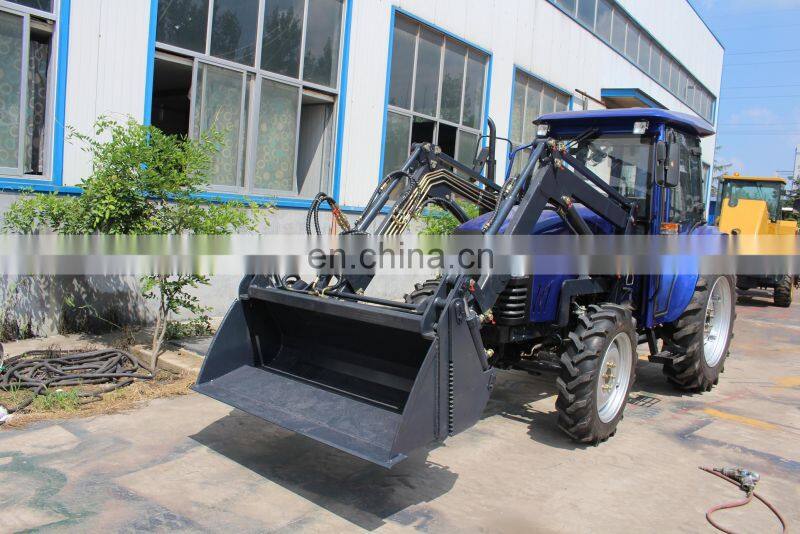

TB 604 Chinese 60HP 4 WD Hydraulic Steering Small Tractor With Shovel photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
1991
Annual Export Value:
US$5 Million - US$10 Million
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
TB 604 Chinese 60HP 4 WD hydraulic steering small tractor with shovel
Product Description
Details Images
Model
TB604
TB804
Type
4×4
4×4
Overall Dimension
（mm）
L×W×H
3700×1710×2300
3900×1795×2300
Tread
Front Wheel
1300
1300
Rear Wheel
1200,1300( usual),1400
1200,1300( usual),1400
Wheel Base
1950
2072
Min. Ground Base
325 (the bottom of steering horizontal pulling rod)
390 (the bottom of steering horizontal pulling rod)
Min. Usage Mass （kg）
2500
2700
Engine
Model
Quanchai4105
Quanchai4108
Type
Vertical, water cooled and 4-stroke
Rated Power（kw）
44.1
58.8
Rated Rev.（r/min）
2400
2300
Fuel
Diesel Oil
Tire
Front & Rear Wheel
8.3-20/12.4-28
8.3-24/14.9-30
Optional Front & Rear Wheel
9.5-24/16.9-30
9.5-24/16.9-30
Clutch
dry-friction, dual stage
Steering
Hydraulic type
Transmission Box
12F+12R Shuttle Shift
Suspension Type
Post Positioned Three-point Suspension Catalogue II
PTO
Type and Rev.（r/min）
Post-position, half-independent or independent, 540/760 or 540/1000
Spline Size
I35 Rectangle Spline with 6 teeth
Equipped with assistive devices

Products Packaging

Similar Products
Company profile and development

Weifang Map Import & Export Co., Ltd. focuses on quality construction machinery, agricultural equipment, has been in Weifang,China for 14 years.
We are Verified Supplier.Now it has become one of the main suppliers of construction machinery.
We produce field tippers, tractor front-end loaders, disc mowers, backhoe loaders, concrete mixers, etc.All the machines are guaranteed for one year.
We can supply you with dump wheel loaders and construction machinery accessories.
The production time is 25-30 days after receiving your deposit. We accept OEM customization.
For some new customers, please do not worry about the problem of cooperation, we willguide you to correctly cooperate with us. That's easy.
We can arrange sea freight for you. You can pick up the machines at the local port in your country.
We accept online business guaranteed by Alibaba transactions. You can pay us by credit card online.
Customer

FAQ

1.How can I place order?1.How can I place order? A: You can contact us by email about your order details, or place order on line. 2.How can I pay you? A: After you confirm our PI, we will request you to pay. T/T or start order from Alibaba trade assurance 3. Are you factory supplier? A: Yes, we are real factory supplier for over10years, own a super technical team to serve adjusting design for customers 4.How many tons site dumper do you produce ? A:We are specilized in producing site dumper cover 1ton to 10tons. Model:FCY10, FCY20, FCY30, FCY50, FCY70, FCY100.
5. Which brand engine do you have for site dumpers? A:We company choose good quality engine for site dumpers, Changchai, Xichai, Weichai Power engine / cummins engine/ Deutz diesel engine and so on optional. 6. What's the order procedure? A: First we discuss order details, production details by email or TM.Then we issue you a PI for your confirmation.You will be requested to do prepaid full payment or deposit before we go into production.After we get the deposit, we start to process the order.We usually need 7-15 days if we don't have the items in stock.Before production has been finished,we will contact you for shipment details, and the balance payment.After payment has been settled, we start to prepare the shipment for you. More details please ask us online or send inquiry to us,we will answer first time.
