Ground leveling machine 719H Motor Grader
Product Description
719H motor grader adopts power shift transmission featuring sing-handle manipulation and electro-hydraulic control. With 6 forward and 3 reverse gears shifting, the vehicle is easy and convenient to operate. It also utilizes a highly efficient hydraulic system with hydraulic lock, enabling normal operation of every unit. Moreover, the fully hydraulic brake system provides high working safety and reliability for the equipment.
|
Overall Dimension |
|
|
Length*Width*Height(To the top of the cab) |
9385*2600*3370mm |
|
Wheel base |
6150mm |
|
Tread |
2120(mm) |
|
Main Technical Specification |
|
|
1 Operating weight |
15800kg |
|
2 Blade length |
4268mm |
|
3 Blade height |
550mm |
|
4 Blade width |
16mm |
|
5 Max lifting height |
450mm |
|
6 Max grading depth |
535mm |
|
7 Min. turning radius |
7400mm |
|
8 Pivot angle frame |
±26° |
|
9 Max turning angle(front wheel) |
±49° |
|
10 Oscillating angle of front axle |
32° |
|
11 Front axle center grond clearance |
610mm |
|
12 Traveling speed(Km/h) |
6 forward and 3 reverse |
|
Diesel engine |
|
|
1 Model |
USA engine 6CTAA8.3-C185 (TIER2) |
|
2 Type |
Direct injection. Turbocharged. |
|
3 Rated output |
138kW |
|
4 Inter-bore of cylinder/Stroke |
114/135 (mm) |
|
5 Total exhaust of cylinder |
8.3(L) |
|
6 Power of start motor |
7.5 (kW) |
|
7 Voltage of starting motor |
24(V) |
|
8 Rated speed |
2200(r/min) |
|
9 Max. Torque |
902(N.m) /(1400r/min) |
|
10 Starting type |
Electric |
|
11 Min. specific fuel consumption |
211(g/Kw.h) |
|
12 Net weight |
617(kg) |
|
Transmission System |
|
|
1 Model |
WG180 technology |
|
2 Type |
3-elements.single stage |
|
3 Torque ratio |
2.35 |
|
4 Cooling type |
Pressure oil circulating |
|
Axle and Tire |
|
|
1 Type of main reducer |
spiral bevel gear, single stage |

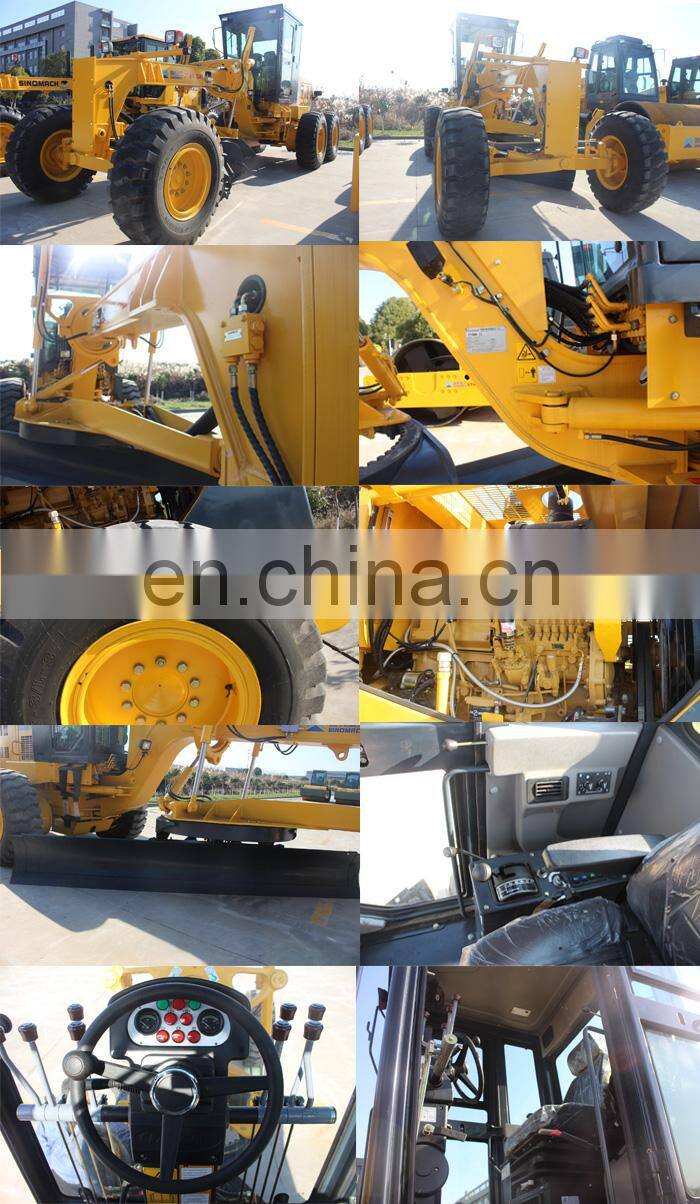

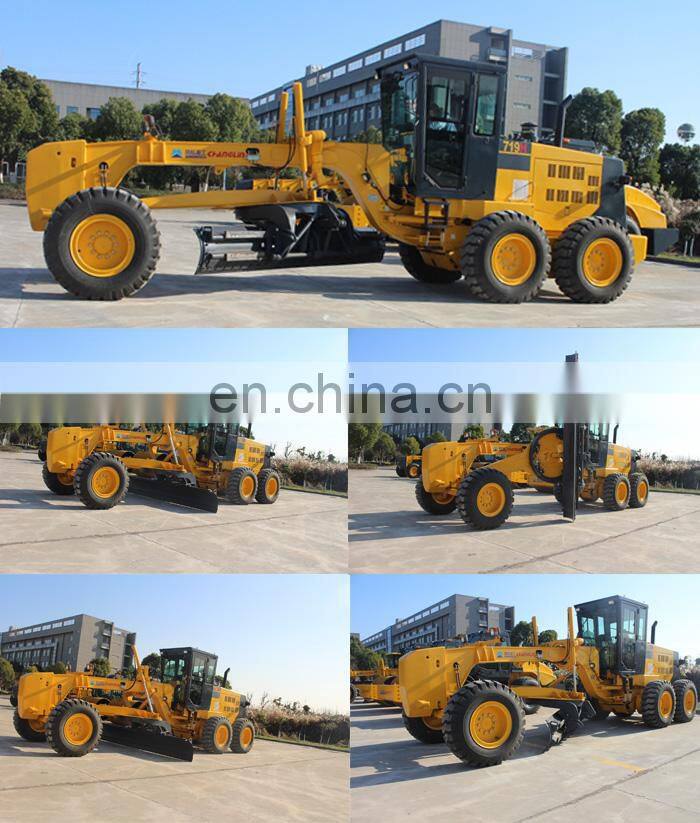

Details Pictures
Related Products
3 Ton Mini Dumper 5 Ton 180° Dumper 10Ton Heavy Duty Dumper
0.8 Ton Mini Wheel Loader 1.6 Ton Wheel Loader 2.0 Ton Wheel Loader
50HP tractor with front loader 70HP Tractor With Backhoe 90HP Tractor With disc mover
Company Information
Weifang MAP Import and Export Co,Ltd . was founded in 2006.We are a professional manufacture and chain supplier specializing in construction machinery and agricultural equipments.70% of our products are made for export.We keep diverse products according to customer and market demand.We produce and supply truck crane, site dumpers,wheel loaders, tractors,implements, wheel excavators, crawler excavators,backhoe loaders,forklifts,road rollers,light towers,concrete mixers,plate compactor,impact tampers, road cutters,concrete vibrators,and so on.
