3Ton Diesel Forklift CPCD30
Product Description
|
Specification |
Load capacity |
3000kg |
|
|
Load center |
500mm |
|
|
Power type |
Diesel |
|
|
Max. lifting speeds(with load) |
390mm/s |
|
|
Max. Driving speeds(with/without load) |
18/20km/h |
|
|
Max. Towing speeds(with/without load) |
14.5/9.8KN |
|
|
Grade ability(with/without load) |
15/20 |
|
|
H1 Lifting height |
3000mm |
|
|
Mast angle(α/β) |
6/12 |
|
|
Free lift |
80mm |
|
|
Min. turning radius |
2450mm |
|
|
Min. right angle aisle width |
2110mm |
|
|
Min. under-clearance |
135mm |
|
|
Total weight |
4320kg |
|
|
Overall height to overhead guard |
2090mm |
|
|
Fork overhang |
494mm |
|
|
Front tread |
1000mm |
|
|
Rear tread |
1000mm |
|
|
Wheel base |
1700mm |
|
Engine |
Engine model |
A490BPG |
|
|
Rate power |
37KW |
|
|
Rotate Speed |
2650rpm |
|
|
Max. torque |
≥148Nm |
|
|
Rotate speed at max torque rpm |
1800-1900 |
|
Dimension |
Overall length (including fork) |
3800mm |
|
|
Overall width |
1230mm |
|
|
Overall height(mast lowered) |
2110mm |
|
|
Overall height(mast extend) |
4250mm |
|
|
Fork width |
125mm |
|
|
Fork thickness |
45mm |
|
|
Backrest height |
1195mm |
|
|
Fork length |
1220mm |
|
Tires |
Front tire |
28x9-15 |
|
|
Rear tire |
6.50-10.0 |

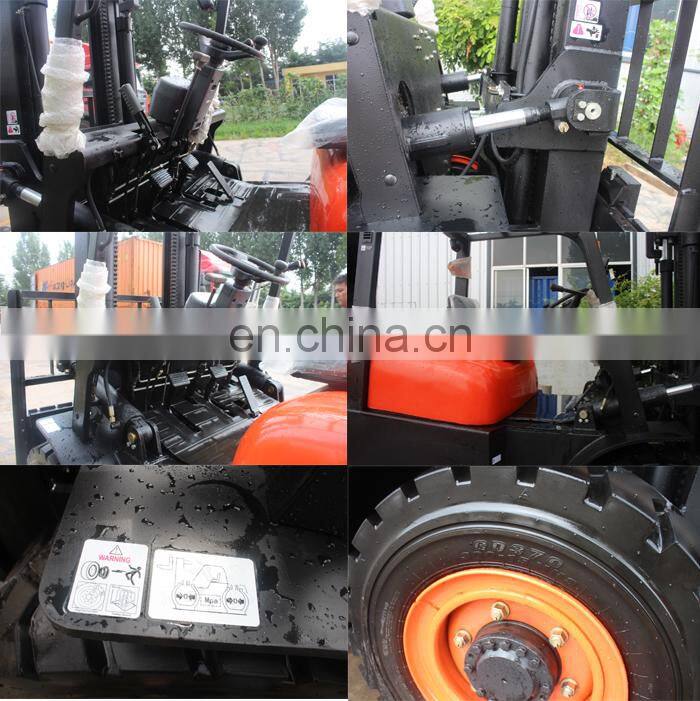

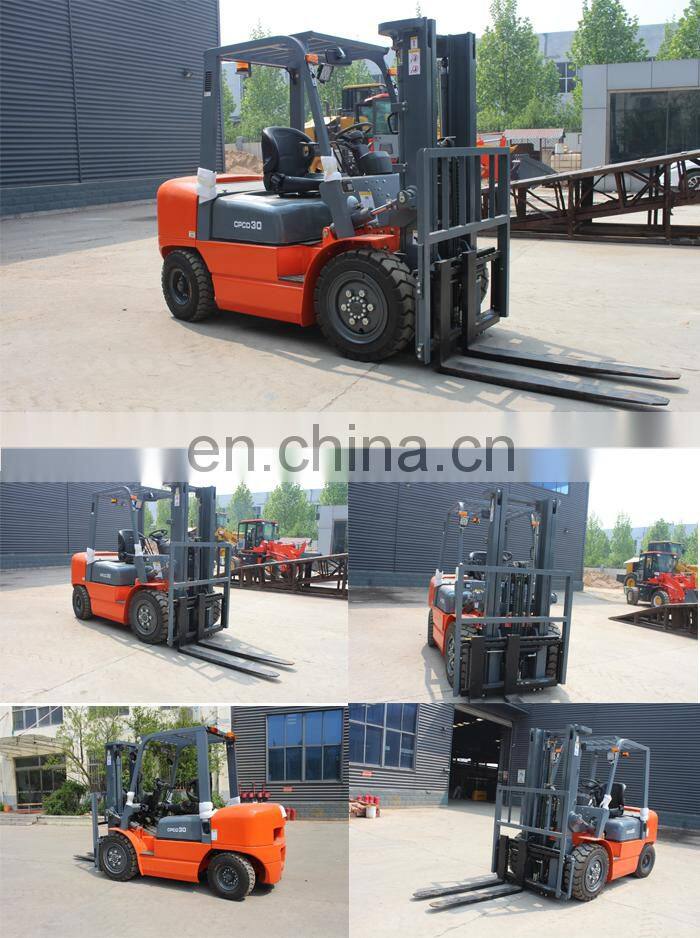

Details Pictures
