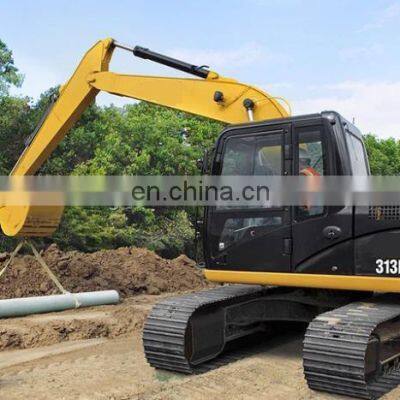

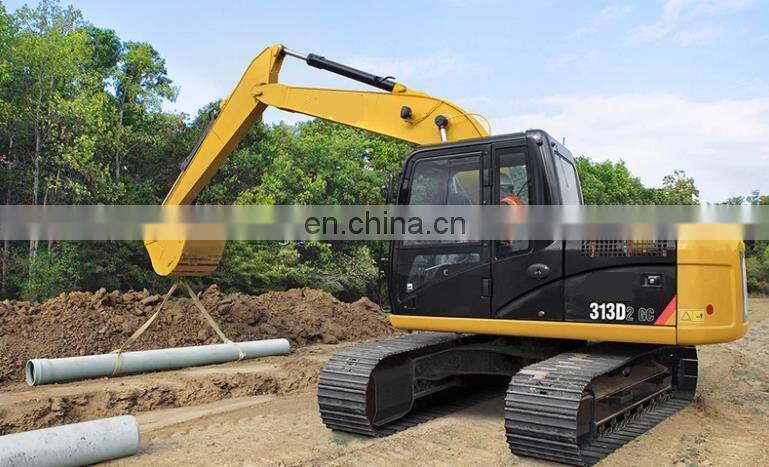

Small 74.5kw 0.53m3 Crawler Excavator 313D2 GC/313 D2 GC

bucket backhoe
Tonnage (tons) 13
The working weight of the whole machine (kg) 12500
Bucket capacity (m³) 0.53
Boom length (mm) 4650
Stick length (mm) 2500
performance
Rotation speed (rpm) 11.2
Swing torque (Nm) 30.9
Walking speed (km/h) 5.1
Bucket Digging Force (kN) 95
Stick Digging Force (kN) 58
Maximum traction (kN) 114.0
power system
Engine type C4.4
Rated power (kw/rpm) 74.5
Displacement (L) 4.4
Bore x Stroke(mm) 105*127
Cooling method water cooling
Hydraulic system
The maximum flow of the main pump (l/min) 232.0
Rotary system flow (L/min) 116.0
Pilot pump flow (L/min) 21.9
Pilot oil circuit (MPa) 4120.0
oil capacity
Fuel tank (L) 250.0
Hydraulic tank (L) 91.0
Engine oil replacement amount (L) 16.0
Coolant (L ) 18.0
body size
Overall length of transport (mm) 7610
Overall shipping width (mm) 2760
Overall transport height (mm) 2830
Total track length (mm) 3490
Track gauge (mm) 1990
Counterweight ground clearance (mm) 900
Minimum ground clearance (mm) 440
Back end turning radius (mm) 2140
scope of work
Maximum digging radius of parking surface (mm) 8180
Maximum excavation depth (mm) 5540
Maximum excavation height (mm) 8490
Maximum unloading height (mm) 6100
Maximum vertical excavation depth (mm) 4610
