Product Description

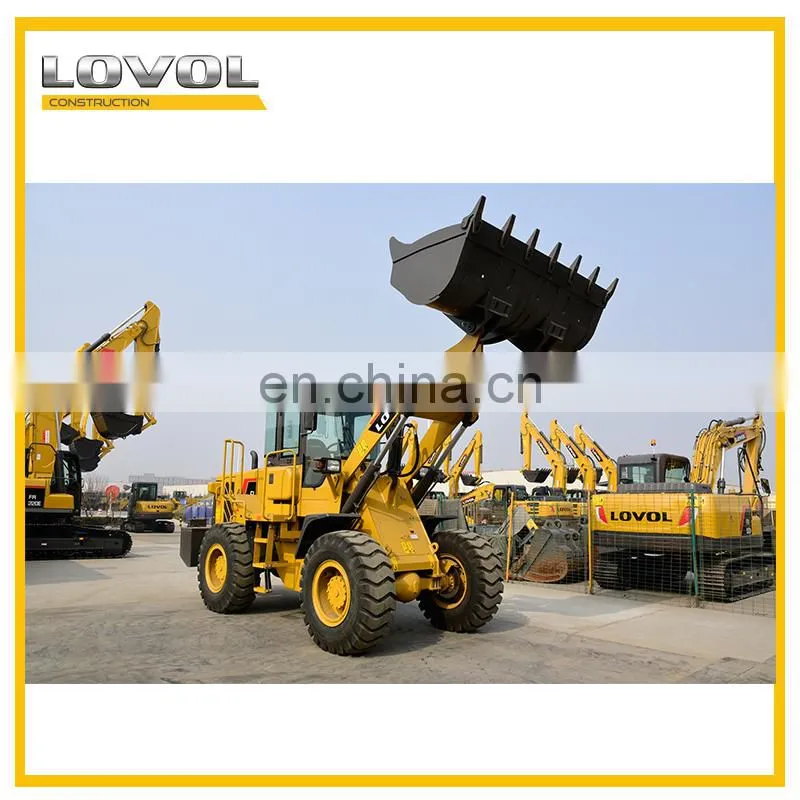

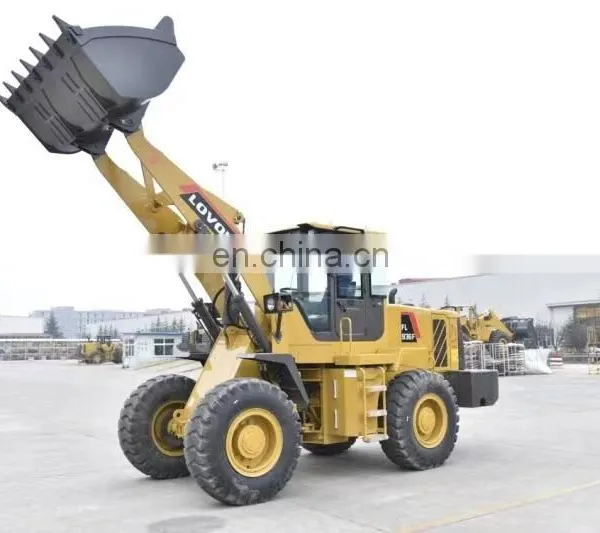

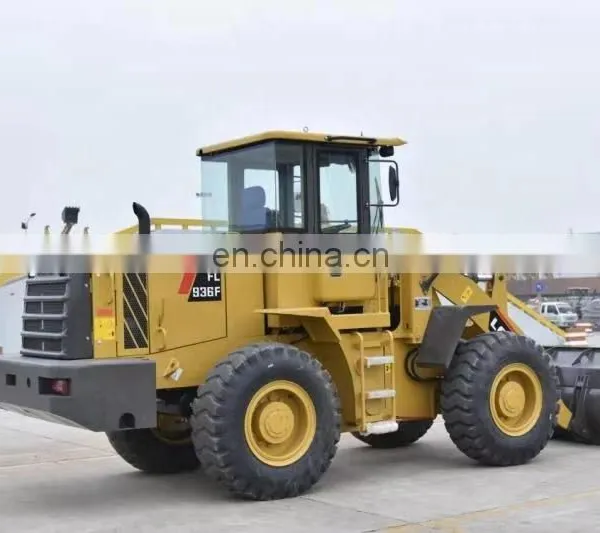

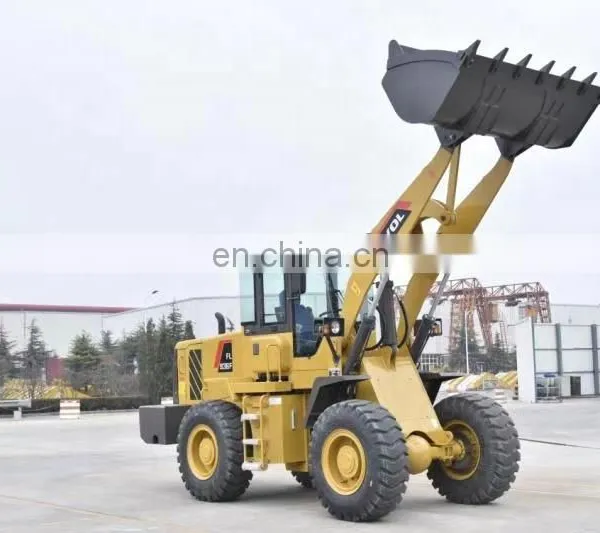

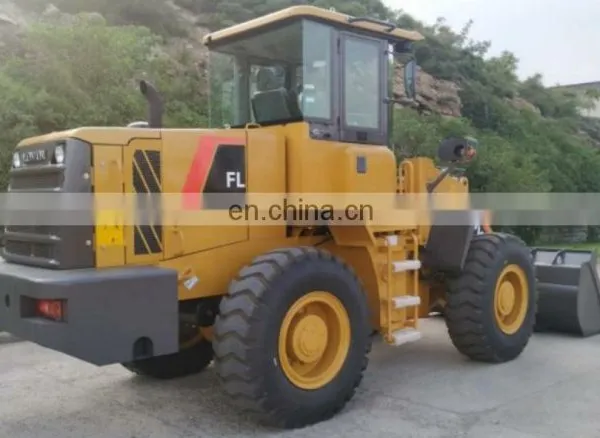

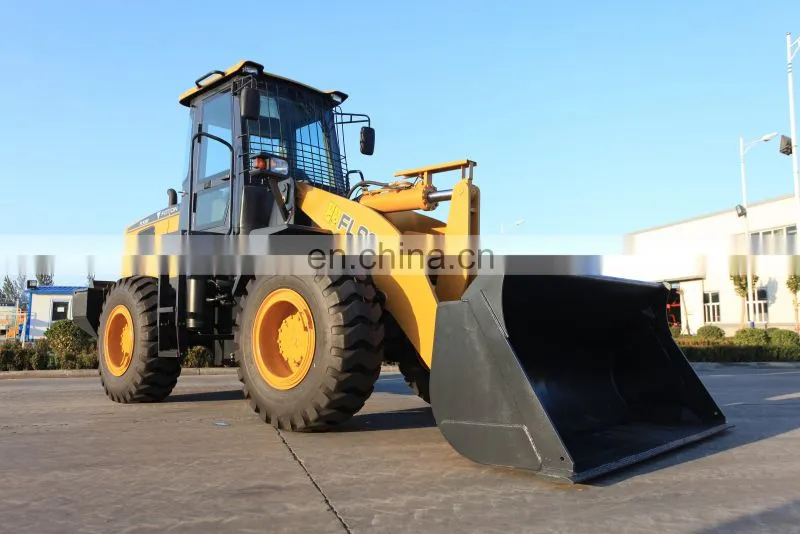

LOVOL hot sale 3ton 1.8m3 bucket articulated shovel loader FL936F/936F
FL936F specification:
Description | FL936F |
Standard bucket capacity (m3) | 1.8 |
Rated load (kg) | 3000 |
Maximum traction force (kN) | 98 |
Maximum breakout force (kN) | 120 |
Maximum climbing ability (°) | 30 |
Unloading height (mm) | 3100 |
Corresponding unloading distance (mm) | 1130 |
Minimum ground clearance (mm) | 400 |
Wheel base (mm) | 1800 |
Wheelbase (mm) | 2740 |
Dimensions (length × width × height mm) | 7315*2350*3245 |
engine model | Weichai WP6G125E22 |
Number of cylinders | six-cylinder |
Displacement (L) | 6.754 |
Maximum torque (N·m) | 500 |
Rated power (kW) | 92 |
Rated speed (rpm) | 2200 |
Gearbox brand | Qingzhou Beilian |
form | Mechanical shift fixed axis |
Gear | First four and rear two |
Maximum speed km/h | 38 |
Drive axle | Yunyu |
Tire specifications | Wide base bias tire 17.5-25-12PR |
form | Priority steering load sensing |
Minimum turning radius of bucket outside (mm) | 5980 |
Minimum turning radius of tire center (mm) | 5464 |
Manipulation | Pilot/Mechanical |
working equipment | Single rocker arm reversal six-link mechanism |
Three terms and time (s) | 10 |
Service brake | Single line air cap oil four-wheel cali-per disc brake |
Parking brake | Mechanical cali-per brake |
Fuel tank (L) | 150 |
Hydraulic oil (L) | 150 |

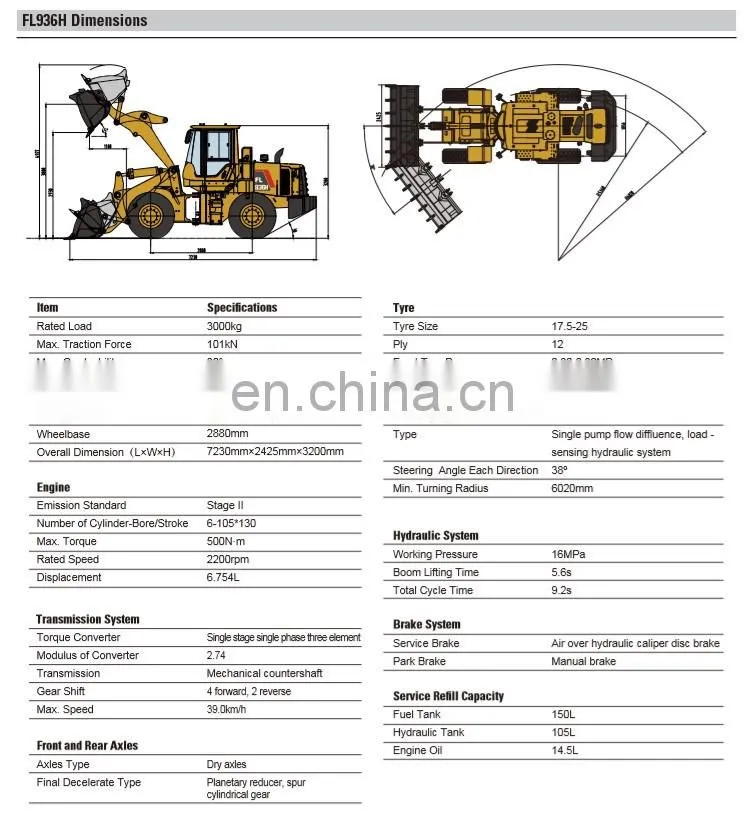

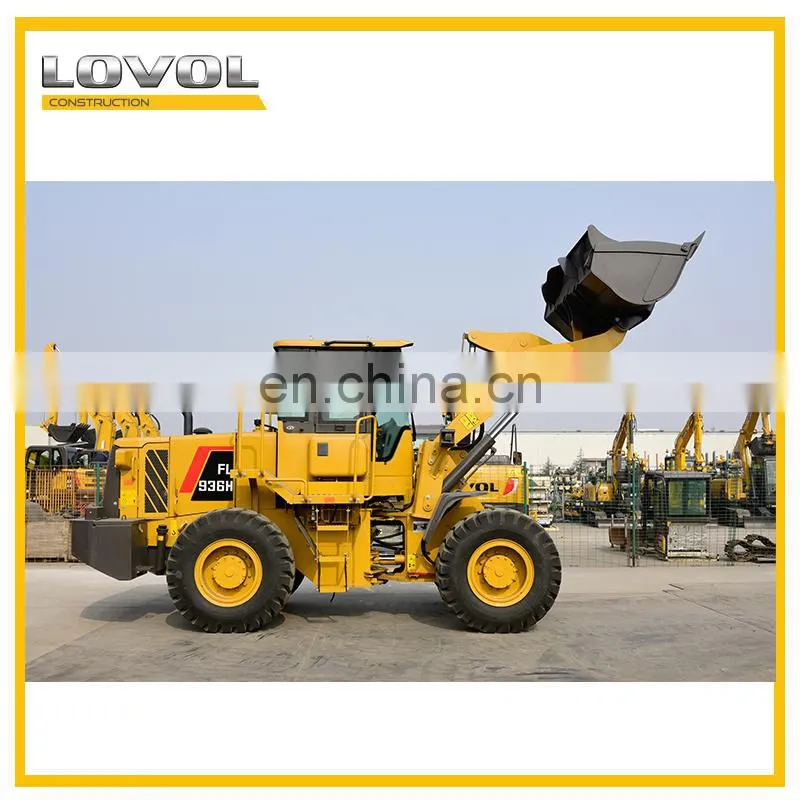

New H series FL936H specification:

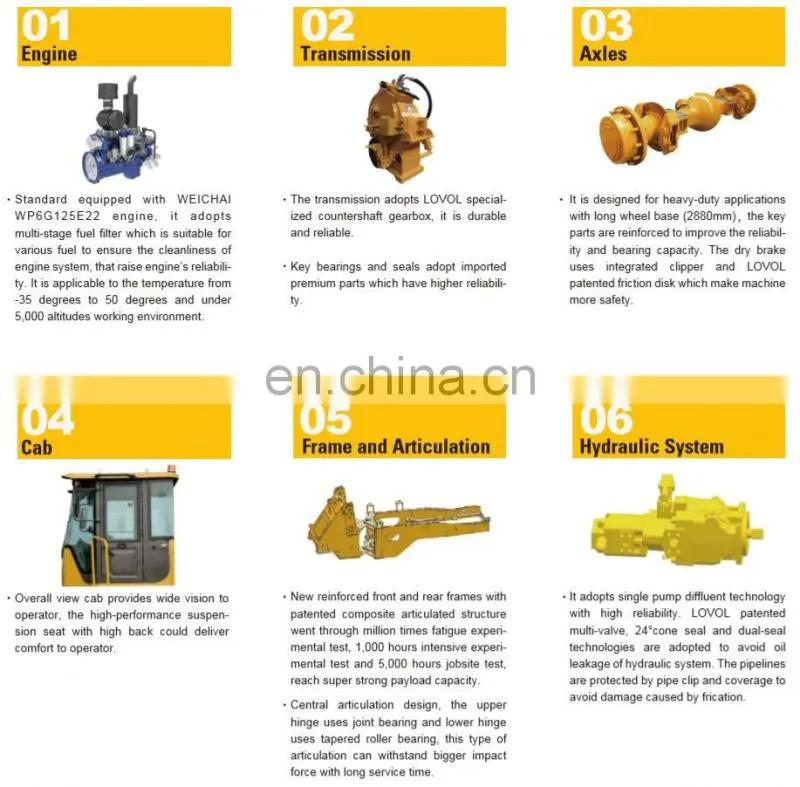

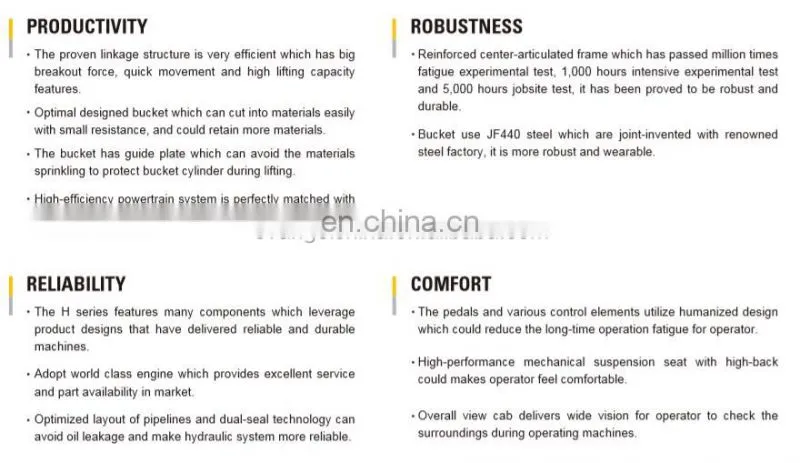

Main Features
1. The multi-stage fuel filter ensures the cleanliness of the engine system.
2. The new reinforced frame and patented composite hinge structure have been fully verified millions of impact fatigue experiment.
3. The shaft sleeve adopts 20CrMnTi honeycomb shaft sleeve, and the inner surface adopts patented spraying process, and has self-lubrication function and long service life.
4. The engine is perfectly matched with the efficient drive system and hydraulic system to improve production efficiency.
5. Standardly equipped with 2.0 m³ bucket, the spading efficiency is higher. And the baffle plate on bucket prevent material from spilling.
Main paramater | |
Operating mass(kg) | 10300 |
---|---|
Bucket capacity | 2.0 |
Rated load(kg) | 3000 |
Traction(kN) | 101 |
Digging force(kN) | 98 |
Gradeability | 30 |
Unloading height(mm) | 2935 |
Unloading distance(mm) | 1100 |
Min. ground diatance(mm) | 340 |
Wheel tread(mm) | 1850 |
Wheelbase(mm) | 2880 |
Bucket outer turning radius(mm) | 5990 |
Outline distance(mm) | 7230*2425*3200 |
