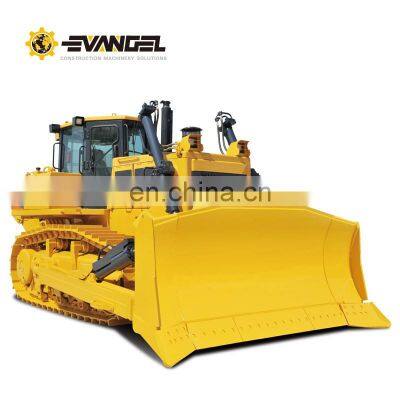

2022 Evangel SHANTUI SD32 37T Standard Crawler Bulldozer With High Performance
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2004
Annual Export Value:
US$1 Million - US$1.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HBXG Xuangong Brand 140hp Swamp Bulldozer TS140 for Wetland Work With Track Shoe Width 1000mmNegotiableMOQ: 1 -
CE Approved 3080KG 2820KG 0.07CBM YUCHAI Crawler Excavator YC25-8 Yuchai Crawler ExcavatorNegotiableMOQ: 1
-
Brand New Construction Machine OKW10 1Ton Mini Excavator With Tiltrotator Yuchai Crawler ExcavatorNegotiableMOQ: 1
-
YUCHAI Excavator YC85-8 8 Ton Crawler Excavator Prices For Sale Yuchai Crawler ExcavatorNegotiableMOQ: 1
-
Yuchai Excavator YC135-9 13.5T Hydraulic Excavator With Euro 5 Emission Yuchai Crawler ExcavatorNegotiableMOQ: 1
SHANTUI SD32 37T standard Crawler bulldozer with High Performance
Contacts
Candice Ouyang
Wechat:18779902186
Mobile,Whatsapp: +86-187-7990-2186
Features
The SD32 provides a showcase for Shantui’s prowess with high-efficiency push factors. These medium-sized, but heavy-duty machines designed for earth-moving projects get the biggest, toughest jobs done quickly and efficiently. SD32 are equipped with a hydraulic drive system with hydraulic control technology and an advanced structure, which provide reliable performance and convenient and flexible operation.
Parameters
| PRODUCT | SD32 | ||
| PERFORMANCE PARAMETERS | Operatiing Weight (kg) | 33600 | |
| Rated horsepower (kw/hp) | 257/345 | ||
| Minimum turning radius (mm) | 3800 | ||
| Ground pressure (kpa) | 81.7 | ||
| ENGINE | Model | NTA855-C360S10 | |
| Emission | China I | ||
| Type | In-line,direct injection,water cooled,4-cycles,turbocharged | ||
| No.of cylinders×Bore×stroke (mm×mm) | 6×140×152 | ||
| Piston displacement (L) | 14 | ||
| Horsepower/rpm (kw/rpm) | 257/2000 | ||
| Maximum torque (N.m/r/min) | 1440/1400 | ||
| DIMENSIONS | Length(mm) | 8650 | |
| Width(mm) | 4130 | ||
| Height(mm) | 3760 | ||
| TRAVELING PERFORMANCE | Forward/Reverse(km/h) | F1:0-3.6 F2: 0-6.6 F3: 0-11.5 R1:0-4.4 R2: 0-7.8 R3: 0-13.5 |
|
| Gradeability(deg) | 30 | ||
| Clearance(mm) | 500 | ||
| TRANSMISSION | Torque convertor | 3-element, single stage, 1-phase | |
| Gear box | Planetary gear and powershift transmission, hydraulically actuated, forced lubrication | ||
| Main drive | Spiral bevel gear, single-stage speed reduction, splash lubrication | ||
| Steering clutch | Wet multiple disc,coned disc spring loaded, hydraulically actuated, hand operated,interconnected with steering brake | ||
| Brake | Wet, contracting band,foot operated with hydraulic booster | ||
| Final driver | spur gear,double reduction ,splash lubrication | ||
| UNDERCARRIAGE | Suspension | Swing type of sprayed beam,suspended structure of equalizer bar | |
| Track gauge (mm) | 2140 | ||
| Shoe width (mm) | 560 | ||
| Track length on ground (mm) | 3150 | ||
| Number of shoes (each side) | 41 | ||
| Pitch (mm) | 228.6 | ||
| Carrier rollers (each side) | 2 | ||
| Track rollers (each side) | 7 | ||
| WORKING HYDRAULIC SYSTEM | Pressure (MPa) | 14 | |
| Working pump | Gear pump | ||
| Valve | Multi-way valve | ||
| Bore of blade lift cylinder (mm) | 140 | ||
| Bore of blade tilt cylinder (mm) | 225 | ||
| TANK CAPACITY | Fuel tank capacity (L) | 640 | |
| Working hydraulic tank capacity (L) | 97 | ||
| WORKING EQUIPMENT | Blade width (mm) | 4130 | |
| Blade height (mm) | 1710 | ||
| Blade capacity (m³) | 10.5(Semi-U) | ||
| Max.Drop below ground of blade | 1560 | ||
| Lift height of blade | 560 | ||
| Type of ripper | Single shank/Three shanks | ||
| Maximum digging depth of ripper (mm) | 1250/842 | ||
| Maximum lifting height of ripper (mm) | 1590 | ||
