15 Ton 0.7Cbm Hydraulic Crawler Bucket Excavator ZE155E/ZE155E-10 XE150D XE150DK For Sale
15 Ton 0.7Cbm Hydraulic Crawler Bucket Excavator ZE155E/ZE155E-10 XE150D XE150DK For Sale

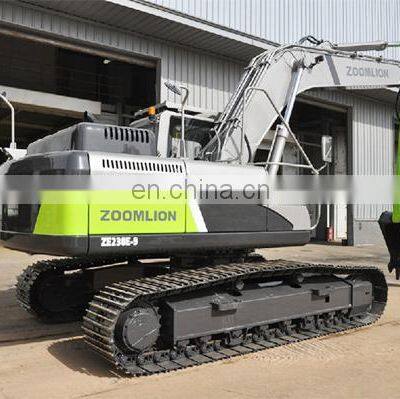

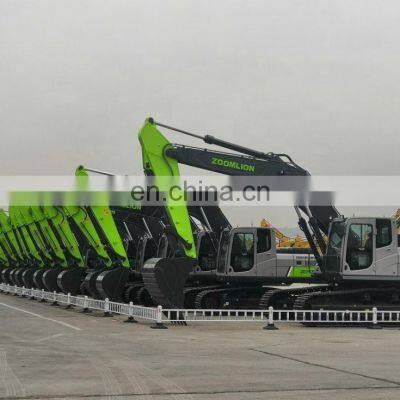

ZE210E/ZE215E series hydraulic excavator is an E-series excavator newly designed by Zoomlion.
It is equipped with (I-SUZU optional) turbocharged engine to ensure strong power output and less pollution.
The newly designed hydraulic system makes the power of engine and main pump reach the optimal state.
The flow of main pump can be automatically adjustable to realize the flow proportion control of actuators and reduce power loss of pump flow.
Boasting fuel consumption reduction and high operation efficiency, it also enjoys optimum performance.
The electronic control system is advanced and the dashboard display is provided with standard configuration of interface with nine languages,
such as Chinese, English, French, Russian, Spanish, Portuguese, etc., to meet operating demands of different countries and regions.
This series of excavator mainly features large range of excavating, long life of bucket, high load bearing capacity of undercarriage, good stability,
low fuel consumption, high operation efficiency, better coordination and smoothness.
This excavator is widely used in projects of building, roadbuilding, water conservancy, electric power, mining, oil, pipe laying of natural gas, military engineering, etc.
ZE215E, as an upgraded version of ZE210, has a great improvement in bucket capacity, maneuverability, digging force of bucket and stick and so on.
ZE215E-10 excavator is equipped with Euro III electronic fuel injection engine, featuring strong power, less noise and low fuel consumption.
Installed with advanced electrical system and hydraulic system, the machine boasts powerful digging force and fast operating speed to meet demands of different working conditions and operating environments.
|
Items |
Unit |
Value |
|
|
Model |
Operating mass |
kg |
21700 |
|
Standard bucket capacity |
m3 |
1 |
|
|
Performance |
Swing speed |
r/min |
11.5 |
|
Travel speed (high / low) |
km/h |
5.5/3.3 |
|
|
Maximum drawbar pull |
kN |
192 |
|
|
Bucket digging force(ISO) |
kN |
147 |
|
|
Arm digging force(ISO) |
kN |
105 |
|
|
Engine |
Engine manufacturer |
- |
CUM-MINS |
|
Rated power |
kw/rpm |
124/2050 |
|
|
Displacement |
L |
6.7 |
|
|
Emission |
- |
China stage3 |
|
|
Dimensions |
Total length |
mm |
9555 |
|
Total width |
mm |
2990 |
|
|
Total height |
mm |
3085 |
|
|
Tail swing radius |
mm |
2800 |
|
|
Track gauge |
mm |
2390 |
|
|
Track length on ground |
mm |
3460 |
|
|
Work range |
Max. digging reach |
mm |
9870 |
|
Max. digging reach at ground level |
mm |
9690 |
|
|
Max. digging depth |
mm |
6580 |
|
|
Max. digging height |
mm |
9720 |
|
|
Max. dumping height |
mm |
6895 |
Contact Sales Manager: Teresa Xuan
Mobile/Whatsapp/Wechat: +86 17705652725
Email: teresa (at)
Send Inquiry to This Supplier
