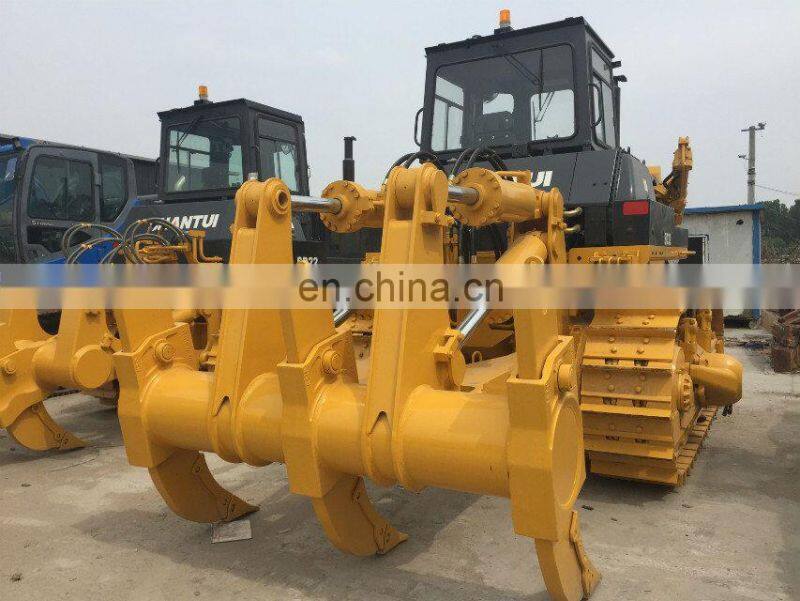

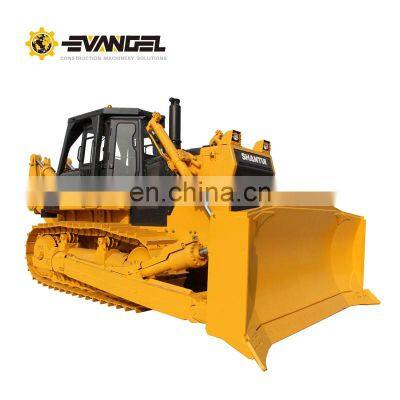

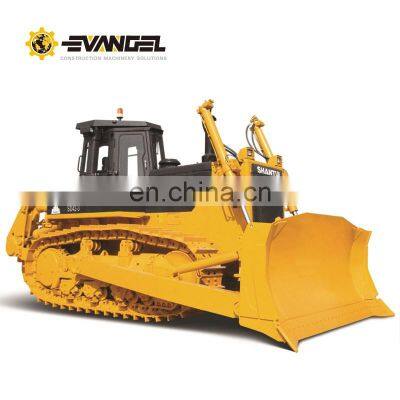

high-efficiency high-power earth-moving machine SD90-5 SHANTUI crawler bulldozer for mining and rock stripping
SD90-5 crawler bulldozer is a high-efficiency high-power earth-moving machine designed and developed in response to the market demands, which achieved multiple technologic breakthroughs in terms of overall matching, thermal management system, and modular design. This product is applicable for the earthworks for large projects such as mines and water conservancy projects. This equipment can adapt to more severe working environment and fulfill the works that can’t be
| Length × width × height (mm) (excluding ripper) | 11500*5265*4590(including ripper) | Operating weight (t)(excluding ripper) | 106.2(including ripper) |
| Engine model | QST30 | Net power/rated speed (kW/rpm) | 661/2100 |
| Ground pressure(Mpa) | 0.161 | Blade type | Semi-U blade |
| Blade capacity(m3) | 39 |
The whole machine adopts the modular design, featuring easy assembly and disassembly and simple service.
The V-shaped, direct injection, turbocharged and intercooled high-efficiency diesel engine equipped features strong power and low fuel consumption.
The hydraulic torque converter with locking function improves the transmission efficiency and adapts to various types of working conditions.
The normally-closed brake system is adopted to apply the braking whenever the engine is stopped, featuring high safety.
The working device adopts the pilot control mode, featuring good inching performance and labor-saving operations.
The double tilting cylinders for the blade increase the tilting angle and effective penetrating depth of the blade.
New hydraulically controlled fan system can adjust the fan speed depending on the working condition to reduce the energy consumption.
The ROPS/FOPS cab, which conforms to the international standard, is adopted, featuring good sealing performance and low noise, with the internal noise reaching the international advanced level.
K-type air suspension track roller suspension structure and main link type sealed lubrication tracks reduce the vibration and improve the comfort and reliability.
The large color display instruments capable of malfunction self-examination features accurate and distinct displays.
The intelligent service system of the bulldozer implements remote real-time monitoring and malfunction diagnosis on the machine.
The full-field cab monitoring technology improves the traveling safety and trafficability.
