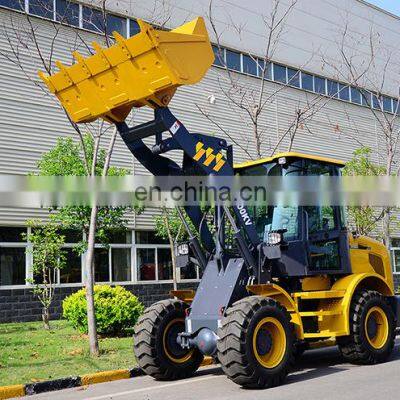

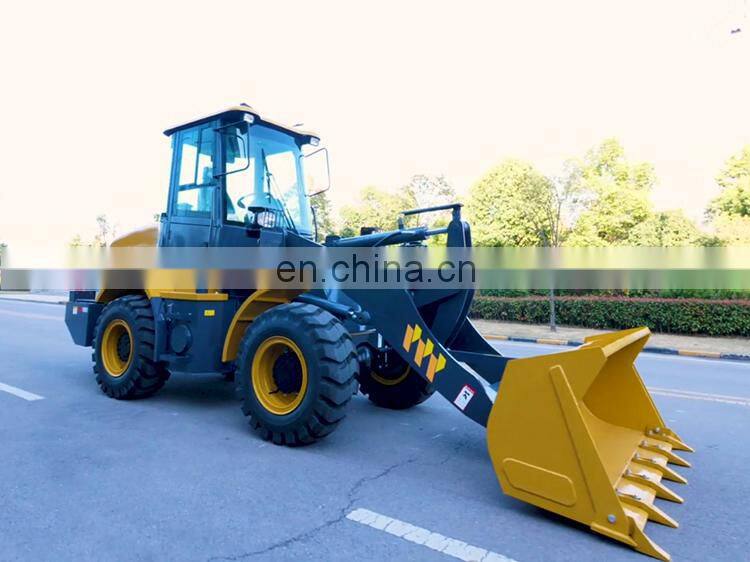

2ton MINI small Wheel Loader LW200KN LW200KV with free spare parts and overseas maintenance

Product Description

The LW200KN tire loader is based on the comprehensive upgrade of product emission, reliability, comfort, and convenience of maintenance.

It further enhances the power of the whole machine, and the whole machine is more powerful and powerful. The configuration of LW200KN serialized work equipment

(standard arm, high unloading arm) and auxiliary equipment (quick change bucket, fork, clamp clamp, clamp clamp, etc.) meet the requirements of different users' working conditions.
1. The model features a long wheelbase (2300mm) design to adapt to all types of overweight conditions, leading the industry in stability.
2. Digging force (LW200KV digging force ≥58kN), strong breaking force, light weight of various materials.
3, fast and efficient, driving speed up to 28km / h, the industry's best.
4. People-oriented design ensures safety, reduces fatigue and creates an excellent operating environment for you.
5, can be configured hydraulic pilot, FOPS and ROPS cab, air conditioning, audio, etc., comfortable operation, driving safety.
6, international small package mainstream design, large arc cab glass, streamlined hood, fender, in line with the aesthetic appearance of high-end users.
7, Engineering version of the small loader main engine, the national III emissions. The horsepower is strong and the torque reserve coefficient is large.

It can meet the instantaneous overload requirements during the construction process and fully provide the power required for heavy-duty and heavy-duty operations.

Description Specification Unit
Model LW200KN
Rated operating load 2000 kg
Bucket capacity 0.9-1.1 m3
Machine weight 6500±200 kg
Dump clearance at maximum lift 2530-2700 mm
Reach at maximum lift 860-980 mm
Wheel base 2300 mm
Tread 1550 mm
Max.breakout force ≥60 kN
Hydraulic cycle time-raise ≤5 s
Total hydraulic cycle time ≤8.5 s
Min. turning radius over tyres 4470 mm
Articulation angle 35 °
Gradeability 28 °
Tyre size 16/70-20
Overall machine dimension LxWxH 6400x1980x2950 mm
Model LR4B3ZU24/0662
Rated Power/Speed 66.2/2400 kW/rpm
Travel Speed  Ⅰ-gear(F/R) 0-9/0-9 km/h
Ⅱ-gear(F/R) 0-26/0-26 km/h
