50 Ton Lifting Truck Crane Hydraulic Crane for Sale Cranes Hydraulic QY50KD
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2004
Annual Export Value:
US$1 Million - US$1.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
50 Ton Portable Truck Crane Joystick Crane Hydraulic Boom Lifting Crane QY50KDNegotiableMOQ: 1 -
Hydraulic Pick-up Truck Crane for Sales 50 Ton Mobile Crane for Sale in Uae QY50KDNegotiableMOQ: 1
-
50 Ton Crane Mobile Crane Truck Crane Sale in Kuwait QY50KDNegotiableMOQ: 1
-
50 Ton Hydraulic Crane Pickup Truck Lift Crane Pickup Truck Mounted Crane QY50KDNegotiableMOQ: 1
-
50 Ton Pickup Truck Crane Truck Mounted Crane QY50KDNegotiableMOQ: 1
Contact Way
Annie Li
Sales Manager
Wechat/Mobile/Whatsapp: +86 138 1769 0558
Email: Annie at
Products Description
Feature:
Highlight 1: Leading lifting and driving performances
1. Five section U-type booms. The boom length is 11.4m-43.5m with strong lifting performance, leading 5%-10% ahead of products with the same tonnages in the same industry.
2. High-power engine with good dynamic performance, strong gradeability and superior trafficability. The maximum gradeability and maximum travel speed respectively are 42% and 85km/h.
Highlight 2: Reliability of heat dissipation, electrical system etc. has been improved with safer operation and driving
1. Waterproof connector clip. It is equipped with rubber sheath inside with excellent water impervious and level of protection reaches to IP65.
2. Aluminium alloy fuel tank. Good appearance quality, corrosion resistance, strong shock resistance capacity.
3. Double- broken line winch. The hoisting rope is in alignment, and it will be more reliable if turn off the press-rope machine.
4. Optimized heat-removal system. The air-conditioning condenser is separately installed, the heat-sinking capability is sharply improved and the environment temperature reached to more than 45℃.
Highlight 3: Mature and reliable double-pump confluence technique, maintaining the advantages of efficient operation
Special confluence multi-valve has been designed. The double-pump confluence technique is adopted in raising and falling of winch, extending and retracting of lazy boom and luffing, leading ahead of luffing and extending and retracting operations.
Highlight 4: Air-aid shift gears and 45% of shifting force is reduced
Special air-aid shift gears protection mechanism. The boost system will work only by stepping on the clutch that effectively
avoids gearbox damaging gears when shifting. Compared with the same industry, 100mm distance of shift gears and 45% of shifting force are respectively reduced.
Highlight 5: Appearance molding is newly upgraded, humanized design and comfortable riding manipulation
New operating house, wheel house, engine hood and machine shed, novel appearances, fine lines of the complete machine appearance, shows its elegant appearance.
The rearview mirror is installed in operating house, easy to for observe the working environment; front pedal and push-and-pull pedal in left side are installed, easy access to the operating house; Ladder stand is installed in two sides of the chassis, easy to get on or off the bus. In addition, tool cabinet is installed in right rear side of the frame, easy to store tools attachment for users, fully representing the purpose of humanized design.
Highlight 1: Leading lifting and driving performances
1. Five section U-type booms. The boom length is 11.4m-43.5m with strong lifting performance, leading 5%-10% ahead of products with the same tonnages in the same industry.
2. High-power engine with good dynamic performance, strong gradeability and superior trafficability. The maximum gradeability and maximum travel speed respectively are 42% and 85km/h.
Highlight 2: Reliability of heat dissipation, electrical system etc. has been improved with safer operation and driving
1. Waterproof connector clip. It is equipped with rubber sheath inside with excellent water impervious and level of protection reaches to IP65.
2. Aluminium alloy fuel tank. Good appearance quality, corrosion resistance, strong shock resistance capacity.
3. Double- broken line winch. The hoisting rope is in alignment, and it will be more reliable if turn off the press-rope machine.
4. Optimized heat-removal system. The air-conditioning condenser is separately installed, the heat-sinking capability is sharply improved and the environment temperature reached to more than 45℃.
Highlight 3: Mature and reliable double-pump confluence technique, maintaining the advantages of efficient operation
Special confluence multi-valve has been designed. The double-pump confluence technique is adopted in raising and falling of winch, extending and retracting of lazy boom and luffing, leading ahead of luffing and extending and retracting operations.
Highlight 4: Air-aid shift gears and 45% of shifting force is reduced
Special air-aid shift gears protection mechanism. The boost system will work only by stepping on the clutch that effectively
avoids gearbox damaging gears when shifting. Compared with the same industry, 100mm distance of shift gears and 45% of shifting force are respectively reduced.
Highlight 5: Appearance molding is newly upgraded, humanized design and comfortable riding manipulation
New operating house, wheel house, engine hood and machine shed, novel appearances, fine lines of the complete machine appearance, shows its elegant appearance.
The rearview mirror is installed in operating house, easy to for observe the working environment; front pedal and push-and-pull pedal in left side are installed, easy access to the operating house; Ladder stand is installed in two sides of the chassis, easy to get on or off the bus. In addition, tool cabinet is installed in right rear side of the frame, easy to store tools attachment for users, fully representing the purpose of humanized design.
Product Paramenters
Description | Unit | Parameter value | ||
Overall length | mm | 13930 | ||
Overall width | mm | 2780 | ||
Overall Height | mm | 3630 | ||
Axle base | 1st ,2nd axle | mm | 1470 | |
2nd ,3rd axle | 4300 | |||
3rd ,4th axle | 1350 | |||
Wheel Base | mm | 2304+2075 | ||
Front overhang/rear overhang | mm | 2389/2064or 2376/2064 | ||
Front extension/rear extension | mm | 2131/226 or 2144/226 | ||
Total vehicle mass in travel configuration | kg | 42200 | ||
Axle load | Front axle | kg | 16200 | |
Rear axle | 26000 | |||
Engine Model | WD615.338 | |||
Engine rated power | kw/(r/min) | 276/2200 | ||
Engine rated torque | N.m/(r/min) | 1500/1300-1600 | ||
Max. travel speed | km/h | 85 | ||
Min. steady travel speed | km/h | 2~3 | ||
Min. turning diameter | m | 24 | ||
Min. ground clearance | mm | 327 | ||
Max. grade ability | % | 42 | ||
Approach angle | ° | 19 | ||
Departure angle | ° | 15 | ||
Braking distance (at 30 km/h, full load ) | m | ≤10 | ||
Oil consumption per 100km | L | 40 | ||
Exterior noise level during acceleration traveling | dB (A) | ≤88 | ||
Noise level at seated position | dB (A) | ≤90 | ||

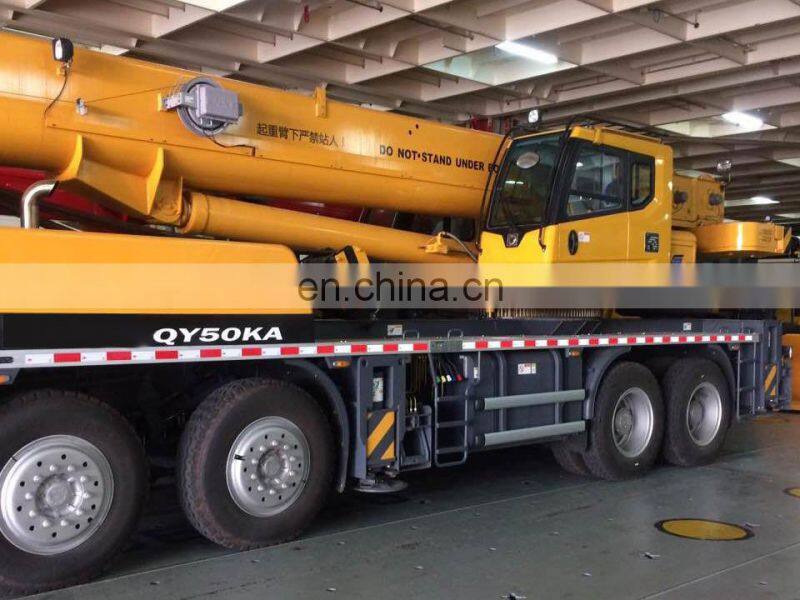

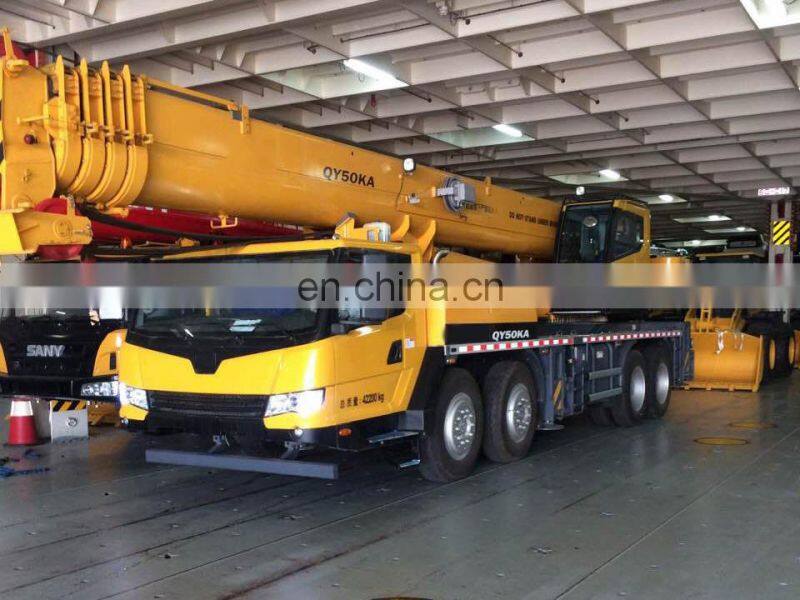

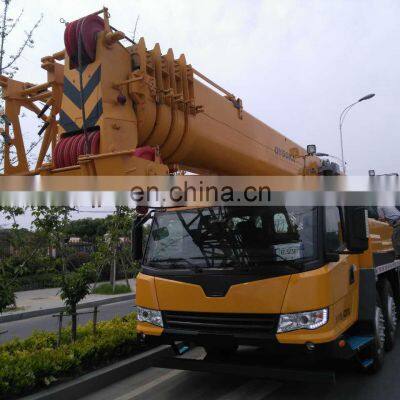

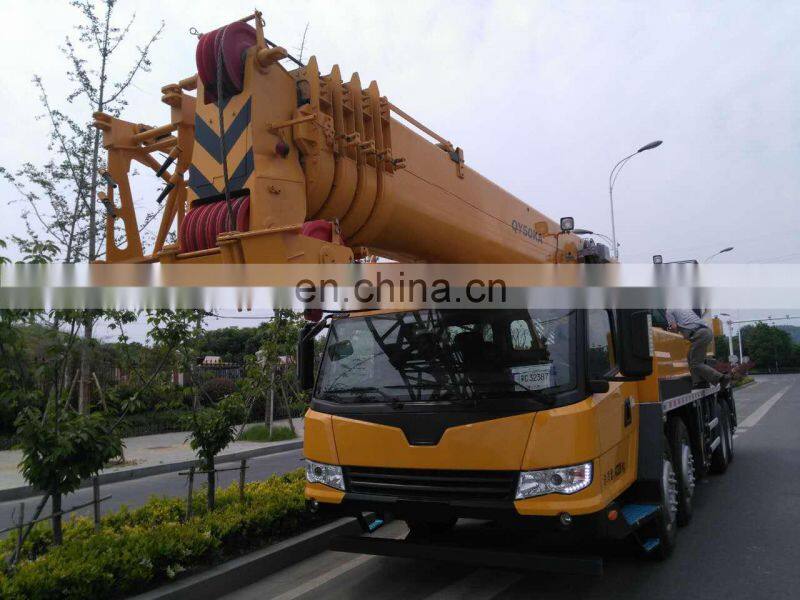

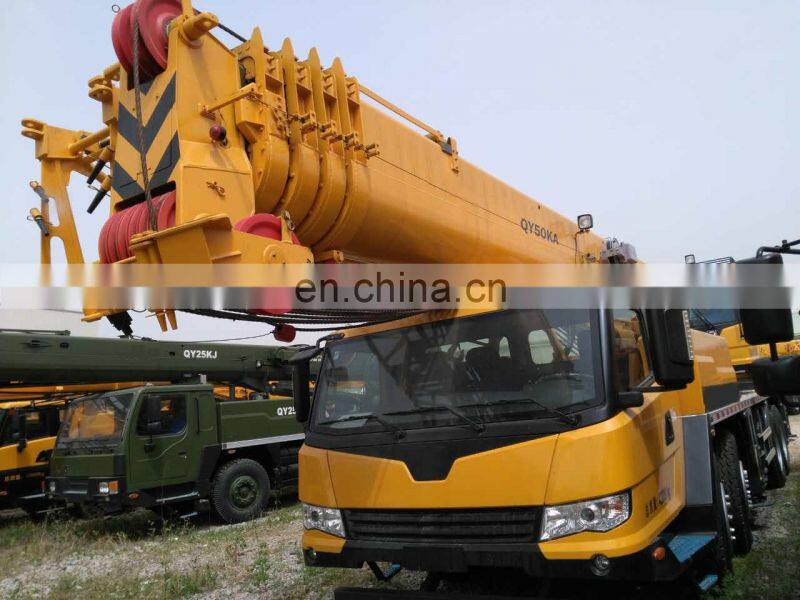

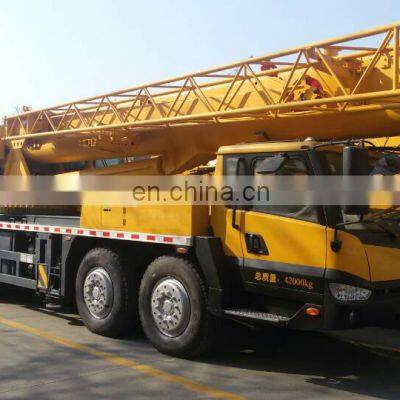

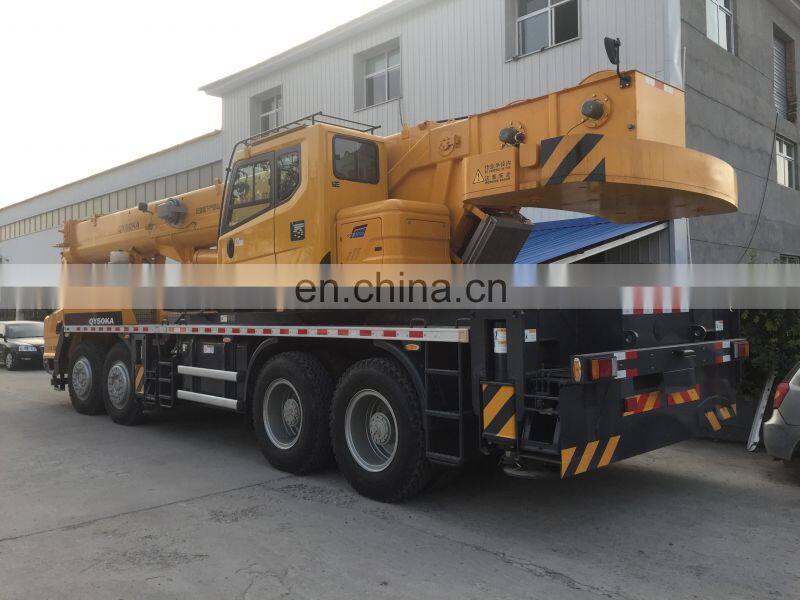

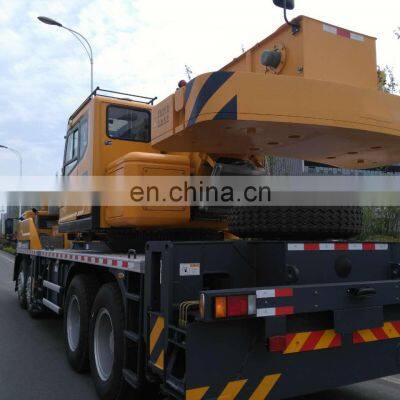

Details Images
