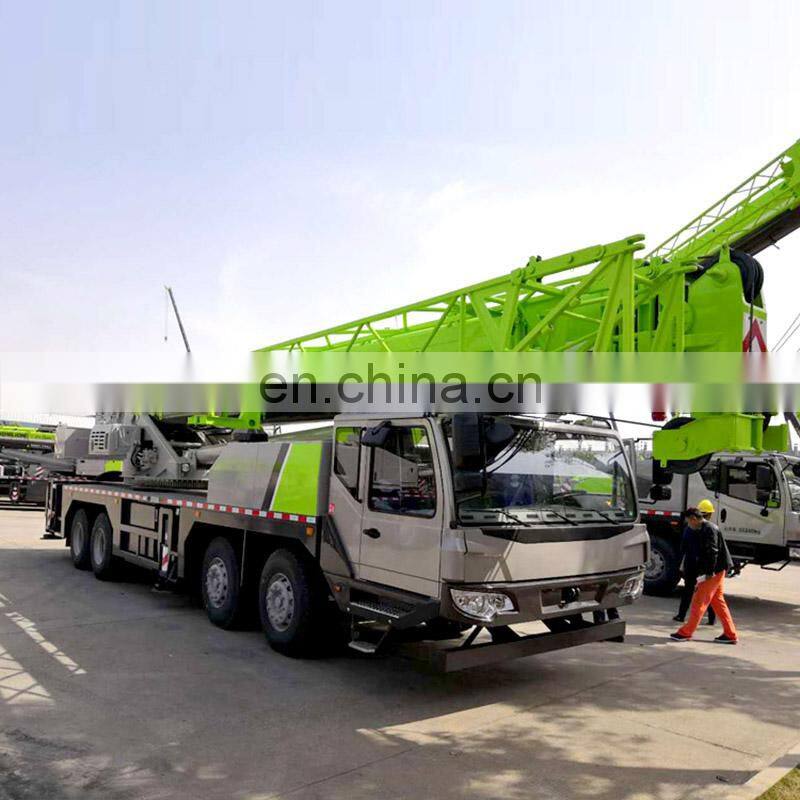

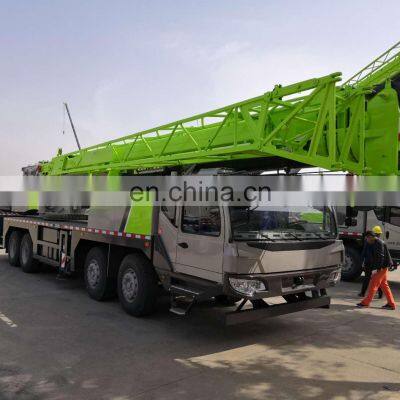

Lifting Height 70m 50 Ton Truck Crane ZTC500A552
Contact
Alivior Liu
Sales Director
Skype:liying.liu3
Wechat:2806003380
Mobile,Whatsapp: +86-156-0190-8606
Features
Full cab, left-hand drive, four-axle chassis, Weichai Guowu WP9H310E50 engine (228KW); 5 U-shaped main booms (11.6~45) m, 2 jibs (9.5/16m); independent double winch, upper , Get off the car cooling and heating air conditioner; two-stage outrigger double-sided operation, with a control room pitch mechanism; gear pump hydraulic system, hydraulic control operation; fixed counterweight 5.5 tons with 3 tons auxiliary counterweight; standard three-color lights, reversing image; Standard 50 tons main hook and 4 tons auxiliary hook.
Parameters
| Item | Specification | Remark | |
| Performance | Max. loading capacity | 50000kg | |
| Max. lifting moment-Base boom | 1813 kN.m | ||
| Max. lifting moment-Full-extend boom | 1082 kN.m | ||
| Max. lifting height of Length-Base boom | 12.6m | ||
| Max. lifting height Length-Full-extend boom | 45.5m | ||
| Max. lifting height Length-Full-extend boom+jib | 61m | ||
| Speed | Max. single rope lifting speed of main winch | 135 m/min | |
| Max. single rope lifting speed of auxiliary winch. | 125 m/min | ||
| Full extend/retract time of boom | 50s | ||
| Full raise/lower time of boom | 110s | ||
| Swing speed | 0~2.2 r/min | ||
| Driving | Max. elevation | 2000m | |
| Max. driving speed | 80 km/h | ||
| Max. gradeability | 44% | ||
| Min. turning radius | ≤24m | ||
| Min. ground clearance | 280mm | ||
| Fuel consumption per 100km | 41L | ||
| Weight | Overall weight | 41600kg | |
| Curb weight | 41405kg | ||
| Front axle load | 15600kg | ||
| Rear axle load | 26000kg | ||
| Dimension | Overall dimension | 14100×2650×3800 | |
| Outrigger span (Longitudinal) | 7.4m | ||
| Outrigger span ( Transversal) | 6.05m | ||
| Tail swing radius of superstructure | 3890mm | ||
| Length of Full-extend boom | 11.6~45 | ||
| Approach angle | -2~80 ° | ||
| Length of Jib | 9.5 ,16.0m | ||
| Angle of jib | 0 ,15,30 ° | ||
