ZOOMLION Crane 50Ton Telescopic At Good Price ZCC5000

FOB Price

Negotiable

1 (Min.Order)

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Description

ZOOMLION 510ton mobile truck crane for sale

Product Description

- - - New generation 4.0 series platform 55T with 5 section main boom(11.2m-44m).
    - Max. lifting moment reaches to 1568kN.m, max. lifting height with jib up to 60m.
    - Standard tiltable operator's cab.
    - High ROI.

Parameter

Item	Value	Remarks
Max. lifting capacity on heavy duty boom(S)/Radius		Without D and B t × m	450 × 6
Max. lifting capacity on heavy duty boom(S)/Radius		With D and B m	500 × 12
Length of heavy duth boom(S)		Without D and B m	24-90
Length of heavy duth boom(S)		With D and B m	36-96
Length of light duty boom(SL)		Without D and B m	48-108
Length of light duty boom(SL)		With D and B m	78-126
Dead weight of crane with basis boom		m	370
Length of luffing jib(W)		m	28-84
Max.lifting capacity on luffing jib		Without D and B t × m	190 × 13
Max.lifting capacity on luffing jib		With D and B t × m	235 × 16
Boom angle when luffing jib is		.	65,75,85
Max. length of heavy duty boom with		Without D and B m	60+72
Max. length of heavy duty boom with		With D and B m	84+84
SLHS boom		Main boom m	84-108
		Wind plant jib m	7
		Max.lifting capacity t×m	126×16
Single rope speed of winches	Hoisting winch 1	m/min	0-137
	Hoisting winch 2		0-137
	Main boom derricking winch		0-50
	Luffing jib derricking winch		0-123
	Superlift derricking winch		0-143
	Hoisting winch 3		0-109
Slewing speed		rpm	0-1.0
Traveling speed		km/h	0-1.0
Gradeability		%	30
Ground pressure		Mpa	0.139
Transport dimensions of basic machine		mm	12180×3345×3205	Without A-frame
Max.transport weight of single piece			48.6
Engine	Rated power / rotational speed	kW/r/min	360/1800
	Output torque /rotational speed	Nm/r/min	2200/1300
	Exhaust emission		EU Stufe 3A
Distance between track center × crawler contact length × crawler width		mm	8000 ×9800×1350

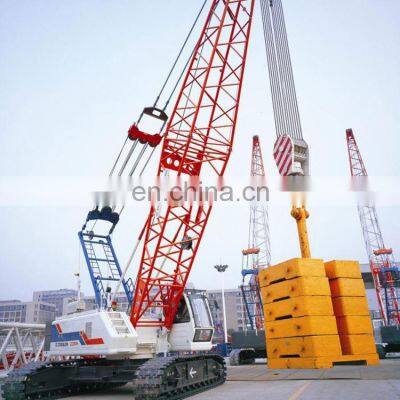

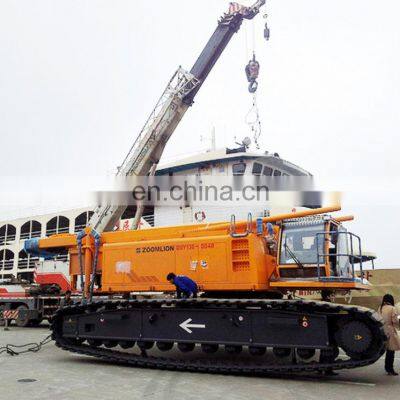

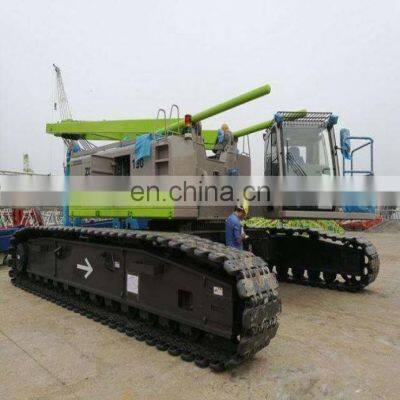

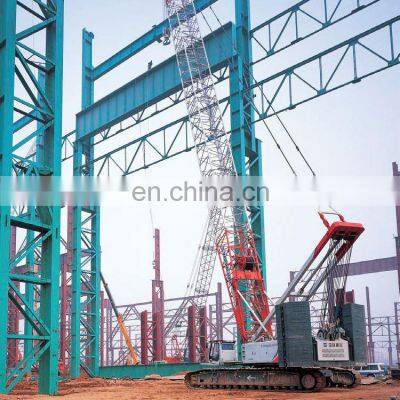

Photo for reference
