Home > Manufacturing & Processing Machinery > Crane > Other Cranes > Zoomlion100 Ton Cheap Crawler Crane With Price ZCC1300
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2004
Annual Export Value:
US$1 Million - US$1.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Zoomlion 12V Li-Ion Battery Crane Width 800Mm For Construction Use ZCC1300NegotiableMOQ: 1 -
Zoomlion High Durability Professional List Of Tower Crane Manufacturers With Total Body Width 801Mm And Ce Certificates ZCC1300NegotiableMOQ: 1
-
Zoomlion High Durability Ph Spider Crawler Crane For Narrow Working ZCC1300NegotiableMOQ: 1
-
Zoomlion 50T Foldable Spider Mini Tower Crane With Ce And Iso Certificates ZCC5000NegotiableMOQ: 1
-
Zoomlion New Spider Hydraulic Arm Crane With Ce Certificate With Battery Power Pack ZCC1300NegotiableMOQ: 1
ZOOMLION 130ton mobile truck crane for sale
Product Description
-
-
-
-
New generation 4.0 series platform 55T with 5 section main boom(11.2m-44m).
-
Max. lifting moment reaches to 1568kN.m, max. lifting height with jib up to 60m.
-
Standard tiltable operator's cab.
-
High ROI.
-
-
-
Parameter
| Item | Unit | Value | Remarks | |
|---|---|---|---|---|
| Maximum lifting capacity × radius | t × m | 130 × 4.5 | ||
| Maximum lifting moment | t × m | 661.5 | ||
| Deadweight of crane with basic boom | t | 113.8 | ||
| Length of main boom | m | 19-73 | ||
| Length of fixed jib | m | 13-31 | ||
| Maximum lifting capacity with fixed jib | t | 13 | ||
| Fixed jib angle | . | 10,30 | ||
| Maximum length of main boom + fixed jib | m | 55+31,58+25,61+19 | ||
| Single rope speed of winches | Main winch(hoisting winch 1) | m/min | 105 | Outermost layer of drum |
| Auxiliary Winch(hosting winch 2)) | m/min | 93 | Outermost layer of drum | |
| derricking winch | m/min | 52 | Outermost layer of drum | |
| Slewing speed | r/min | 0-2.2 | ||
| Traveling speed | km/h | 0~1.3 | ||
| Gradeability | % | 30 | ||
| Ground pressure | MPa | 0.1 | ||
| Overall dimensions(L × W × H) | m | 9.55×6.5×3.2 | Without A-frame and boom frame | |
| Engine | Rated power/rotational speed | Kw/rpm | 209/2000 | |
| Max. output torque/rotational speed | Nm/rpm | 1424/1400 | ||
| Exhaust emission standard | U.S.EPA Tier 3 | |||
| Distance between track center × crawler contact length × crawler shoe width | mm | 5600×6850×900 | ||

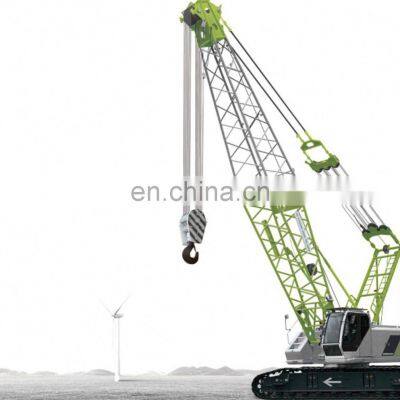

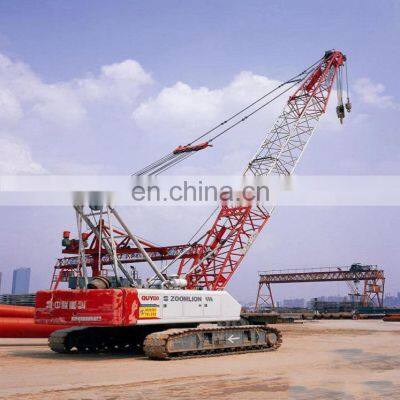

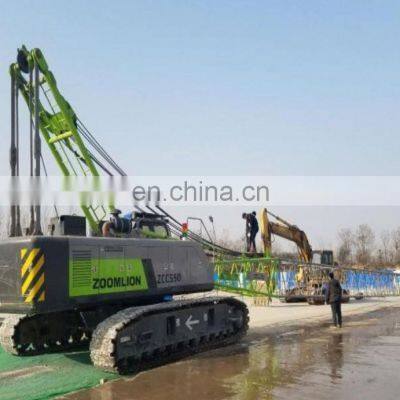

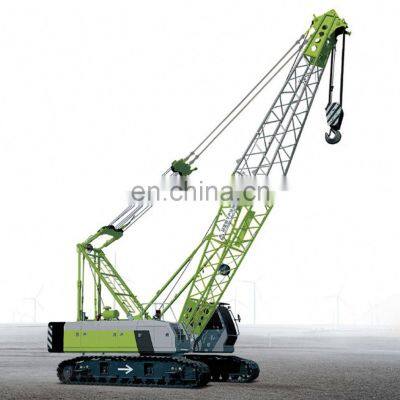

Photo for reference
