Zoomlion New 30Ton Crawler Crane Truck Crane Specification Crawler Crane ZCC1300

Name: Zoomlion New 30Ton Crawler Crane Truck Crane Specification Crawler Crane ZCC1300
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

ZOOMLION 130ton mobile truck crane for sale

Product Description

- - - New generation 4.0 series platform 55T with 5 section main boom(11.2m-44m).
    - Max. lifting moment reaches to 1568kN.m, max. lifting height with jib up to 60m.
    - Standard tiltable operator's cab.
    - High ROI.

Parameter

Item	Unit	Value	Remarks
Maximum lifting capacity × radius		t × m	130 × 4.5
Maximum lifting moment		t × m	661.5
Deadweight of crane with basic boom		t	113.8
Length of main boom		m	19-73
Length of fixed jib		m	13-31
Maximum lifting capacity with fixed jib		t	13
Fixed jib angle		.	10,30
Maximum length of main boom + fixed jib		m	55+31,58+25,61+19
Single rope speed of winches	Main winch(hoisting winch 1)	m/min	105	Outermost layer of drum
	Auxiliary Winch(hosting winch 2))	m/min	93	Outermost layer of drum
	derricking winch	m/min	52	Outermost layer of drum
Slewing speed		r/min	0-2.2
Traveling speed		km/h	0~1.3
Gradeability		%	30
Ground pressure		MPa	0.1
Overall dimensions(L × W × H)		m	9.55×6.5×3.2	Without A-frame and boom frame
Engine	Rated power/rotational speed	Kw/rpm	209/2000
	Max. output torque/rotational speed	Nm/rpm	1424/1400
	Exhaust emission standard		U.S.EPA Tier 3
Distance between track center × crawler contact length × crawler shoe width		mm	5600×6850×900

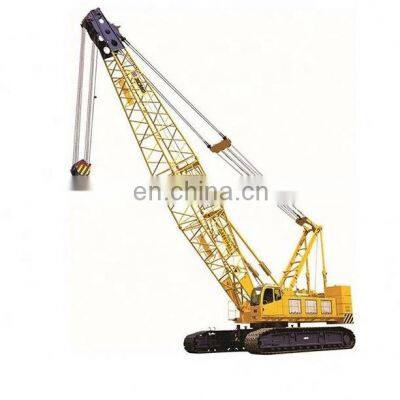

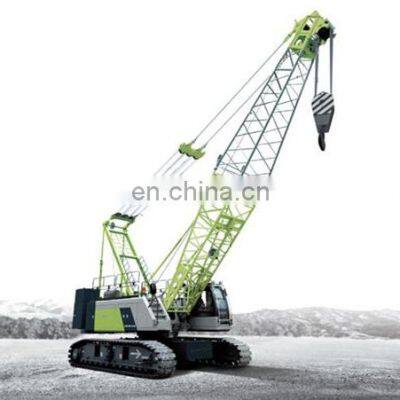

Photo for reference
