Zoomlion 30ton Liugong 25 Ton Five Section Booms Truck Crane Tc250A5 For Sale ZTC300R

FOB Price

Negotiable

1 (Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

ZOOMLION 30ton mobile truck crane for sale

Product Description

- - - New generation 4.0 series platform 55T with 5 section main boom(11.2m-44m).
    - Max. lifting moment reaches to 1568kN.m, max. lifting height with jib up to 60m.
    - Standard tiltable operator's cab.
    - High ROI.

Parameter

Item	Unit	Value	Remarks
Working performance	Max. rated lifting capacity	kg	30000
	Max. load moment of basic boom	kN.m	990
	Max. load moment of main boom(fully extended)	kN.m	624
	Max. load moment of basic boom	m	11.3
	Max. lifting height of main boom	m	42.1	These parameters do not include deflection of main boom and jib
	Max. lifting height of jib	m	50.0
Working speeds	Max. hoist rope speed(Main winch)	m/min	120	At the 4th layer
	Max. hoist rope speed(Auxiliary winch)	m/min	120	At the 4nd layer
	Boom demrricking up time	s	25
	Boom telescoping out time	s	84
	Slewing speed	r/min	0 -2.7
Driving parameters	Max. driving speed	km/h	90
	Max. gradeability	%	42
	Turning diameter	m	≤20
	Min. ground clearance	mm	260
	Oil consumption per hundred kilometers	L	28
Mass	Deadweight in driving condition	kg	32510
	Complete vehicle kerb mass	kg	32380
	Front axle load	kg	6610
	Rear axle load	kg	25900
Dimensions	Overall dimensions(L×W×H)	mm	13150×2500×3450
	Outrigger spread(L)	m	5.40
	Outrigger spread(W)	m	Fully extended:6.2, Intermediately extended:4.25
	Tail slewing radius	mm	3265
	Main boom length	m	10.7 - 42.0
	Boom angle	°	-1 - 80
	jib length	m	8.0
	Offset	°	5,17,30

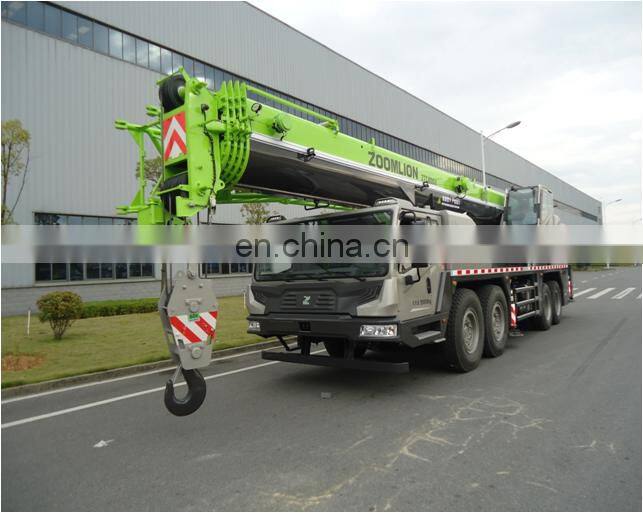

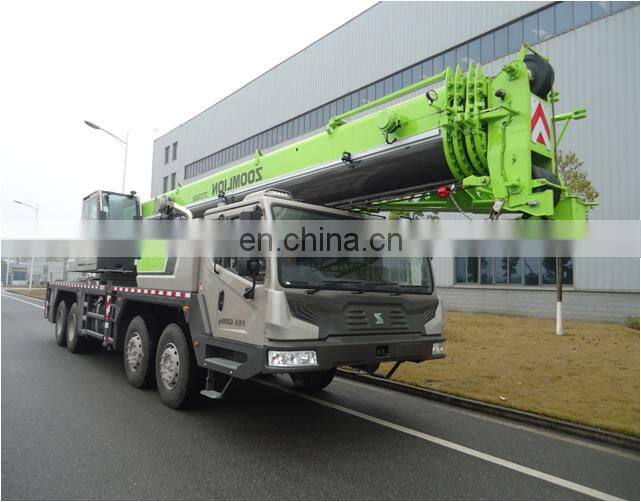

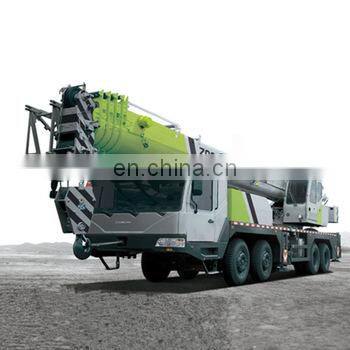

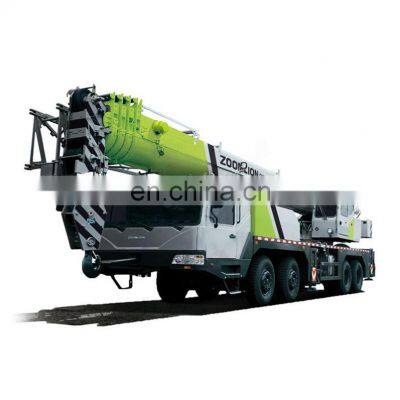

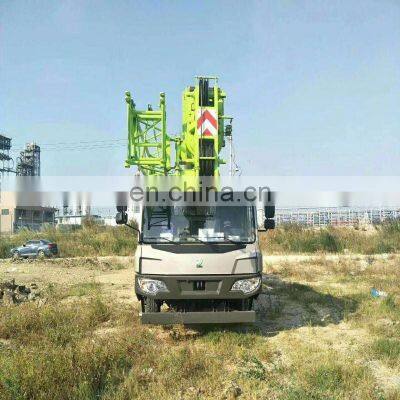

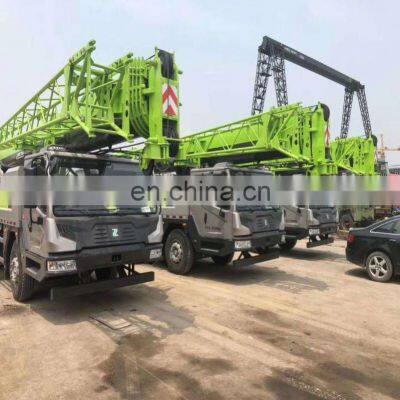

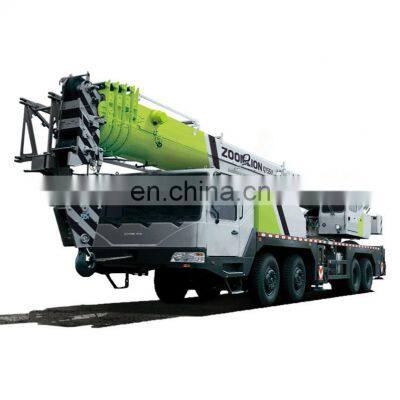

Photo for reference
