Home > Manufacturing & Processing Machinery > Crane > Overhead Crane > 12 TON Hydraulic Truck Wheel Crane Manufactured in Accordance With CE Standards for Sale.LOW PRICE!!!

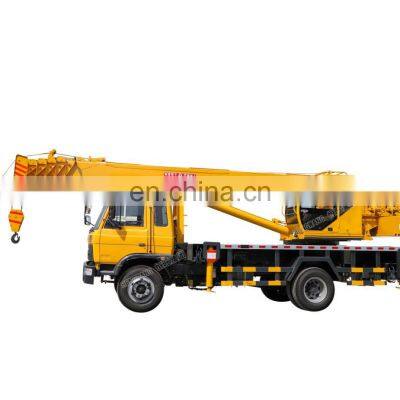

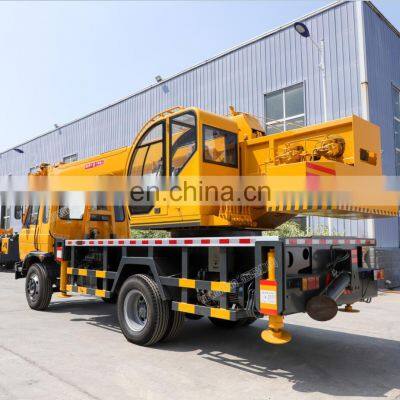

12 TON Hydraulic Truck Wheel Crane Manufactured in Accordance With CE Standards for Sale.LOW PRICE!!!
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1998
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Earth Moving Machinery Mini Truck Mounted Crane For Pick Up TruckNegotiableMOQ: 1 -
CHEAP PRICE!Self-made Mini Lifting Crane Maximum Lifting Height 14 m!NegotiableMOQ: 1
-
42m Boom Mini Hydraulic Crane Mobile Crane 16Ton Hydraulic Mobile Crane With Factory PriceNegotiableMOQ: 1
-
2020 Durable Small New Truck Crane Cheap Mini Hydraulic Truck Cranes for SaleNegotiableMOQ: 1
-
8T 10T 12T 16T Truck Mounted Crane With High Lifting HeightNegotiableMOQ: 1
Product Description
Characteristic
1. Luxury full cab and control cab with modern streamline style;
2. High power, low fuel consumption and noise meet the requirements of standard;
3. The walking board is fully covered, which is easy to work and repair on the vehicle;
4. The outrigger system adopts double-sided operation, which is convenient and practical;
5. The performance indexes of the products have basically reached the performance indexes of 50 tons of TADANO products.
Working principle
1. Luxury full cab and control cab with modern streamline style;
2. High power, low fuel consumption and noise meet the requirements of standard;
3. The walking board is fully covered, which is easy to work and repair on the vehicle;
4. The outrigger system adopts double-sided operation, which is convenient and practical;
5. The performance indexes of the products have basically reached the performance indexes of 50 tons of TADANO products.
Working principle
In the lower part of the boom, there is a rotating drum, on which the wire rope is wound. The wire rope pulls out the upper boom through the pulley on the top of the next boom, and so on. When retracting, the drum reverses to recover the wire rope, and the boom retracts under the action of self weight. This rotary drum is driven by hydraulic motor, so you can see two oil pipes, but do not use them as oil cylinders.
Specification
HWQY12T | ||||||
Model | HWQY12T | Slewing bearing | Internal tooth 1.4m | |||
Power | 95KW（130Hp） | Slewing mechanism | planetary steering | |||
Weight | 13000kg | Outrigger | 5 full hydraulic outriggers (double section) | |||
Overall dimensions | 10.2m*2.35m*3.4m | Outrigger span | 6250mm | |||
Wheelbase | 3800mm | Outrigger span (single) | 5800mm | |||
Maximum rated lifting weight | 12000kg | Protector | biliateral pilot-controlled valve | |||
Maximum lifting height | 30m、35m | working lamp | 2pcs | |||
Engine model | 4105 | Hydraulic pump | Double pump 50/40 | |||
Gearbox model | 6-speed transmission | Oil electric amphibious | 15KW IP6-pole motor 40/32 | |||
Braking System | automatically air-cut brake | Boom structure type | 7m x 6section | |||
Steering mechanism | Hydraulic Power Steering | Main hoisting mechanism | 12T winch | |||
Boom size | 520mm*350mm | Secondary hoisting mechanism | 8T winch | |||
Product Detail
