Product Description
Narrow Space Mini spider telescopic boom mounted mobile crane Crawler Crane For Sale
Spider cranes are mainly used in narrow places where large cranes cannot be deployed. It can be driven by gasoline or 380V motor and can realize wireless remote control operation. It can be used as a small aerial work truck by installing a working gondola. Its products are widely used in the hoisting of cemetery tombstones, the installation of indoor electrical equipment in substations, the installation and maintenance of pipeline laying of equipment in petrochemical plants, the installation and maintenance of glass curtain walls, the installation and maintenance of high-rise lamps and lanterns in buildings, indoor decoration and other occasions with narrow spaces.
The spider crane can avoid the problem of hydraulic cranes occupying transportation trucks. It can move on the site by itself, and even enter a small space for indoor lifting operations, making construction more convenient and feasible. At the same time, it is equipped with wireless remote control and overload alarm. Type computer control system, sound and light alarm system and other safety devices.
Technical Parameters
Technical Specification of 3ton mini Spider crane
Specifications | Stretch | ||||
Operating radius | 2.89t within 1.3m | Boom form | ：5 sections fully automatic | ||
Maximum operating radius | 8.45m | Undulation angle | |||
Maximum ground lifting height | 9.5m | Boom angle | 0-75° | ||
Winch | Rotation | ||||
Lifting speed of hook | 3.6m/min(4 times） | Rotation angle | 360° continuous rotation | ||
Winch | Wire rope | Move | |||
Diameter and length | Φ8mmX50m | Move method | Hydraulic walking | ||
Outrigger | Walking speed | Infinitely variable speed 0-2km/h | |||
Outrigger form | Breaststroke | Walking device | Synthetic rubber | ||
Outrigger stretch | The first stage is automatic, the second stage is manually adjusted | Gradeability | 30° | ||
Maximum reach | The distance between the two legs is 4.04m (width) x 3.47m (length) | Ground pressure | 36Kpa | ||
Power | Fuel tank capacity | ||||
Environmental power | Single cylinder machine or three-phase motor 3KW | Hydraulic oil tank volume | 30L | ||
Dimensions | |||||
Crane shape (length x width x height) | 2950*950*1500mm | ||||

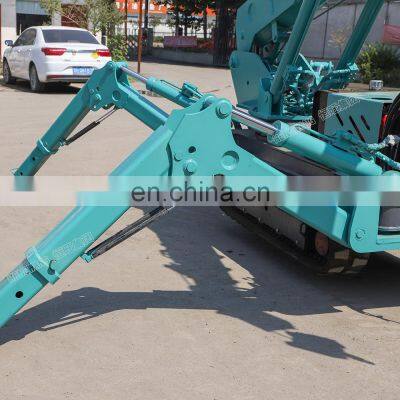

Detailed Images
Narrow Space Mini spider telescopic boom mounted mobile crane Crawler Crane For Sale
