Construction Machinery Self Loading Concrete Mixer

Construction Machinery Self Loading Concrete Mixer photo-1

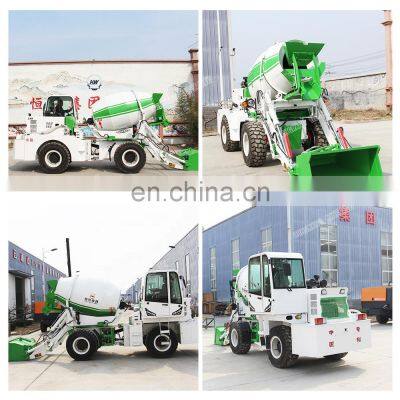

Construction Machinery Self Loading Concrete Mixer photo-2

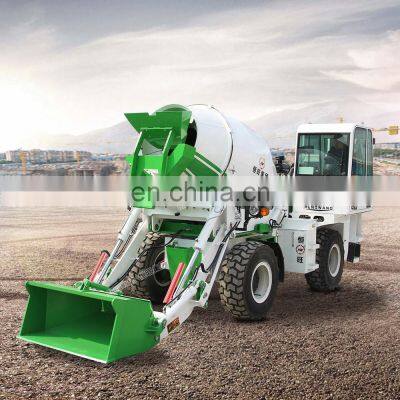

Construction Machinery Self Loading Concrete Mixer photo-3

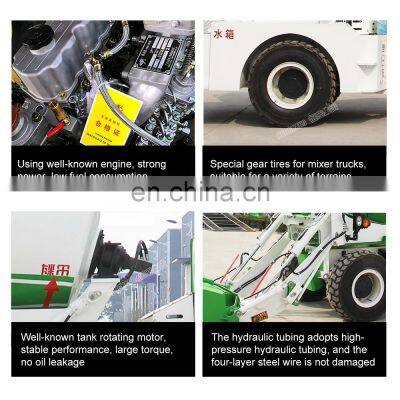

Construction Machinery Self Loading Concrete Mixer photo-4
Construction Machinery Self Loading Concrete Mixer photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1998
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Product Description
HWJB240 Concrete Mixer Truck
Mixing Capacity: 2.4m3
Rated Power: 78Kw
Machine Weight: 5550Kg


Combine concrete truck mixer with concrete mixer, self loading concrete mixer can automatic feeding, metering, and mixing to discharge, and more, it can realize the transportation and site construction operations, which greatly improves the work efficiency, reduce production cost and time.                            Construction machinery self loading concrete mixerPrice of concrete mixer transport truck hydraulic pump

Advantage:Automatic feeding self loading 1.2 CBM diesel engine concrete mixer truck

.1. Italy leading design, automatic feeding mixing system
.2. Simple and convenient operation1Concrete Mixer 3m3 MIni Concrete Mixer Truck for sale
.3. High efficiency output, save time and labor, save cost
.4. The perfect combination of mixing truck and loading car.

Technical Parameters
Specification
Actual stirring capacity
2.4m3
Rotary drum capacity
2.6m3
Degree of bias
16°
Rotational speed
0-14r/min
Direction of rotation
Feed:clockwise output:counter clockwise
Mixing drum blade
Two sets of spiral blades and four sets of auxiliary blade
Slump of concrete
70-260mm
Hydraulic power transmission system
Pump model
CBGV-4025
hydraulic motor model
BMSS-250
reducer ratio
01:10
water supply
tank capacity/water supply form
540/automatic timing water supply mechanism with automatic timing
The main performance parameters of the chassis and the engine
Engine type/displacement
CF4B68G-Z-13B2/CF4C100T-Z-13B2
Model
Straight injection type four stroke water cooled supercharged diesel engine
Rated power
55KW/2400 78KW/2400
Max torque
255/1500-1800 380/1500-1800N.m/r/min
Max running speed
24km/h
Min steering radius
5000mm
Climbing capacity
26°
Tire
23.5/70-16
Driving way
4X4
Weight
4580kg
Maximum load capacity
2800kg
whole machinery weight
7380kg
overall size (L*W*H)
6100*1850*3000mm
Recommended Hot Sales
HWJB120 Concrete Mixer Truck
HJGY-2.0 Concrete Mixer Truck
HJGY-4.5 Concrete Mixer Truck
Mixing Capacity: 1.2m3
Model: HJGY-2.0
Mixing Capacity: 4.5m3
Rated Power: 58Kw
Rated discharge capacity: 2m3
Engine: 4102/4105/4108 turbocharged
Machine Weight: 4580Kg
Power: 37KW
Tyre: 825-16
