Hengwang HWJB200 Mixer Truck Concrete Cement Mixer Truck Factory Price Good Quality Cement Mixer 2M3 Truck
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1998
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hengwang HW15 Trailer Mounted Diesel-electrical Mini Portable Concrete Mixer Hydraulic PumpNegotiableMOQ: 1 -
Hengwang HW15 Construction Diesel Engine Used Stationary Concrete PumpNegotiableMOQ: 1
-
Shandong Hengwang HWJB120 Construction Machinery Factory Direct Sale Self Loading Concrete Mixer PriceNegotiableMOQ: 1
-
Hengwang HWJB200 Hot Sell Factory Automatic Feeding Truck Mixer Machine 2cbm 180 Degree Concrete Mixer For SaleNegotiableMOQ: 1
-
Hengwang HWJB200 1.2cbm 2cbm 2.4cbm 3.5cbm Small Concrete Mixer- Cement Mixer and Concrete Truck Hot Sale In MalaysiaNegotiableMOQ: 1
Product Description
HWJB200 Self-Loading Concrete Mixer Truck Production Characteristic
* Italy Leading Design，Automatic Feeding Mixing System
* Simple And Convenient Operation
* High Efficiency Output，Save Time And Labor，Save Cost
* The Perfect Combination Of Mixing Truck And Loading Car
* 180 Degrees With A Rotary Stirring Tank，Two-Way Unloading
* Simple And Convenient Operation
* High Efficiency Output，Save Time And Labor，Save Cost
* The Perfect Combination Of Mixing Truck And Loading Car
* 180 Degrees With A Rotary Stirring Tank，Two-Way Unloading
Specification
Hengwang Self-Loading Concrete Mixer Truck | ||||
Specifications | Unit | Parameter | ||
Model | / | HWJB200 | ||
Actual stirring capacity | m³ | 2.0 | ||
Rotary drum capacity | m³ | 2.3 | ||
Degree of bias | ° | 16 | ||
Rotational speed | r/min | 10-20 | ||
Direction of rotation | Feed:clockwise output:counter clockwise | |||
Mixing drum blade | Two sets of spiral blades and four sets of auxiliary blades | |||
Slump of concrete | mm | 70-260 | ||
Hydraulic Power Transmission System | ||||
Pump model | CBGV-4025 | |||
Hydraulic motor model | BMSS-250 | |||
Reducer ratio | 01：10 | |||
Water Supply | ||||
Tank capacity/ water supply form | L | 540/ automatic timing water supply mechanism with automatic timing | ||
The main performance parameters of the chassis and the main performance parameters of the engine | ||||
Engine type / displacement | L | CF4B68G-Z-13B2/CF4C100T-Z-13B2 | ||
model | Straight injection type four stroke water cooled supercharged diesel engine | |||
Rated power | kw/r/min | 55KW/2400 78KW/2400 | ||
Max torque | N.m/r/min | 255/1500-1800 380/1500-1800 | ||
Max running speed | km/h | 24 | ||
Min steering radius | mm | 4250 | ||
Climbing capacity | % | 26 | ||
Tire | 23.5/70-16 | |||
Driving way | 4×4 | |||
Weight | kg | 4880 | ||
Maximum load capacity | kg | 3000 | ||
Whole machinery weight | kg | 6480 | ||
Overall size(L*W*H) | mm | 6700*2300*2900 | ||
The wheelbase | mm | 2250 | ||
Bucket capacity | m³ | 0.45/0.55 | ||
Mobile Self Loading Concrete Mixer Truck 2cbm Cement Mixer Machine
2.0 cbm Mixer Truck = Mixer+Loader+Carrier Efficient and convenient construction helper
1.The vehicle size is small, suitable for limited site and widely used in construction, urban construction, tunnel , airport, seaport, high speed rail site and so on.
2. High strength steel plate, enhance vehicle load capacity. the vehicle with high stability.
3. Rolling ring and mixing drum use 16mm overall forging normalizing manufacturer and processing.
4.Mixing blade with varying pitch design, and simplify the feeding device, ensure the speed faster and mixing performance better.
Product Details

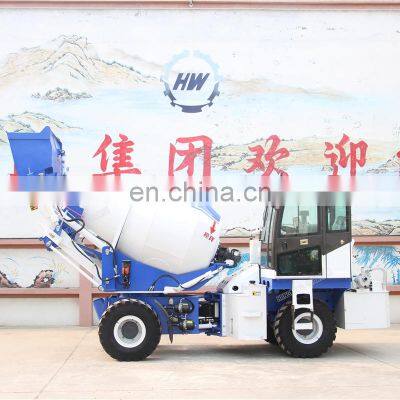

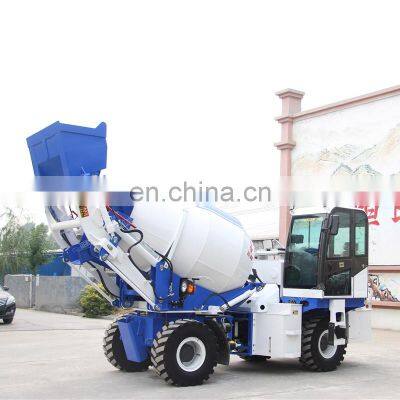

Detailed Images of concrete mixer truck
Detailed Images of concrete mixer truck
Detailed Images of concrete mixer truck
FeedBack and application
Concrete mixer truck can meet kinds of working condition.
