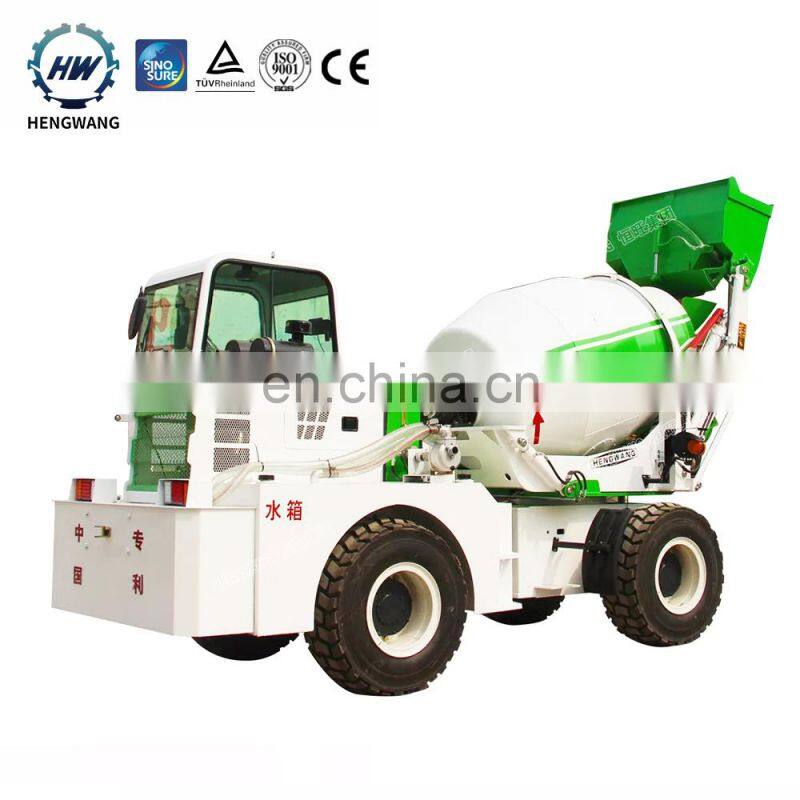

Concrete Mixer Truck Self Loading Cement Mixer Truck Small Compact Mixer Truck

Shandong Hengwang Group Co., Ltd.
Concrete Mixer Truck Self Loading Cement Mixer Truck Small Compact Mixer Truck thumbnail-1
Concrete Mixer Truck Self Loading Cement Mixer Truck Small Compact Mixer Truck thumbnail-2
Concrete Mixer Truck Self Loading Cement Mixer Truck Small Compact Mixer Truck thumbnail-3
Concrete Mixer Truck Self Loading Cement Mixer Truck Small Compact Mixer Truck thumbnail-4
Concrete Mixer Truck Self Loading Cement Mixer Truck Small Compact Mixer Truck thumbnail-5
Concrete Mixer Truck Self Loading Cement Mixer Truck Small Compact Mixer Truck photo-1
Concrete Mixer Truck Self Loading Cement Mixer Truck Small Compact Mixer Truck photo-2
Concrete Mixer Truck Self Loading Cement Mixer Truck Small Compact Mixer Truck photo-3
Concrete Mixer Truck Self Loading Cement Mixer Truck Small Compact Mixer Truck photo-4
Concrete Mixer Truck Self Loading Cement Mixer Truck Small Compact Mixer Truck photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1998
Annual Export Value:
Below US$1 Million
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Related Products
Hot Sale Model

HWJB120 Concrete Mixer Truck

Mixing Capacity: 1.2m3
Rated Power: 58Kw
Machine Weight: 4580Kg

HWJB240 Concrete Mixer Truck

Mixing Capacity: 2.4m3
Rated Power: 78Kw
Machine Weight: 5550Kg

HWJB350 Concrete Mixer Truck

Mixing Capacity: 3.5m3
Rated Power: 95Kw
Machine Weight: 7500Kg

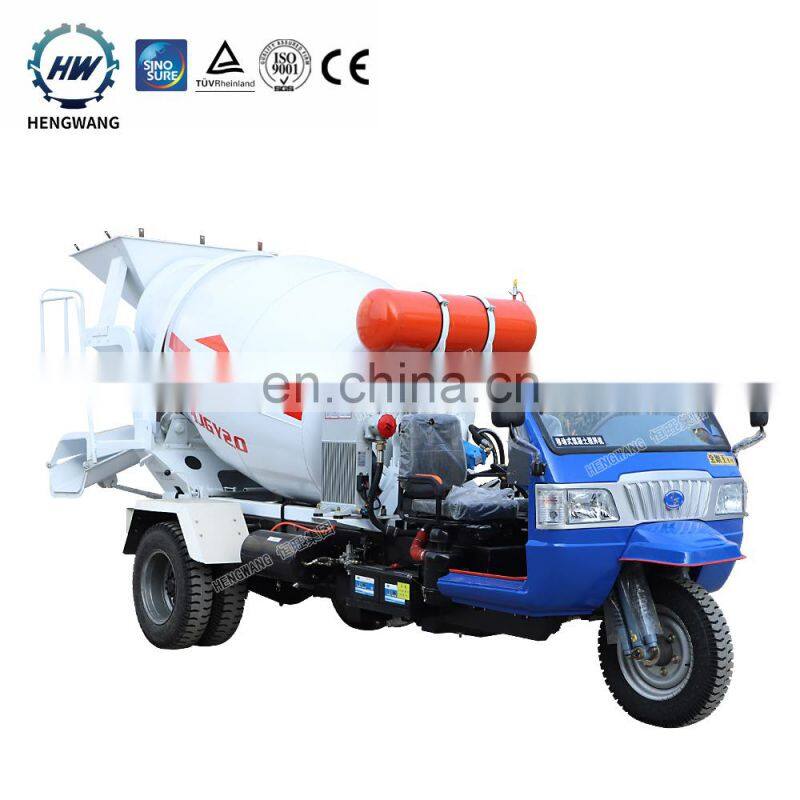

HW1.5/HW2.5 Concrete Mixer Truck

Mixing Capacity: 1.5m3/2.5m3
Rated Power: 32HP
Machine size: 5300*1850*2650mm
Product Description
HWJB200 Self-Loading Concrete Mixer Truck Production Characteristic

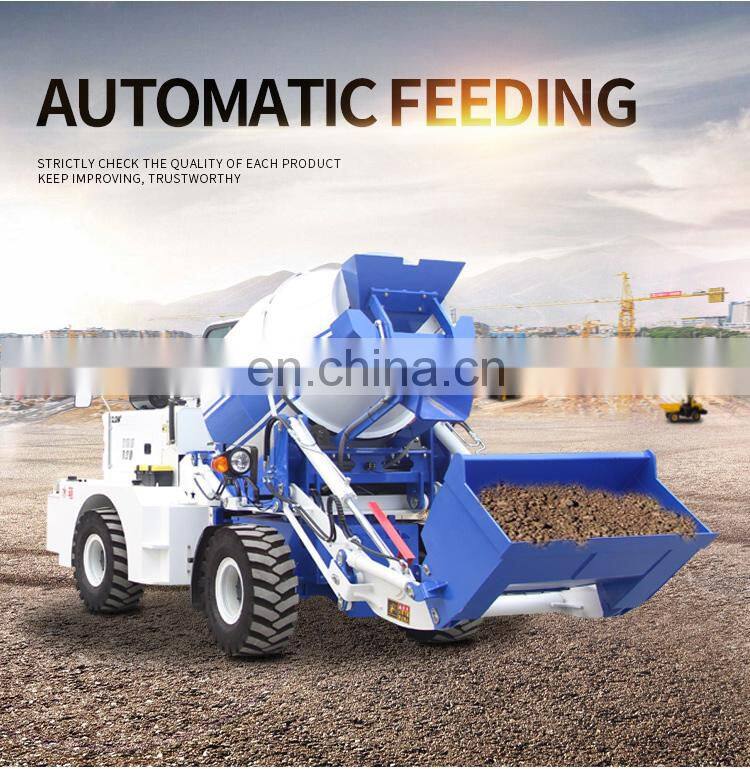

* Italy Leading Design，Automatic Feeding Mixing System
* Simple And Convenient Operation
* High Efficiency Output，Save Time And Labor，Save Cost
* The Perfect Combination Of Mixing Truck And Loading Car
* 180 Degrees With A Rotary Stirring Tank，Two-Way Unloading
Specification
Hengwang Self-Loading Concrete Mixer Truck
Model
/
HWJB120
HWJB200
HWJB240
HWJB350
Actual stirring capacity
m³
1.2
2.0
2.4
3.5
Rotary drum capacity
m³
1.4
2.3
2.6
3.6
Rotational speed
r/min
0-14
10-20
10-20
10-20
Direction of rotation

Feed:clockwise output:anticlockwise
Feed:clockwise output:anticlockwise
Feed:clockwise output:anticlockwise
Feed:clockwise output:anticlockwise
Tank capacity/ water supply form
L
540/automatic timing water
540/automatic timing water
540/automatic timing water
540/automatic timing water
Rated power
kw
58KW/2400
76KW/2400
78KW/2400
95KW/2400
Max running speed
km/h
24
24
24
24
Min steering radius
mm
5000
4250
4500
4500
Climbing capacity
%
26
26
26
26
Tire

23.5/70-16
23.5/70-16
16/70-20
16/70-20
Weight
kg
4580
4880
5550
7500
Maximum load capacity
kg
2800
3000
5600
7800
Whole machinery weight
kg
7380
6480
11150
15300
Overall size(L*W*H)
mm
6100*1850*3000
6700*2300*2900
6350*2510*2850
6650*2600*3200
Bucket capacity
m³
0.4
0.45
0.5
0.6

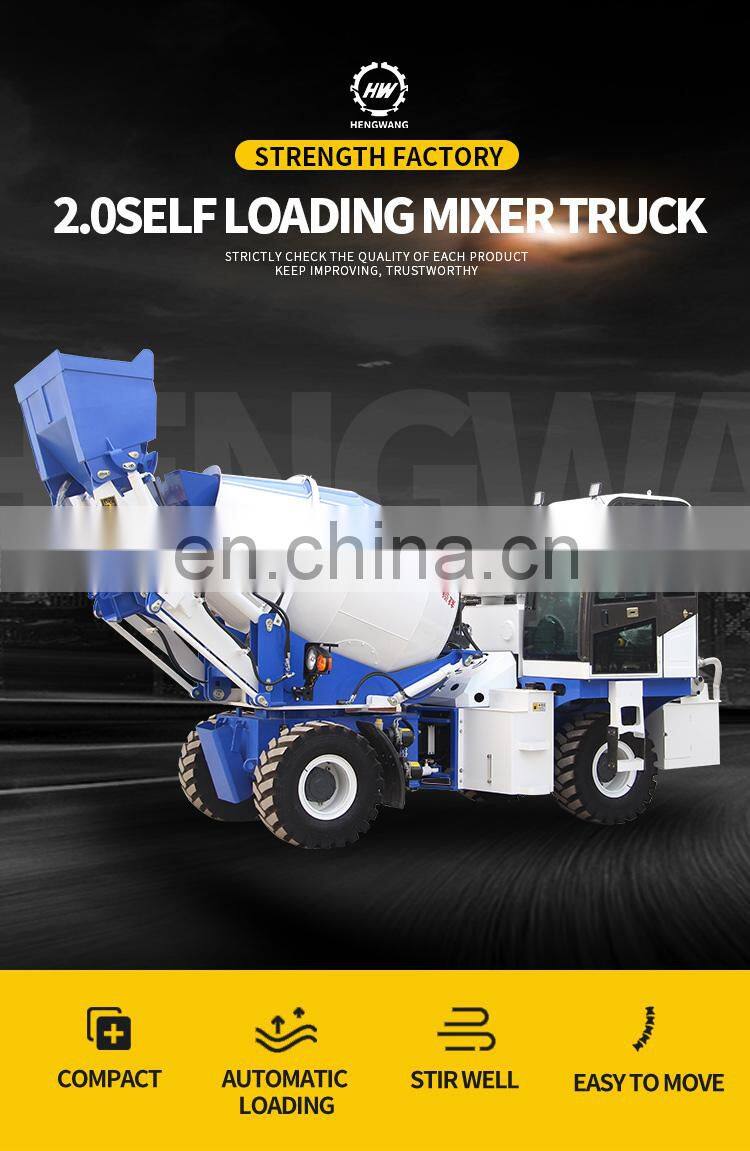

Mobile Self Loading Concrete Mixer Truck 2cbm Cement Mixer Machine 2.0 cbm Mixer Truck = Mixer+Loader+Carrier Efficient and convenient construction helper 1.The vehicle size is small, suitable for limited site and widely used in construction, urban construction, tunnel , airport, seaport, high speed rail site and so on. 2. High strength steel plate, enhance vehicle load capacity. the vehicle with high stability. 3. Rolling ring and mixing drum use 16mm overall forging normalizing manufacturer and processing. 4.Mixing blade with varying pitch design, and simplify the feeding device, ensure the speed faster and mixing performance better.
Product Details

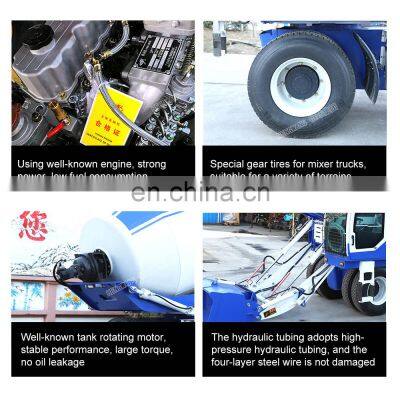

Detailed Images of concrete mixer truck
Detailed Images of concrete mixer truck
Detailed Images of concrete mixer truck
FeedBack and application
Concrete mixer truck can meet kinds of working condition.
