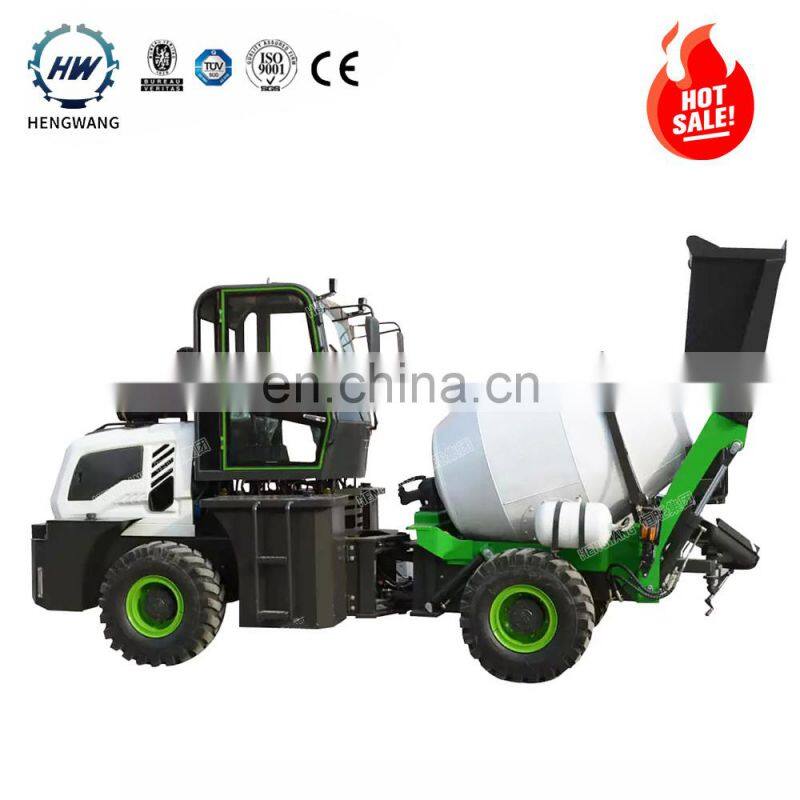

Hengwang HW240 2.4m3 Large Capacity Mobile Price Self Loading Mini Small Manual Rotating Concrete Mixer
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1998
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hengwang HWJB350 High Quality Price Durable Automatic Self Loading 4 Cubic Meters Mini Concrete Mixer TruckNegotiableMOQ: 1 -
Mixing Truck And Loading Car 2.0CBM Mini Truck Concrete Mixer Cement Mixer With Loading HopperNegotiableMOQ: 1
-
Bridge Construction 76KW Vertical Type Mini Truck Mounted Self Loading Cement Small Mixer TruckNegotiableMOQ: 1
-
2021 Bridge Construction Auto Feeding Mixer Truck Model 2.0CBM Truck Mobile Big Concrete MixerNegotiableMOQ: 1
-
6mm Thick Mixer Tank China Engineering Concrete Mixer Truck Manufacturers Heavy Duty Mixer TruckNegotiableMOQ: 1
To customers
1.We are factory in Construction Machines for more than 20 years with CE,ISO ,BV,TUV;
2.Machine could be equipped with EPA ,Euro 5 Engine ;
3.Specialized After-Sale Service Team for 24h abroad site serving
4. 3 Overseas Spare Parts Center ,guarantee the sufficient spare parts locally. Contact to Inquire
2.Machine could be equipped with EPA ,Euro 5 Engine ;
3.Specialized After-Sale Service Team for 24h abroad site serving
4. 3 Overseas Spare Parts Center ,guarantee the sufficient spare parts locally. Contact to Inquire
Contact to Inquire
Hot Sale Model
Model | HWJB120 |
Mixing Capacity | 1.2m³ |
Rated Power | 55kW |
Machine Weight | 4580Kg |
Dimensions | 6100*1850*3000mm |
Model | HWJB200 |
Mixing Capacity | 2.0m³ |
Rated Power | 78kW |
Machine Weight | 5550Kg |
Dimensions | 6350*2510*2850mm |
Model | HWJB350 |
Mixing Capacity | 3.5m³ |
Rated Power | 95kW |
Machine Weight | 7500Kg |
Dimensions | 6650*2600*3200mm |
Product description

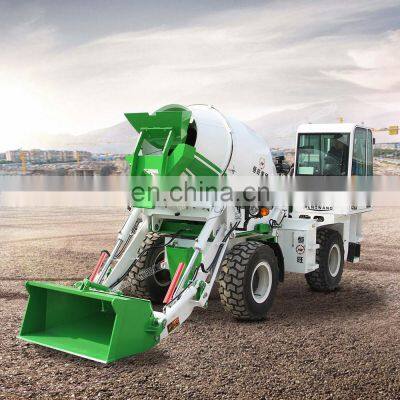

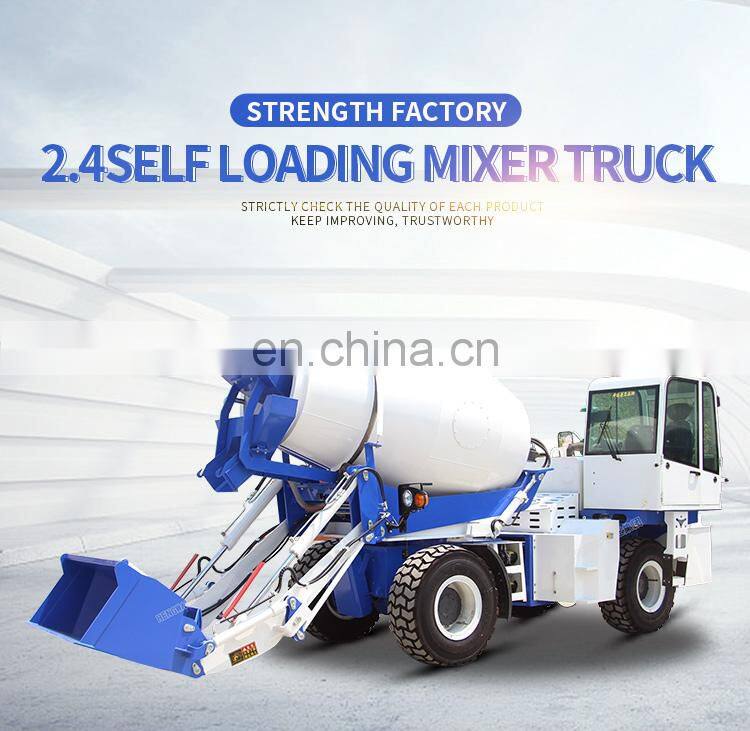

Hengwang HW240 2.4m3 Large Capacity Mobile Price Self Loading Mini Small Manual Rotating Concrete Mixer
HWJB240 Concrete Mixer Truck Production Characteristic

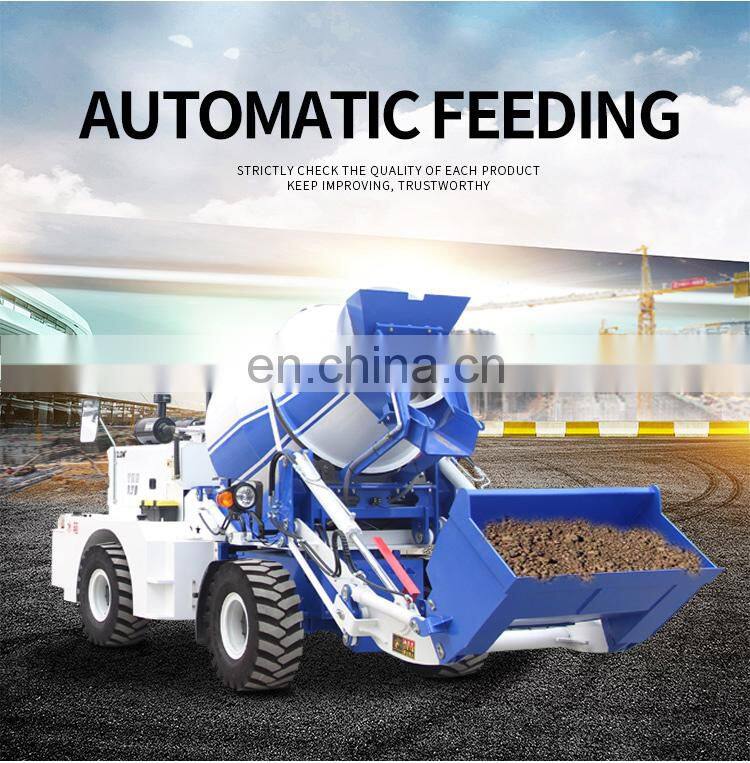

* Italy Leading Design，Automatic Feeding Mixing System
* Simple And Convenient Operation
* High Efficiency Output，Save Time And Labor，Save Cost
* The Perfect Combination Of Mixing Truck And Loading Car
* 180 Degrees With A Rotary Stirring Tank，Two-Way Unloading
* Italy Leading Design，Automatic Feeding Mixing System
* Simple And Convenient Operation
* High Efficiency Output，Save Time And Labor，Save Cost
* The Perfect Combination Of Mixing Truck And Loading Car
* 180 Degrees With A Rotary Stirring Tank，Two-Way Unloading
Technical Parameters
Specification | Unit | parameter | ||
Modle | HWJB240 | |||
Actual mixing volume | m³ | 2.2 | ||
Mixing drum capacity | m³ | 2.4 | ||
Bucket capacity | m³ | 0.4 | ||
Tilt angle | ° | 20 | ||
Rotation speed | r/min | 12-24 | ||
Direction of rotation | Feeding: clockwise Discharging: counter clockwise | |||
Mixing drum blade | Two sets of spiral blades and four sets of auxiliary blades | |||
Concrete slump | mm | 70-260 | ||
Hydraulic Power Transmission System | ||||
Oil pump model | R1-F50/50 BT6HL | |||
Motor model | MS30-160 | |||
Speed ratio of reducer | 1:24 | |||
Water Supply | ||||
Water tank capacity/water supply form | L | 540/self-contained automatic timing and automatic regular water supply mechanism | ||
The main performance parameters of the chassis and the engine | ||||
Engine model/displacement | L | YN38GBZ | ||
form | Direct injection four-stroke water-cooled supercharged diesel engine | |||
rated power | kw/r/min | 76kw/2400 | ||
Maximum torque | N.m/r/min | 380/1500-1800 | ||
Maximum form speed | km/h | 24 | ||
Minimum turning radius | mm | 4500 | ||
Gradeability | ％ | 50 | ||
Tires | 8.25R16LT | |||
Drive form | 4×4 | |||
Vehicle equipment quality | kg | 6640 | ||
Maximum loading quality | kg | 5600 | ||
Maximum total vehicle mass | kg | 12240 | ||
Wheelbase/wheelbase | mm | 2100/2900 | ||
Overall dimensions of the vehicle (length*width*height) | mm | 5650×2850×2770 | ||
Details
Note :General application, any special requirements, please consult us.
Packing and Shipping
Note :1 units HWJB240 is in one 40 ft Container and have some space for small machines
